Regal Beloit B625 epc 0.75 hp polaris booster pump motor

Product Description

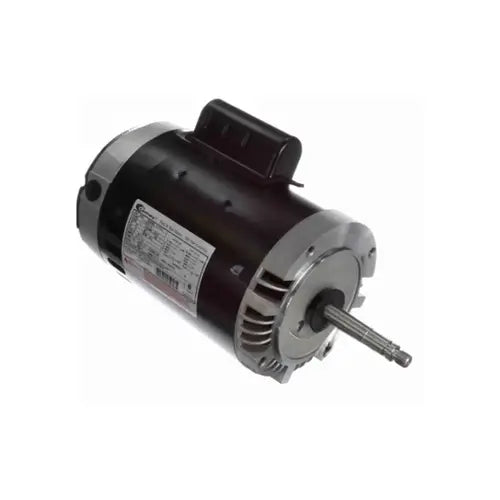

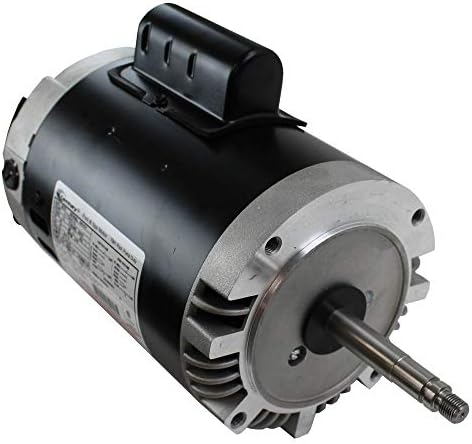

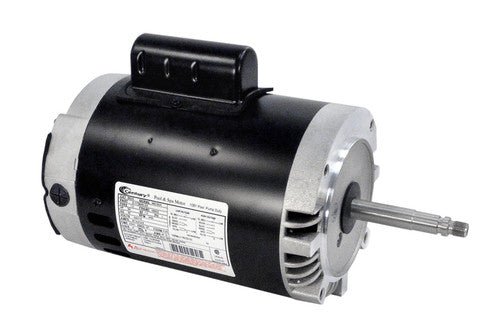

The REGAL BELOIT B625 is a replacement motor for Polaris booster pumps, featuring a C-face mount with 4 threaded bolt holes. This 0.75 HP motor is designed for pool cleaner pumps, operating at 3450 RPM with a voltage of 115/230V. It has a threaded shaft and is UL 1081 and CSA certified.

• Replacement motor for Polaris booster pump
• C-face mount
• 4 threaded bolt holes on face of motor

Product Highlights

Replacement motor for Polaris booster pumps with C-face mount and threaded shaft.

Product Information

Standard Information

• Brand: REGAL BELOIT
• Manufacturer Part Number: B625
• Country of Origin: China

Technical Specifications

• Brand: Regal Beloit
• Horsepower: 0.75 Horsepower
• Speed: 3450 RPM
• VoltageRating: 115/230 V
• DutyCycle: Continuous
• MotorDesign: Capacitor Start
• Frame: 56CZ
• FullLoadAmps: 6.4/12.8 A
• ServiceFactor: 1.50
• StandardsApprovals: UL 1081 Approved, CSA Certified
• AmbientTemperature: 40 deg C
• ShaftDesign: Threaded
• MotorShaftRotation: CCWPE
• Phase: 1-Phase
• FlangeMaterial: Aluminum
• ShaftMaterial: 303 Stainless Steel
• MountingPosition: Horizontal
• MountingType: C-Face, No Base
• InsulationClass: B
• EfficiencyGroup: Standard
• ShaftDiameter: 5/8 Inch
• FrequencyRating: 60 Hz
• OverallLength: 14.03 Inch
• Diameter: 6-1/2 Inch
• ShaftLength: 3-3/4 Inch
• MotorThermalProtection: Auto
• Bearing Type: Ball
• EnclosureDesign: Open Dripproof
• Application: Pool
• Motor Enclosure Type: Open Drip Proof
• Motor Frame Size: 56CZ
• Motor Shaft Rotation: Counterclockwise Pulley End
• Amps High Speed: 12.8
• Material: Aluminum, Stainless Steel
