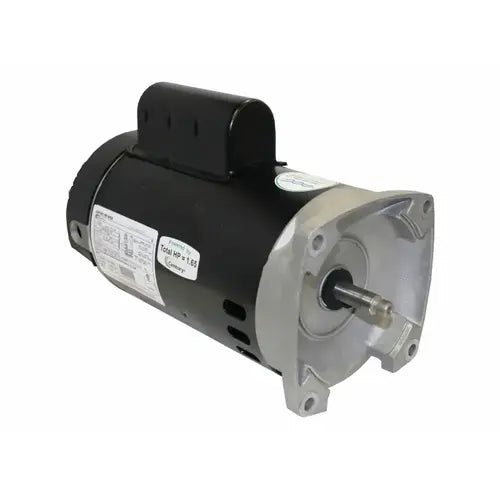

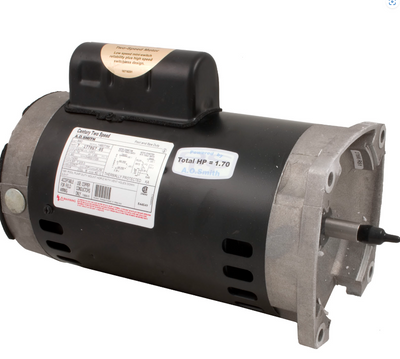

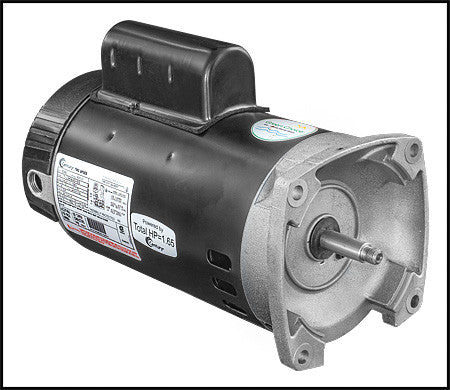

Regal Beloit B2982 Pump Motor 1 HP 2-Speed REPLACES B982

Product Description

The REGAL BELOIT B2982 is a 1 HP, 2-speed pump motor designed for pool and spa applications. It features high and low-speed operation and an open dripproof enclosure. This motor is a single-phase, permanent split capacitor type with stainless steel shafts. It operates at 230V and 3450/1725 RPM.

• Features ball bearings for smooth operation.
• Operates with high efficiency at both high and low speeds.
• Designed with an open dripproof enclosure.

Product Highlights

This 2-speed motor is suitable for pool and spa pumps, offering efficient performance and durability with its stainless steel shaft and ball-bearing construction.

Product Information

Standard Information

• Brand: REGAL BELOIT
• Manufacturer Part Number: B2982
• Country of Origin: United States

Technical Specifications

• Phase: 1
• Output HP: 1.0/ .12 Hp
• Output KW: 0.75 kW
• Voltage: 230 V
• Speed: 3450/1725 rpm
• Service Factor: 1.65
• Frame: Y56Y
• Enclosure: Open Drip Proof
• Thermal Protection: Thermally Protected
• Ambient Temperature: 50 °C
• Frequency: 60 Hz
• Current: SF 7.4/1.4 A
• Duty: Continuous
• Insulation Class: F
• Number of Speeds: 2
• Electrical Type: Psc Low Speed, Cap Start/Cap Run High Speed
• Starting Method: Across The Line
• Poles: 2/4
• Rotation: Counterclockwise Pump End
• Mounting: Round
• Motor Orientation: Horizontal
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Type: 1/2 Thread
• Overall Length: 13.40 in
• Frame Length: 9.00 in
• Shaft Diameter: 0.625 in
• Shaft Extension: 0.91 in
• RPM: 3450/1725
• Frame Size: Y56Y
• Type: Full-Rated, CXCP
• Bearing Type: Ball
• FinishColor: Black
• FullLoadAmps: 7.4/1.4 A
• HP: 1/0.12
• Item: Pool and Spa Pump Motor
• MountingType: C-Face
• SubBrand: Century®
• EnclosureDesign: Open Dripproof
• ShaftDesign: Threaded
• ShaftLength: 1.875 Inch
• ShaftMaterial: 303 Stainless Steel
• DutyCycle: Continuous
• MotorThermalProtection: Auto
• EfficiencyGroup: High
• MotorDesign: Capacitor Start/Run on Low Speed, PSC on High Speed
• FlangeType: Square
• MotorShaftRotation: CCWPE
• Motor Type: Pool
• Motor Amperage: 7.4A/1.4A
• Motor Shaft Type: Threaded
• Motor Style: Square Flange
• Capacitor On Top: Yes
• Manufacturer: AO Smith/Century/Regal Beloit
