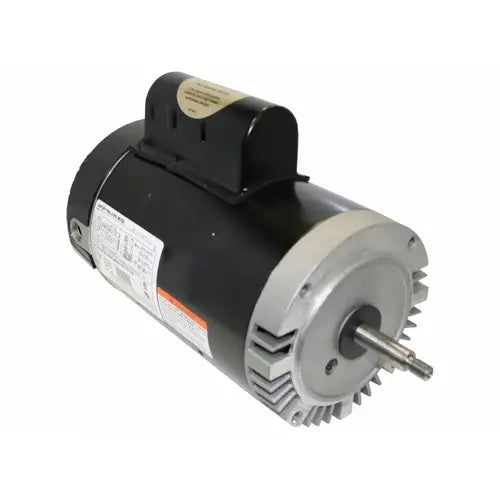

Regal Beloit B2979 2 HP 2 Speed 230V Motor

Product Description

The REGAL BELOIT B2979 is a 2 HP, 2-speed motor operating at 230V and 60 Hz. It features automatic overload protection and a service factor of 1.20. Designed with a C-Face mount and a round body without a base, this motor is non-reversible with CCW rotation facing the shaft.

• Automatic Overload Protection
• C-Face Mount, Round Body-no base
• Non-Reversible - CCW Rotation facing the shaft

Product Highlights

This 2 HP motor is designed for pool and spa pumps, offering two speeds and reliable performance.

Product Information

Standard Information

• Brand: REGAL BELOIT
• Manufacturer Part Number: B2979
• Country of Origin: China

Technical Specifications

• Voltage: 230 Volts
• Horsepower: 2 Horsepower
• Manufacturer: REGAL BELOIT AMERICA - EPC
• Item model number: B2979
• Phase: 1-Phase
• Output HP: 2.0/.25 Hp
• Output KW: 1.5 kW
• Speed: 3450/1725 rpm
• Service Factor: 1.2
• Frame: Y56J
• Enclosure: Drip Proof
• Thermal Protection: Thermally Protected
• Ambient Temperature: 50 °C
• Frequency: 60 Hz
• Current: SF 10.0/2.1 A
• Duty: Continuous
• Insulation Class: F
• UL: Recognized
• CSA: Y
• Number of Speeds: 2
• Electrical Type: Psc Low Speed, Cap Start/Cap Run High Speed
• Poles: 2/4
• Rotation: Clockwise
• Mounting: Round
• Motor Orientation: Horizontal
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Type: 7/16 Threaded
• Overall Length: 13.55 in
• Frame Length: 8.25 in
• Shaft Diameter: 0.625 in
• Shaft Extension: 2.604 in
• VoltageRating: 230 V
• DutyCycle: Continuous
• MotorDesign: Capacitor Start/Run on Low Speed, PSC on High Speed
• FullLoadAmps: 11.0/1.6 A
• Brand: Regal Beloit
• SubBrand: Century®
• StandardsApprovals: UL 1081 Approved, UL Recognized (E25022), CSA Certified (LR43341), Meets California Energy Commission Appliance Regulations 2008
• RPM: 3450/1725
• ShaftDesign: Threaded
• MotorShaftRotation: CCWPE
• FlangeMaterial: Aluminum
• ShaftMaterial: 303 Stainless Steel
• MountingType: C-Face, No Base
• EfficiencyGroup: Standard
• HP: 2/0.25
• Type: Full-Rated, CXCP
• ShaftLength: 2-9/16 Inch
• MotorThermalProtection: Auto
• Bearing Type: Ball
• EnclosureDesign: Open Dripproof
• MPN: B2979
• UPC: 747925104795
