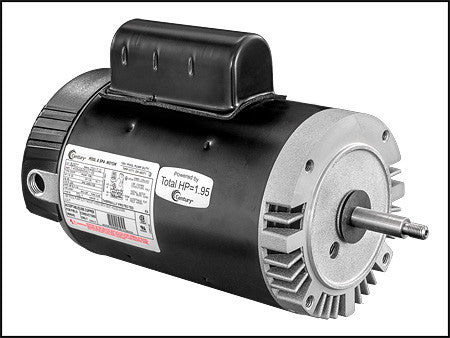

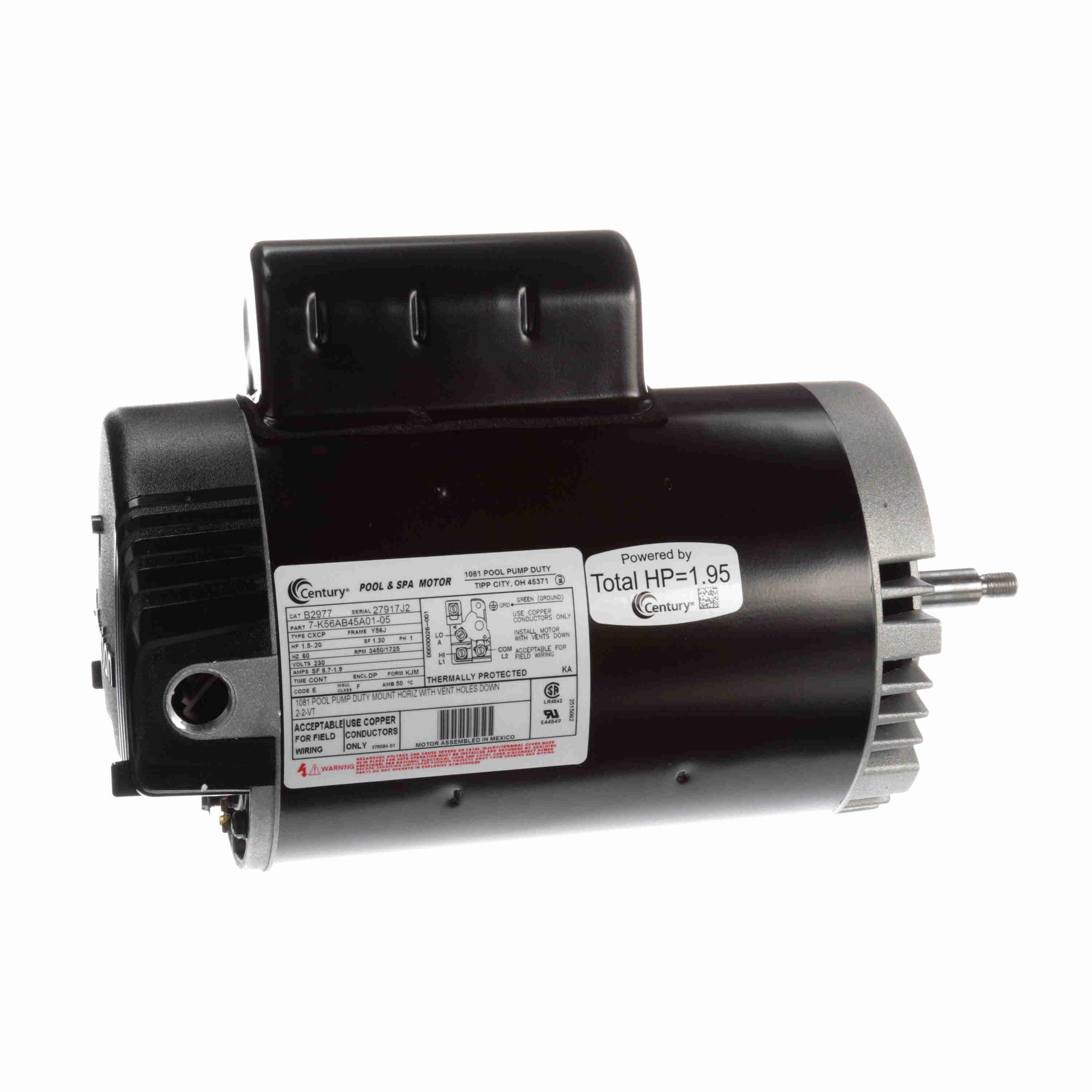

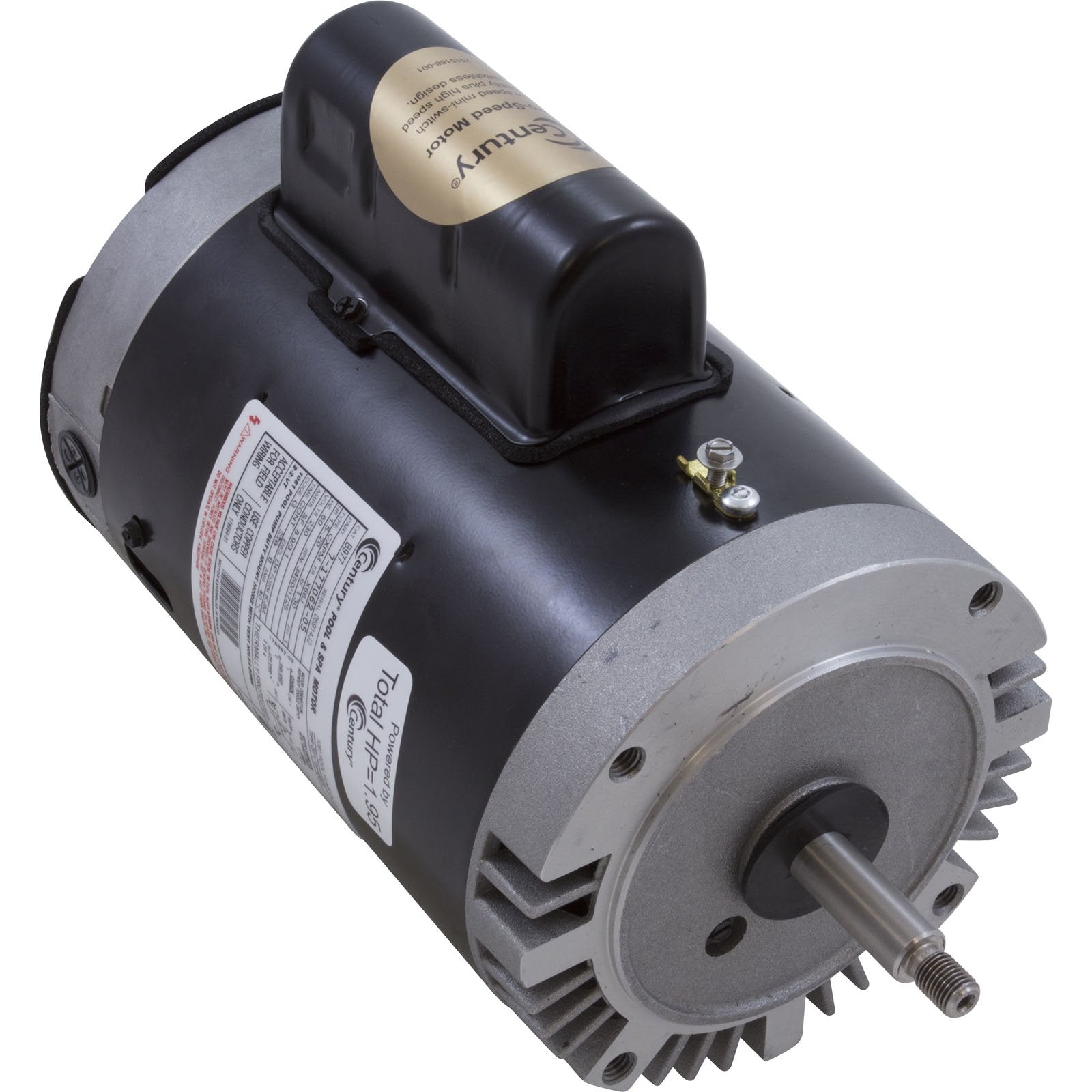

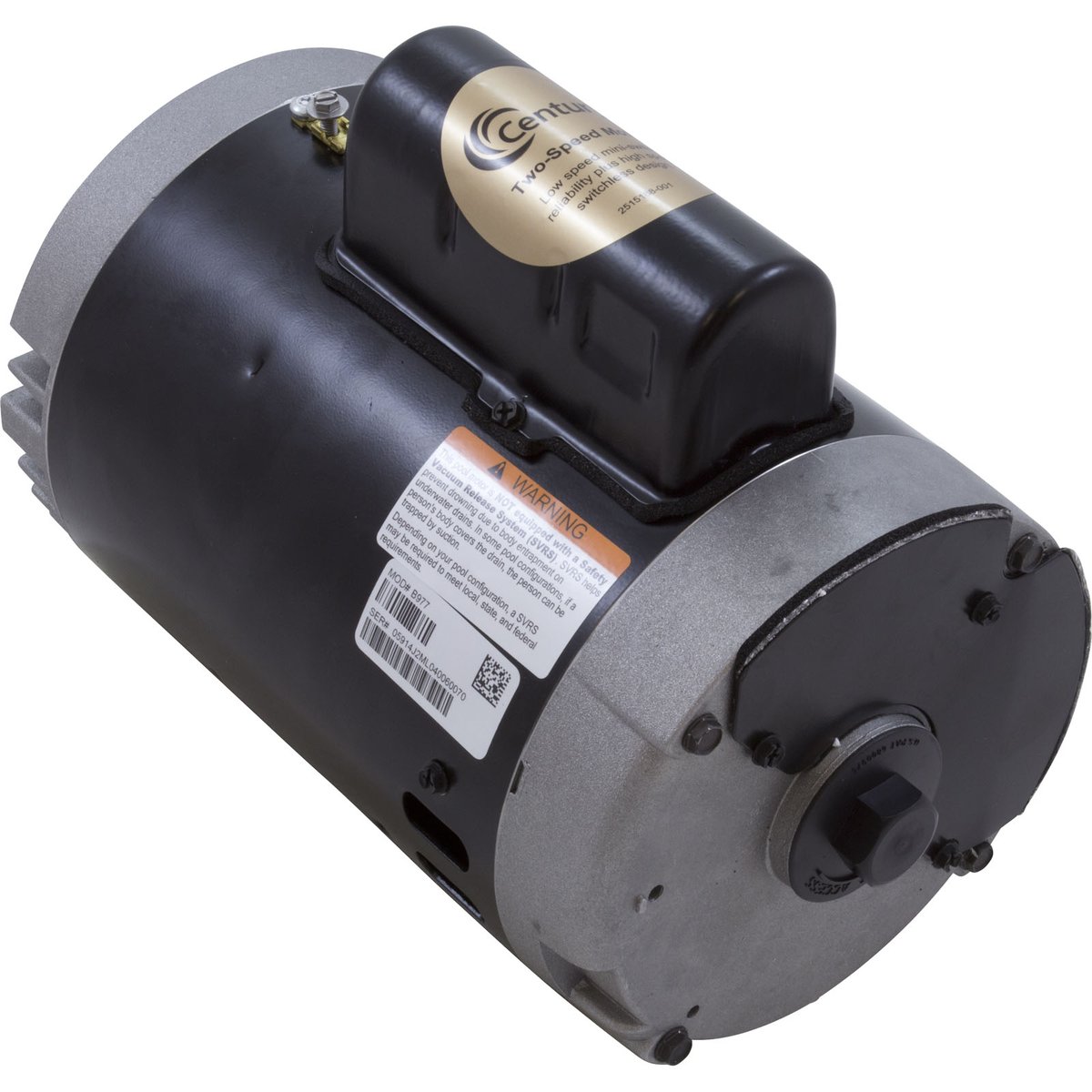

Regal Beloit B2977 Century Pool Pump Motor 1.5-.20 HP 230 V

Product Description

The REGAL BELOIT B2977 Century Pool Pump Motor is rated at 1.5-.20 HP, operates at 230 V, and has a speed of 3450/1725 RPM. This motor features a Y56J frame and a drip-proof enclosure. It is thermally protected and designed for continuous duty. The motor is suitable for pool pump applications.

• Features sealed ball bearings for smooth operation
• Two-speed functionality for versatile performance
• Energy-efficient design for reduced power consumption

Product Highlights

This Century pool pump motor is energy efficient and has two-speed functionality. It is designed with sealed ball bearings and a threaded shaft.

Product Information

Standard Information

• Brand: REGAL BELOIT
• Manufacturer Part Number: B2977
• Country of Origin: Mexico

Technical Specifications

• Phase: 1
• Output HP: 1.5-.20 Hp
• Output KW: 1.1 kW
• Voltage: 230 V
• Speed: 3450/1725 rpm
• Service Factor: 1.3
• Frame: Y56J
• Enclosure: Drip Proof
• Thermal Protection: Thermally Protected
• Ambient Temperature: 50 °C
• Frequency: 60 Hz
• Current: SF 8.7-1.9 A
• Duty: Continuous
• Insulation Class: F
• UL: Recognized
• CSA: Y
• Number of Speeds: 2
• Electrical Type: Psc Low Speed, Cap Start/Cap Run High Speed
• Poles: 2/4
• Rotation: Clockwise
• Mounting: Round
• Motor Orientation: Horizontal
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Type: 7/16 Threaded
• Overall Length: 13.05 in
• Frame Length: 8.00 in
• Shaft Diameter: 0.625 in
• Shaft Extension: 2.57 in
• Motor Type: Pool
• Motor Amperage: 8.9A/3.1A
• Horsepower: 1.5hp
• Motor Shaft Type: Threaded
• Motor Style: C-Face
• Capacitor On Top: Yes
