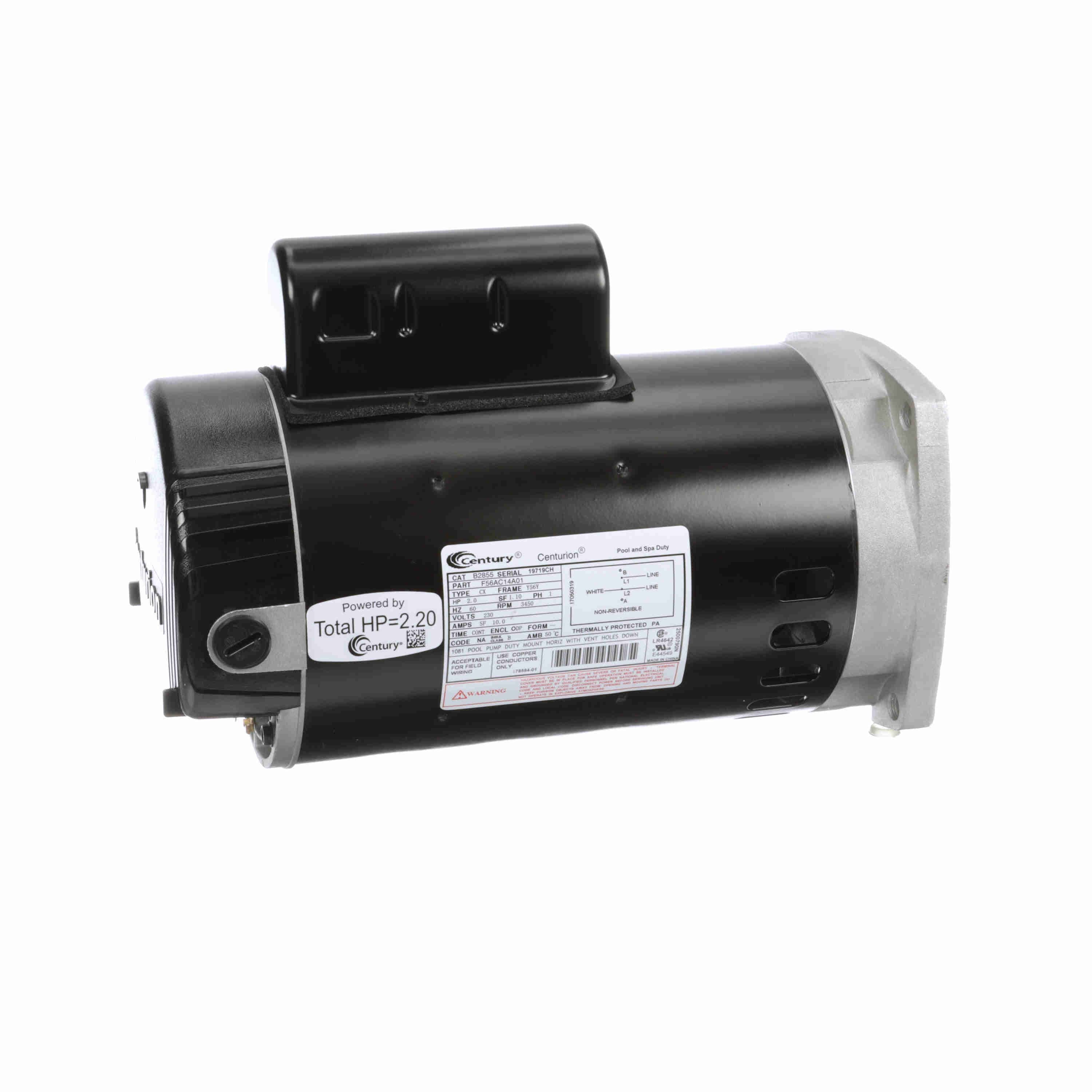

Regal Beloit B2855 2 HP ODP Rated Square Flange Single Phase Pool Motor REPLACEMENT B855

Product Description

The Regal Beloit B2855 is a 2 HP single-phase pool pump motor designed for smooth operation of in-ground and above-ground swimming pools. This motor is part of the Century pool and spa pump motors with Square Flange series. It features a permanent split capacitor and a switchless design. The motor has automatic overload protection and a nonreversible counterclockwise pump end.

• Single-phase pump motor with Square Flange series
• Features a permanent split capacitor and switchless design
• Stainless steel threaded shaft with sealed ball bearing, tolerating a 50-degree Celsius ambient temperature

Product Highlights

This 230V, 3450 RPM motor includes a 56Y frame, open dripproof ball bearings, and a stainless steel threaded shaft for corrosion protection.

Product Information

Standard Information

• Brand: REGAL BELOIT
• Manufacturer Part Number: B2855
• Country of Origin: China

Technical Specifications

• Output HP: 2 Hp
• Frequency: 60 Hz
• Voltage: 230 V
• Speed: 3450 rpm
• Ampere: 10A
• Phase: 1
• Output KW: 1.5 kW
• Service Factor: 1.1
• Frame: 56Y
• Enclosure: Open Drip Proof
• Thermal Protection: Thermally Protected
• Ambient Temperature: 50 °C
• Duty: Continuous
• Insulation Class: B
• UL: Recognized
• CSA: Y
• CE: N
• Number of Speeds: 1
• Electrical Type: Permanent Split Capacitor, Single Or Dual Voltage
• Starting Method: Across The Line
• Poles: 2
• Rotation: Counterclockwise Pump End
• Mounting: Round
• Motor Orientation: Horizontal
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Type: 1/2 Thread
• Overall Length: 13.46 in
• Frame Length: 9.00 in
• Shaft Diameter: 0.625 in
• Shaft Extension: 0.91 in
• Brand: Regal Beloit
• Model Name: B2855 B855 177897 182115 SO120U
• Material: Metal
• Wattage: 1.5 KW
