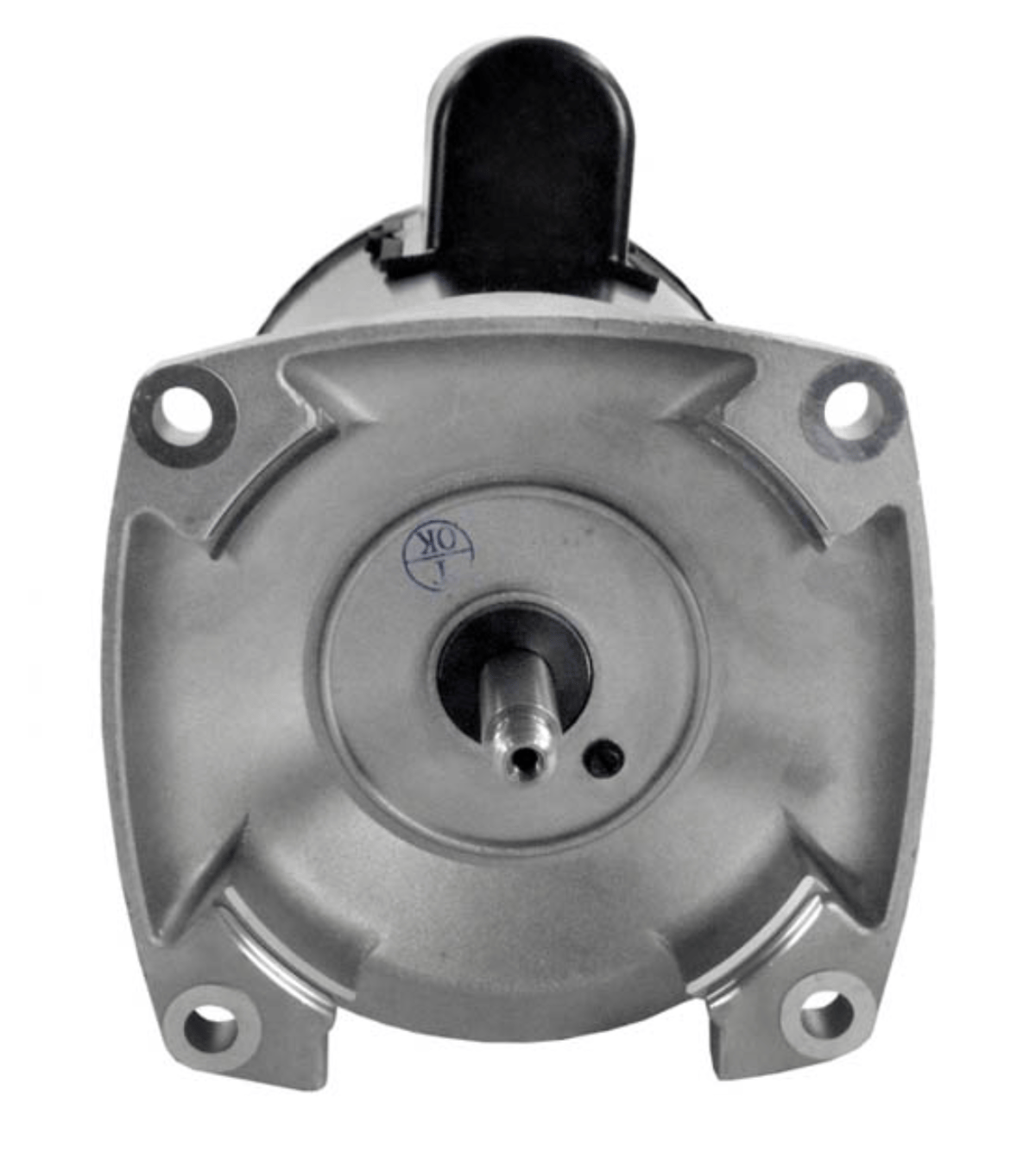

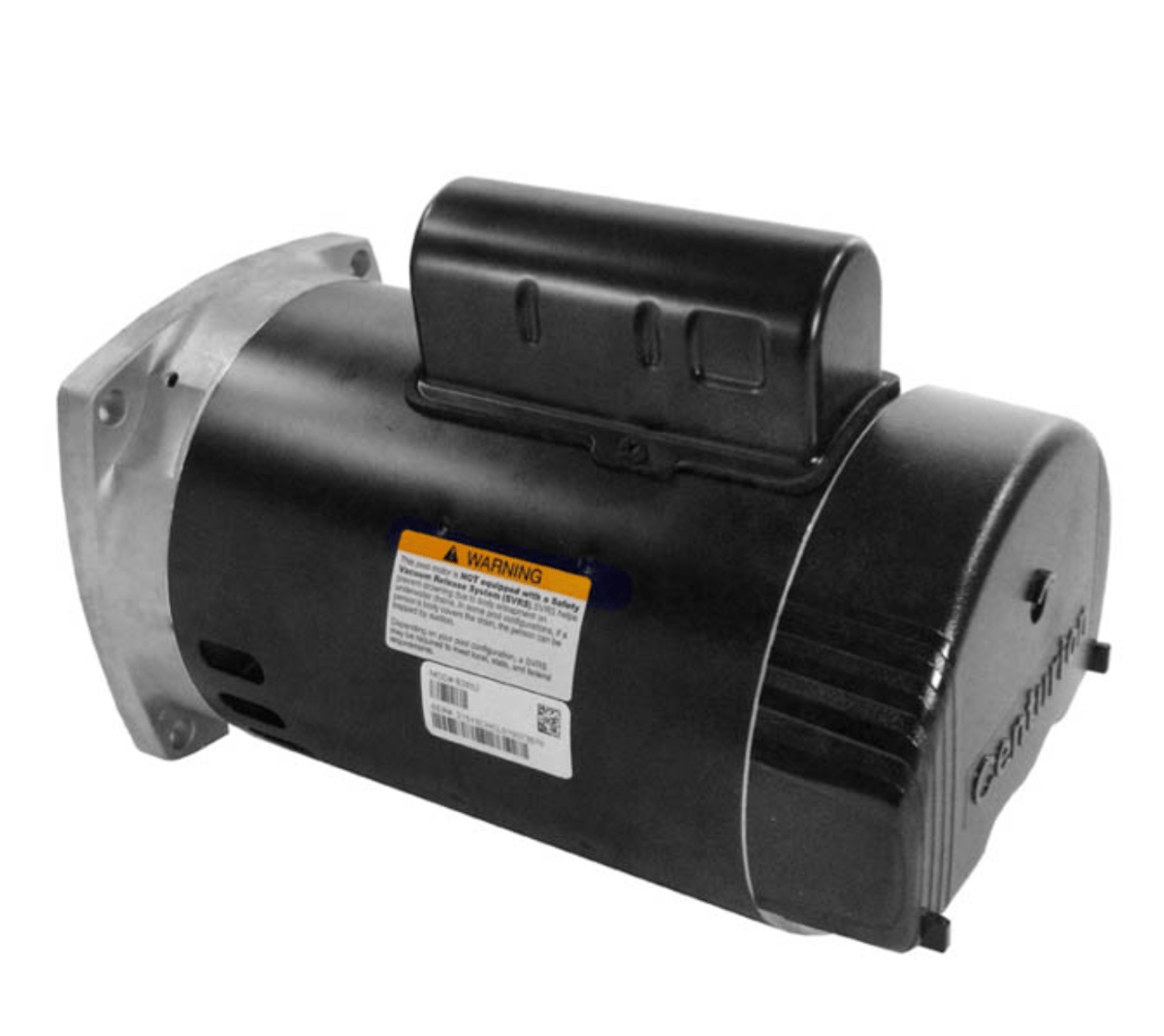

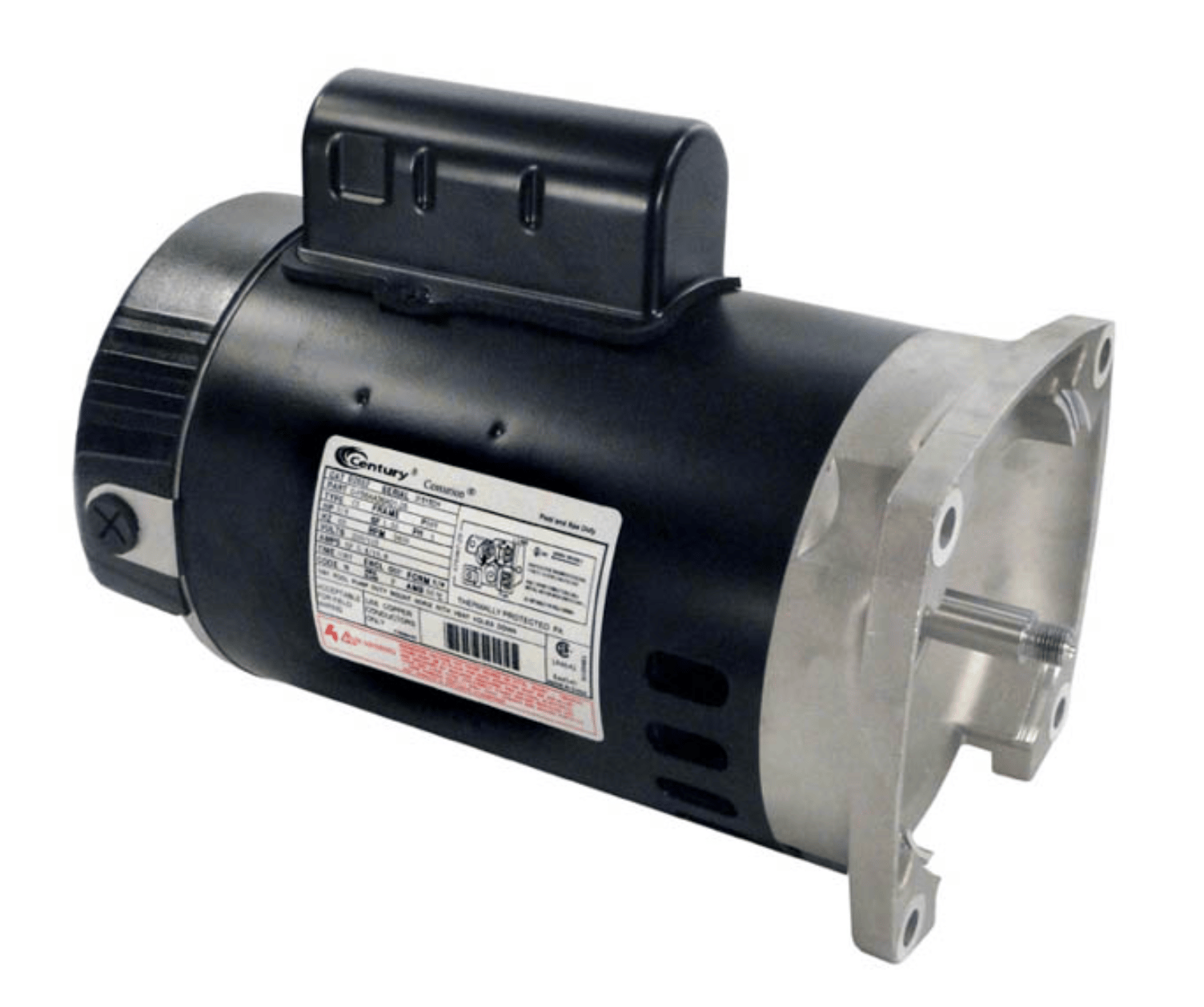

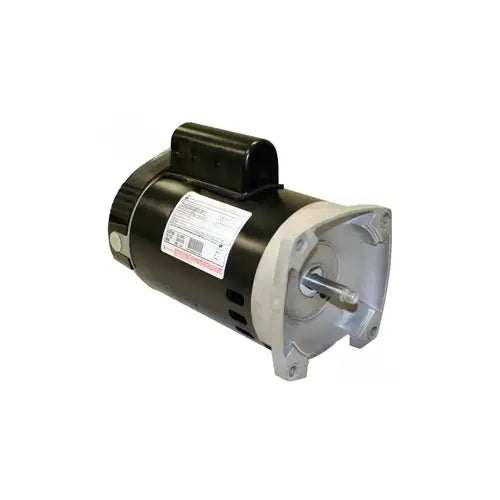

Regal Beloit B2852 America 0.75 Hp Sq. Flange Centurion

Product Description

The Regal Beloit B2852 America is a 0.75 HP square flange Centurion motor commonly used in pool and spa pumps. It operates at 3450 RPM with a voltage of 230/115. This motor features a low service factor and is designed for durability and efficient performance in demanding applications.

• Suitable for pool and spa pumps
• Operates at 3450 RPM
• Voltage of 230/115

Product Highlights

This 0.75 HP motor is designed for pool and spa applications, offering reliable performance and durability.

Product Information

Standard Information

• Brand: REGAL BELOIT
• Manufacturer Part Number: B2852
• Country of Origin: United States

Technical Specifications

• HP: 0.75
• RPM: 3450
• Volts: 230/115
• Ambient Temperature: 50 deg C
• Bearing Type: Ball
• Brand: Regal Beloit
• Diameter: 6-1/2 Inch
• Duty Cycle: Continuous
• Efficiency Group: Standard
• Enclosure Design: Open Dripproof
• Finish Color: Black
• Flange Material: Aluminum
• Flange Type: Square
• Frame: 56Y
• Frequency Rating: 60 Hz
• Full Load Amps: 10.8/5.4 A
• Insulation Class: F
• Item: Pool and Spa Pump Motor
• Motor Design: PSC
• Motor Shaft Rotation: Counterclockwise Pulley End
• Motor Thermal Protection: Automatic Reset
• Mounting Type: C-Face, No Base
• Overall Length: 12.40 Inch
• Phase: 1-Phase
• Series: Centurion®
• Service Factor: 1.25
• Shaft Design: Threaded
• Shaft Diameter: 5/8 Inch
• Shaft Length: 7/16 Inch
• Shaft Material: 303 Stainless Steel
• Standards Approvals: CSA Certified
• Sub Brand: Century®
• Thrust Horsepower: 0.94
• Type: Up-Rated, CX
• Voltage Rating: 115/230 V
• Motor Type: Pool
• Motor Amperage: 5.4A/10.8A
• Speed: 1 Speed (1-Spd)
• Total Horsepower: 0.9375thp
• Motor Shaft Type: Threaded
• Motor Style: Square Flange
• Capacitor On Top: Yes
• Manufacturer: Century
• Application: Above Ground,Pool,Spa
• Motor Enclosure Type: Open Drip Proof
• Motor Frame Size: 56Y
• Thrust HP: 0.94
• RPMs Min: 3450
• RPMs Max: 3450
• Amps Low Speed: 5.4
• Frequency Rating (Hz): 60
• Amps High Speed: 10.8
• MFR #: B2852
