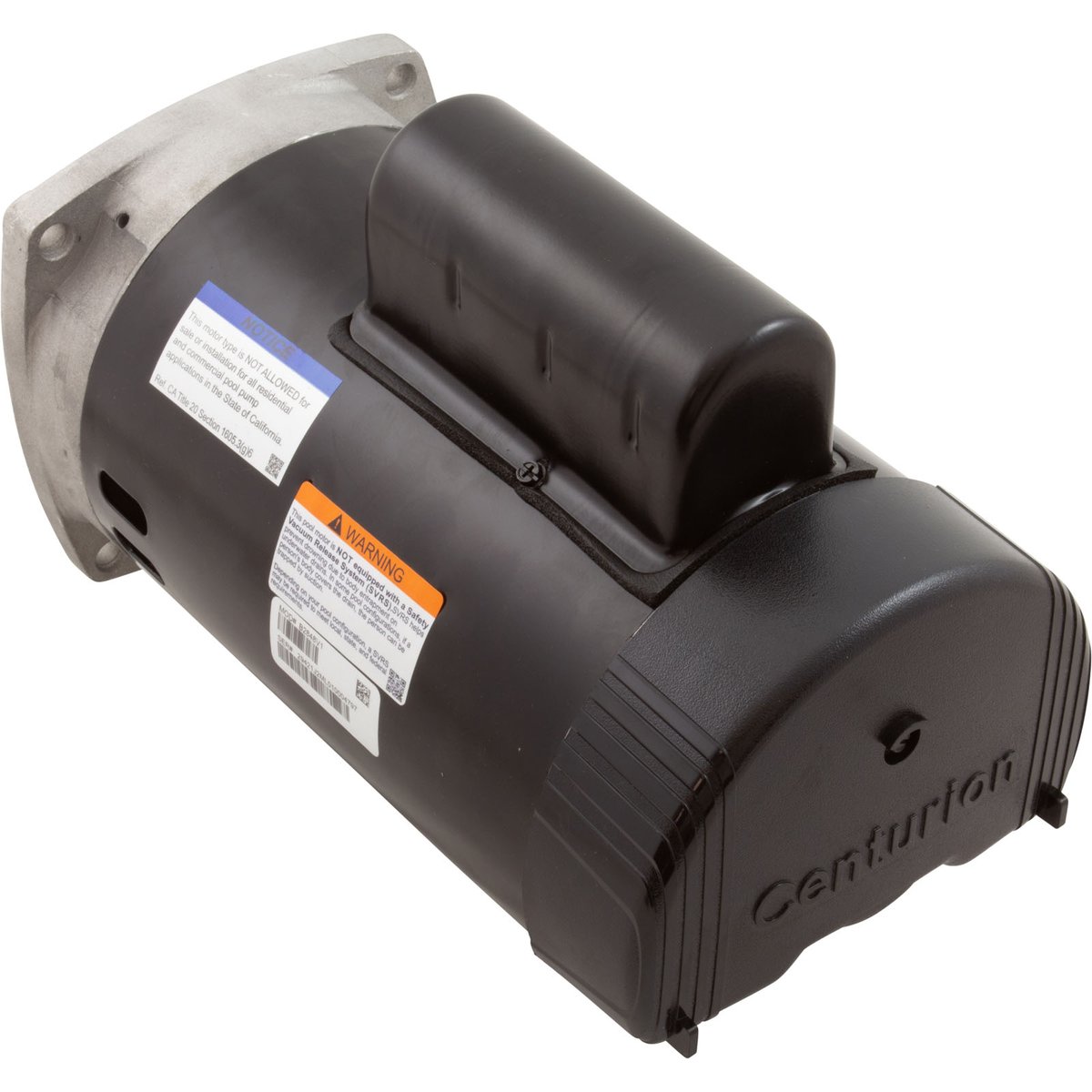

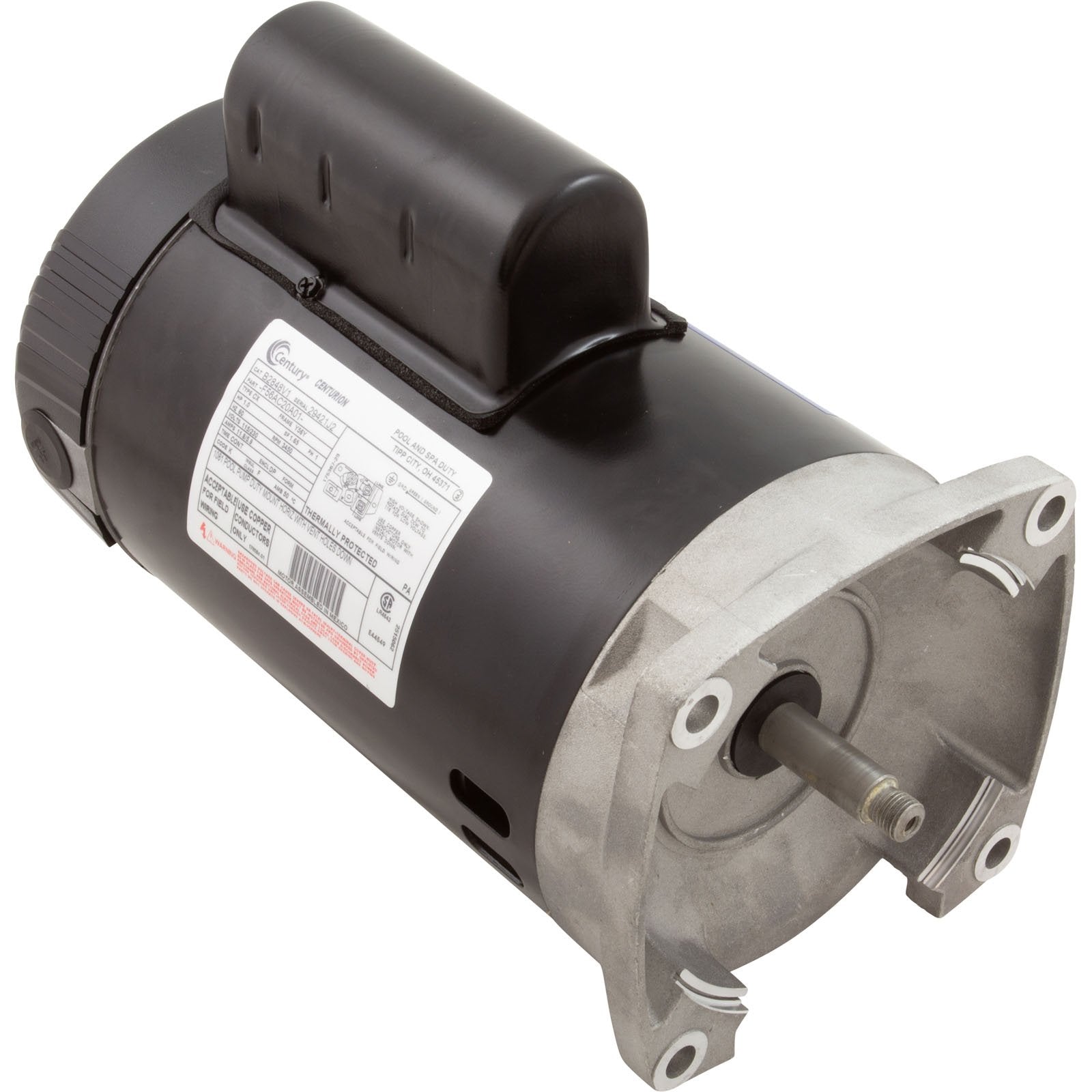

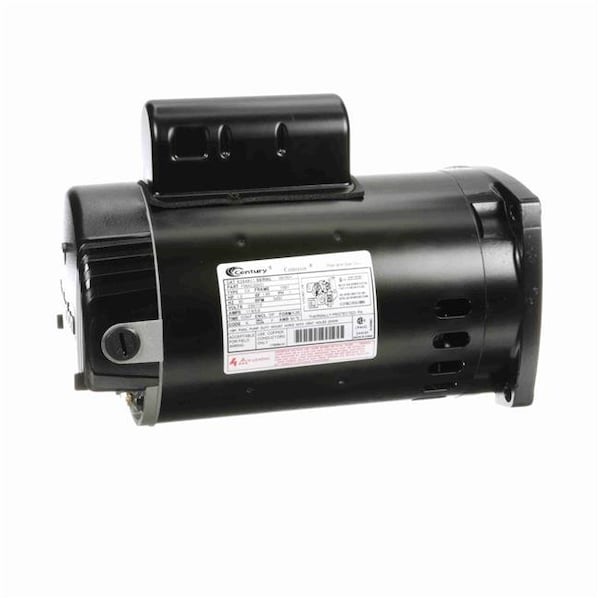

Regal Beloit B2848V1 1.65 SF 1HP Full Rated Flanged Motor replaces 38683

Product Description

The Regal Beloit B2848V1 is a 1.65 SF 1HP full-rated flanged motor featuring sealed ball bearings and a stainless steel shaft. Designed with UL 1081, this switchless motor has an open dripproof enclosure. It is a permanent split capacitor motor with a threaded shaft, suitable for horizontal mounting. Operates at 115/230V.

• Sealed Ball Bearings
• 50°C Ambient
• Stainless Steel Shaft

Product Highlights

This 1 HP motor is designed for continuous duty and operates at 3450 RPM, making it suitable for pool applications.

Product Information

Standard Information

• Brand: REGAL BELOIT
• Manufacturer Part Number: B2848V1
• Country of Origin: China

Technical Specifications

• Output HP: 1.0 Hp
• Frequency: 60 Hz
• Current: 11.8/5.9 A
• Service Factor: 1.65
• Duty: Continuous
• Frame: Y56Y
• Thermal Protection: Thermally Protected
• UL: Recognized
• Output KW: 0.75 kW
• Voltage: 115/230 V
• Speed: 1 Speed (1-Spd)
• Phase: 1
• Insulation Class: F
• Enclosure: Drip Proof
• Ambient Temperature: 50 °C
• Electrical Type: Permanent Split Capacitor. Single Or Dual Voltage
• Rotation: Counterclockwise Pump End
• Motor Orientation: Horizontal
• Opp Drive End Bearing: Ball
• Shaft Type: 1/2 Threaded
• Frame Length: 8.50 in
• Shaft Extension: 0.91 in
• Poles: 2
• Mounting: Square Flange
• Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Overall Length: 12.95 in
• Shaft Diameter: 0.625 inch
• Motor Type: Pool
• Frame Type: 56Y
• Motor Shaft Type: Threaded
• Motor Style: Square Flange
• Capacitor On Top: Yes
• Manufacturer: AO Smith/Century/Regal Beloit
• Application: Pool
• Bearing Type: Sealed Ball
• Motor Enclosure Type: Drip Proof
• Flange Type: Square
• Shaft Material: Stainless Steel
• Commercial, Residential, or Professional: Residential
• Motor Frame Size: 56Y
• RPMs Min: 3450
• Shaft Design: 1/2 Threaded
• RPMs Max: 3450
• Amps Low Speed: 5.9
• Frequency Rating (Hz): 60
• Motor Shaft Rotation: Counterclockwise Pulley End
• Amps High Speed: 11.8
• Mfg Part #: B2848V1
• Hzn Part #: 35-126-1304
• Replaces: 38683
• Works With: Pool
• Mount: Threaded
