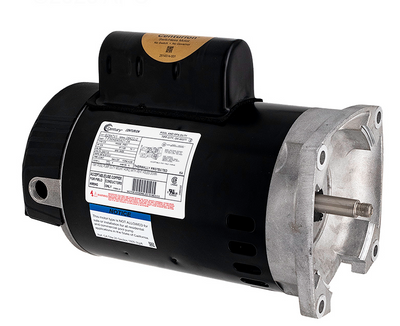

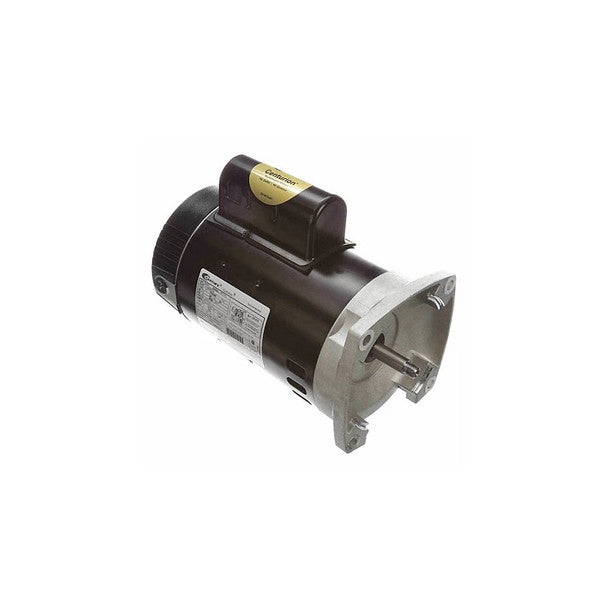

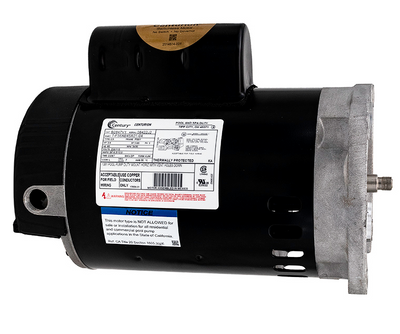

Regal Beloit B2847V1 0.75 HP Square Flange Full Rated Motor

Product Description

The Regal Beloit B2847V1 is a 0.75 HP square flange full rated motor designed for pool and spa pumps. It features a 56Y frame, single-phase power, and operates at 115/230V and 3450 RPM. This motor is thermally protected and designed for continuous duty.

• Assured for high quality and standards
• Full-Rated 3450 RPMs
• Open Drip Proof

Product Highlights

This motor is designed to meet the requirements of end users, ensuring satisfaction and performance in demanding pool and spa applications.

Product Information

Standard Information

• Brand: REGAL BELOIT
• Manufacturer Part Number: B2847V1
• Country of Origin: China

Technical Specifications

• Brand: Regal Beloit
• Manufacturer: Regal Beloit
• Phase: 1
• Output HP: 3/4 Hp
• Output KW: 0.56 kW
• Voltage: 230/115 V
• Speed: 3450 rpm
• Service Factor: 1.65
• Frame: P56Y
• Enclosure: Drip Proof
• Thermal Protection: Thermally Protected
• Ambient Temperature: 50 °C
• Frequency: 60 Hz
• Current: SF 6.5/13.0 A
• Duty: Continuous
• Insulation Class: F
• UL: Recognized
• CSA: Y
• CE: N
• Number of Speeds: 1
• Starting Method: Across The Line
• Poles: 2
• Rotation: Counterclockwise Pump End
• Mounting: Round
• Motor Orientation: Horizontal
• Drive End Bearing: Ball Brg
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Type: 1/2 Thread
• Overall Length: 12.43 in
• Frame Length: 8.00 in
• Shaft Diameter: 0.625 inch
• Shaft Extension: 0.91 in
• Application: Pool,Spa
• Bearing Type: Ball
• Motor Enclosure Type: Drip Proof
• Motor Speed: 1-Speed
• Motor Frame Size: 56Y
• Thrust HP: 0.75
• Shaft Design: Threaded
• RPMs Max: 3450
• Part Number: CRMB2847V1
• Type: Open Drip Proof
• Capacitor: Permanent Split Capacitor
• Shaft: Stainless Steel Shaft
• Bearings: Sealed Ball Bearings
• Switch: Switchless
• Ambient: 50 Degrees C
• RPMs: 3450
• SF: 1.65
