Product Description

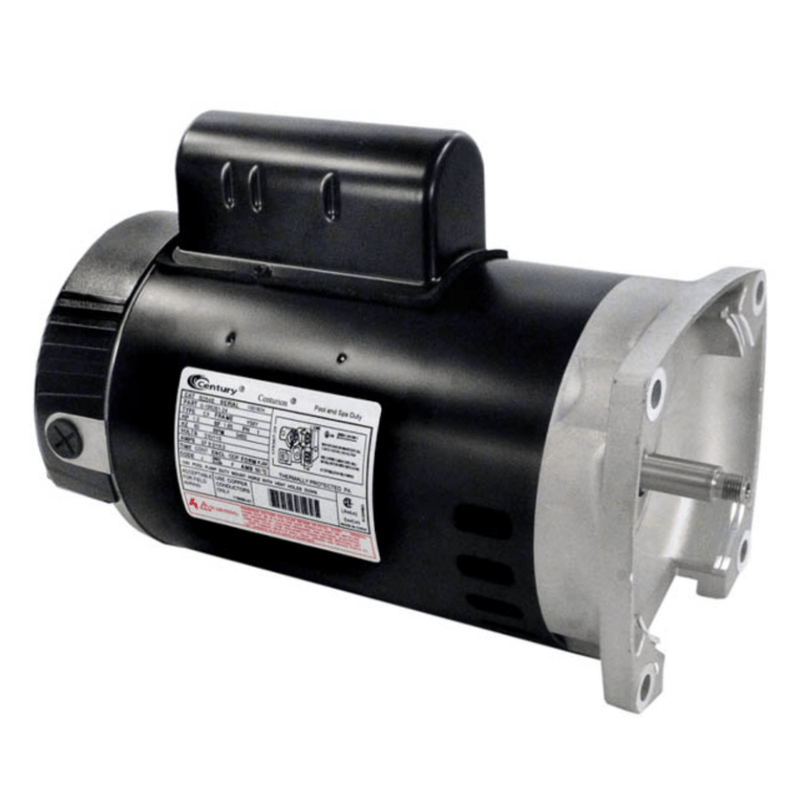

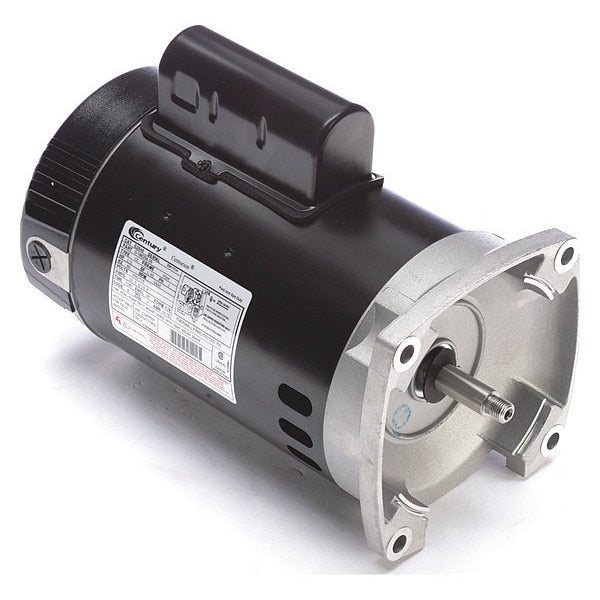

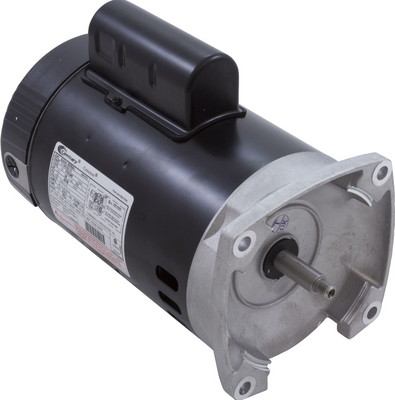

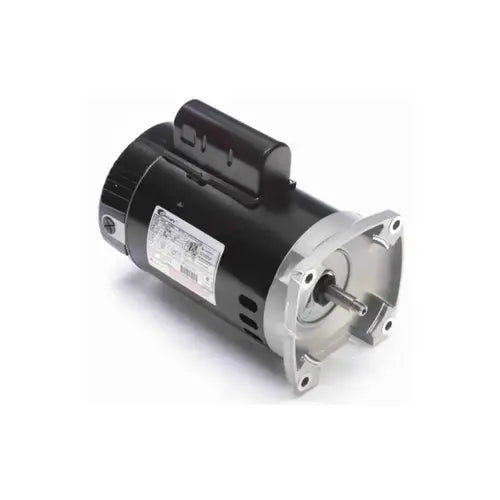

The REGAL BELOIT B2846 motor is a 0.5 HP square flange motor suitable for pool and spa applications. It features ball bearings, Class B insulation, and a stainless steel shaft. Designed for continuous duty, this motor operates at 3450 RPM with a threaded shaft and open dripproof enclosure.
- Features a stainless steel shaft and ball bearings
- Designed with Class B insulation
- Rotation is CCW pump end
Product Highlights
This 0.5 HP motor is designed for pool and spa pumps, offering reliable performance with its robust construction and efficient design.
Product Information
Standard Information
-
Brand: REGAL BELOIT
-
Manufacturer Part Number: B2846
-
Country of Origin: China
Technical Specifications
-
Manufacturer: Regal Beloit
-
Model / MPN: B2846
-
Product Type: ELECTRIC_MOTOR
-
VoltageRating: 115/230 V
-
DutyCycle: Continuous
-
MotorDesign: PSC
-
Frame: 56Y
-
FullLoadAmps: 5.4/10.8 A
-
ServiceFactor: 1.95
-
Brand: Regal Beloit
-
SubBrand: Century®
-
StandardsApprovals: UL 1081 Approved, CSA Certified, Meets California Energy Commission Appliance Regulations 2008
-
AmbientTemperature: 50 deg C
-
RPM: 3450
-
ShaftDesign: Threaded
-
MotorShaftRotation: CCWPE
-
Phase: 1-Phase
-
ShaftMaterial: 303 Stainless Steel
-
MountingType: C-Face, No Base
-
InsulationClass: B
-
EfficiencyGroup: Standard
-
HP: 0.5
-
Type: Full-Rated, CX
-
ShaftDiameter: 5/8 Inch
-
FrequencyRating: 60 Hz
-
OverallLength: 12.40 Inch
-
ShaftLength: 3/4 Inch
-
MotorThermalProtection: Auto
-
Bearing Type: Ball
-
EnclosureDesign: Open Dripproof
-
FlangeType: Square
-
Motor Enclosure Type: Open Drip Proof
-
Motor Rating: Full-Rated
-
Motor Frame Size: 56Y
-
RPMs Min: 3450
-
RPMs Max: 3450
-
Frequency Rating (Hz): 60
-
Motor Shaft Rotation: Counterclockwise Pulley End
-
Motor Thermal Protection: Automatic Reset
-
Frame Size: P56Y
-
Motor Type: Pool
-
Motor Amperage: 10.8A/5.4A
-
Voltage: 115v/230v
-
Speed: 1 Speed (1-Spd)
-
Motor Shaft Type: Threaded
-
Motor Style: Square Flange
-
Capacitor On Top: Yes
-
CAT: B2846
-
FR: P 56 Y
-
SF: 1.95
-
HZ: 60
-
ROT: CCWPE
-
SF AMPS: 10.8/5.4
-
TIME: CONT
-
ENCL: THERMALLY PROTECTED
-
CODE: J
-
INSUL CLASS: B
-
AMB.: 50°C
-
RPM Range: 3,001-3,600
-
Motor Service Factor: 1.95
-
Nameplate RPM: 3,450
-
Motor Mounting Type: Face
-
Standards: UL (E44549)
-
Motor Sub Application: Pool and Spa Pump
-
Motor Efficiency Group: Standard Efficient
-
Motor Application: Pump
-
Shaft: Threaded-1/2-20 UNF-2A RH and 1/4-20 UNC-2B LH
-
Voltage Compatibility: 115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
-
Finish: Black
-
Max. Ambient Temp.: 50 Degrees C
-
Includes: 25 MFD 370VAC 50/60Hz Capacitor
-
Motor Shaft Design: Threaded
-
Usable @ 200V: No
-
Motor Mounting Position: Horizontal
-
Motor Frame Material: Steel
-
Max. SF Amps: 10.8
-
No. of Speeds: 1
-
Application: Pool
-
Shaft Dia.: 5/8 in
-
Bolt Circle Dia.: 7 1/8 in
