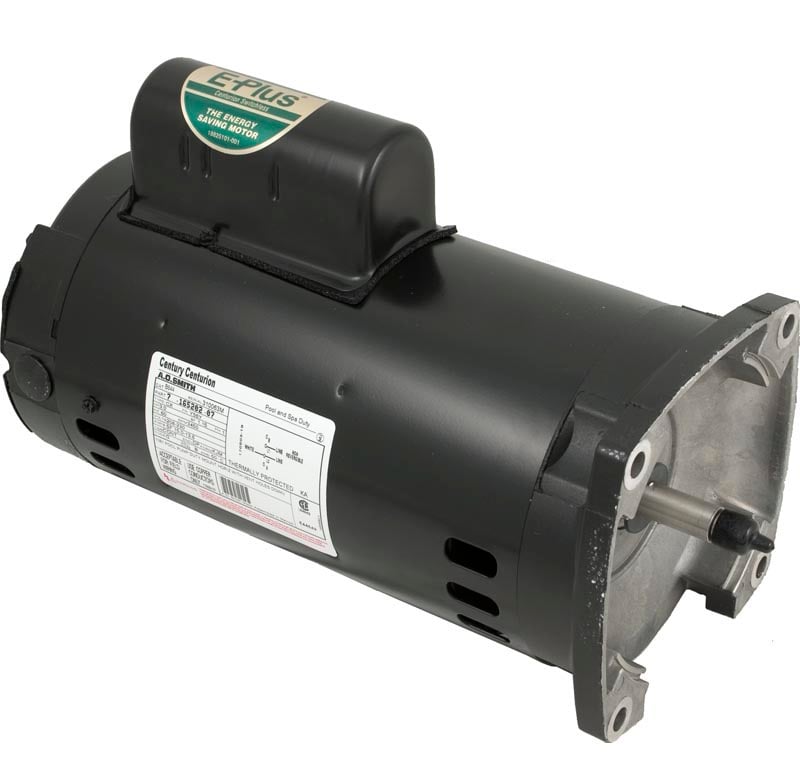

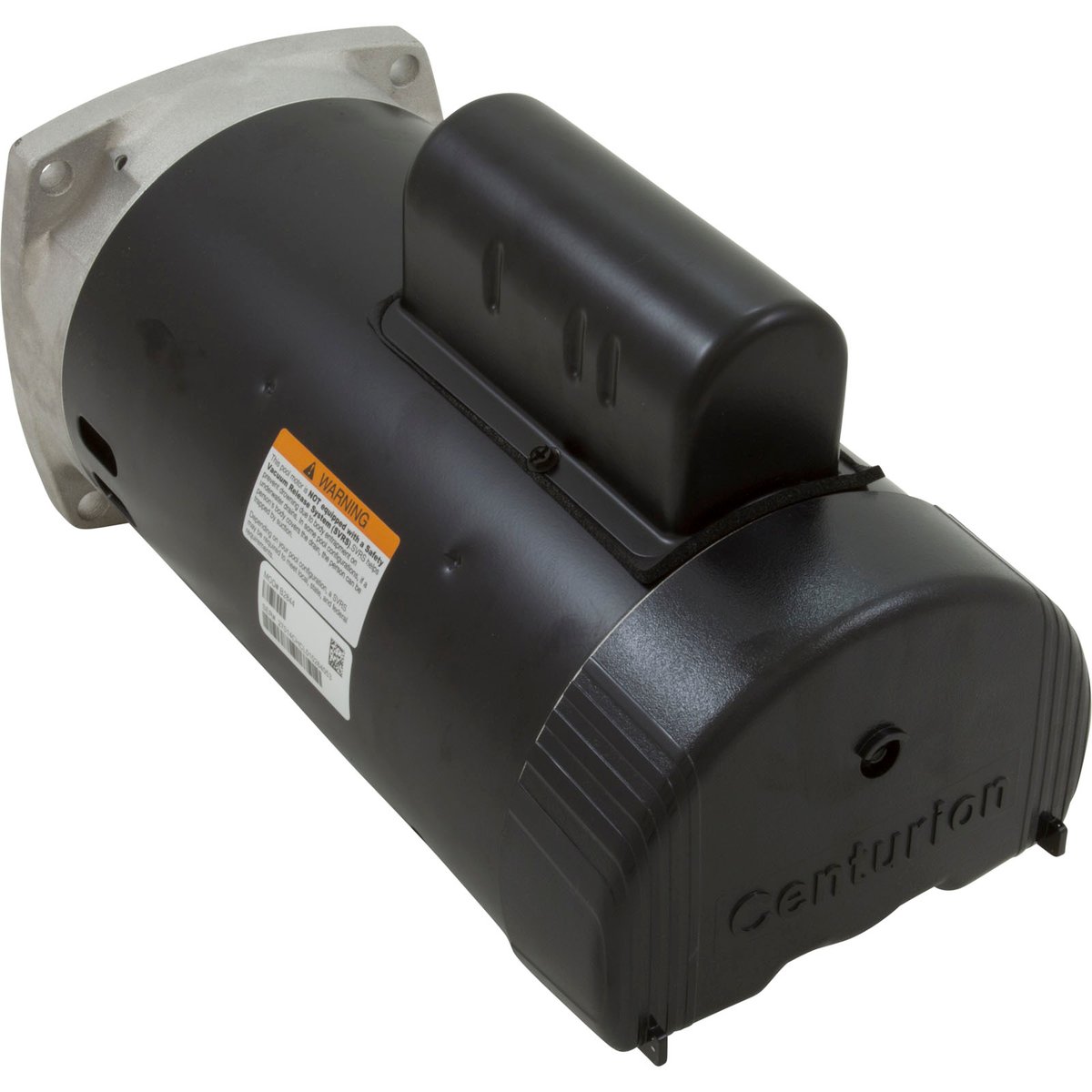

Regal Beloit B2844 AO Smith Pool and Spa Pump Motor 3 HP B2844

Product Description

The REGAL BELOIT B2844 is a 3 HP pool and spa pump motor. It features energy efficiency, Class B insulation, and a stainless steel shaft. Designed for durability, this motor operates at 60 Hz with a counterclockwise pump end rotation. It is a permanent split capacitor, single phase motor with a drip-proof enclosure.

• Energy Efficient
• Class B Insulation
• Stainless Steel Shaft

Product Highlights

This 3 HP motor is ideal for pool and spa applications, offering reliable performance and efficient operation.

Product Information

Standard Information

• Brand: REGAL BELOIT
• Manufacturer Part Number: B2844
• Country of Origin: China

Technical Specifications

• Phase: 1
• Output HP: 3.0 Hp
• Output KW: 2.2 kW
• Voltage: 208-230 V
• Speed: 1 Speed (1-Spd)
• Service Factor: 1.15
• Frame: Y56Y
• Enclosure: Drip Proof
• Thermal Protection: Thermally Protected
• Ambient Temperature: 50 deg C
• Frequency: 60 Hz
• Current: SF 15.0-13.6 A
• Duty: Continuous
• Insulation Class: B
• UL: Recognized
• CSA: Y
• Number of Speeds: 1
• Electrical Type: Permanent Split Capacitor, Single Or Dual Voltage
• Poles: 2
• Rotation: Counterclockwise Pump End

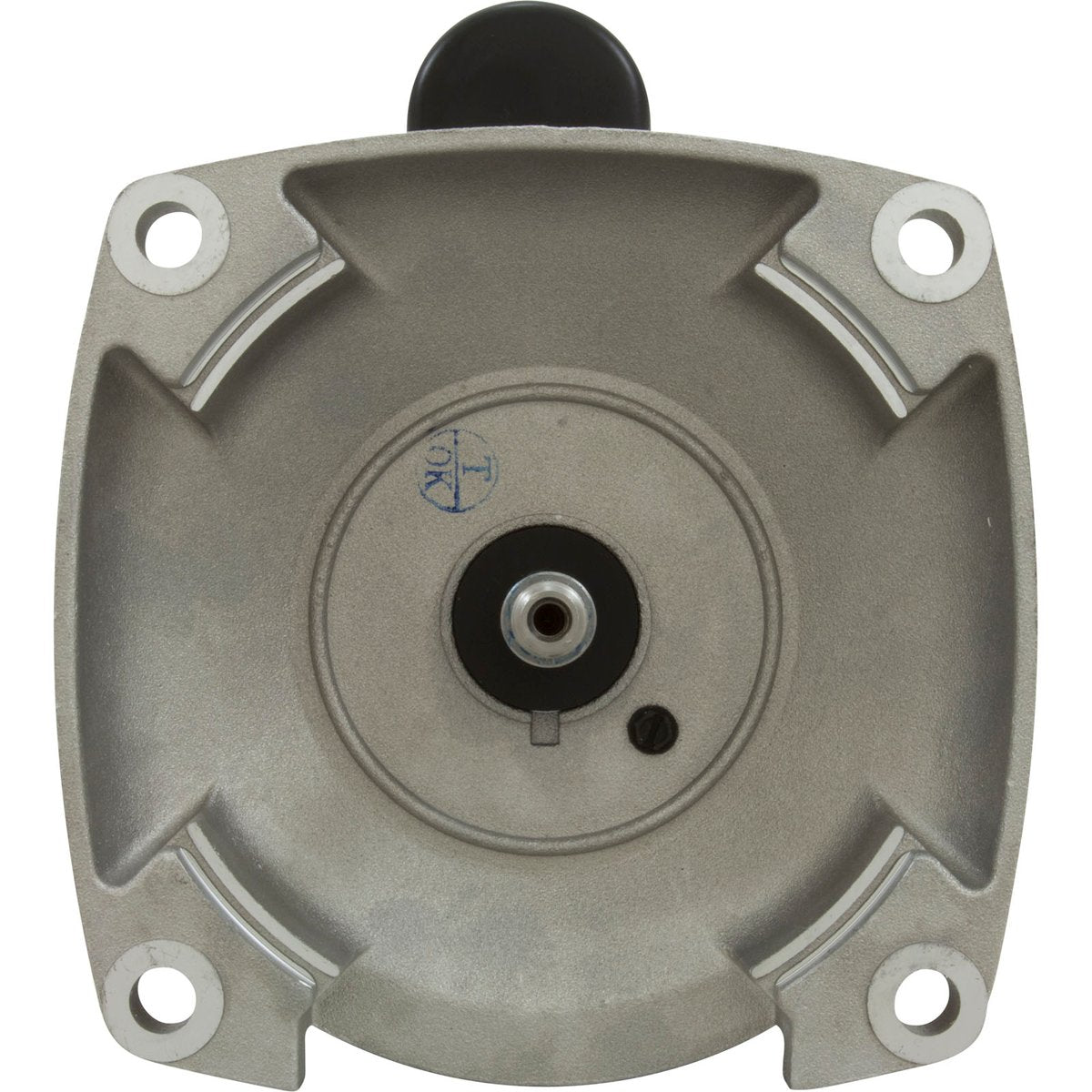

• Mounting: Square Flange
• Motor Orientation: Horizontal
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Type: 1/2 THREADS
• Overall Length: 14.40 Inch
• Frame Length: 10.00 in
• Shaft Diameter: 5/8 Inch
• Shaft Extension: 0.91 in
• Motor Type: Pool
• Motor Amperage: 15.0A-13.6A
• Frame Type: 56Y
• Horsepower: 3.0hp
• Motor Shaft Type: Threaded
• Motor Style: Square Flange
• Capacitor On Top: Yes
• Manufacturer: AO Smith/Century/Regal Beloit
• Bearing Type: Ball
• Brand: Regal Beloit
• Diameter: 6-1/2 Inch
• Efficiency Group: Standard
• Enclosure Design: Open Dripproof
• Finish Color: Black
• Flange Material: Aluminum
• Flange Type: Square
• HP: 3
• Item: Pool and Spa Pump Motor
• Motor Design: PSC
• Motor Shaft Rotation: CCWPE
• Motor Thermal Protection: Auto
• Mounting Type: C-Face, No Base
• RPM: 3450
• Series: E-Plus®
• Shaft Design: Threaded
• Shaft Material: 303 Stainless Steel
• Standards Approvals: UL 1081 Approved, CSA Certified
• Sub Brand: Century®
• Type: Full-Rated, CX
• Voltage Rating: 208-230 V
• Used On: Jandy 3HP Stealth Series Pump Parts, SHPF3.0
