Regal Beloit B2843 2.0 HP E-Plus Energy Efficient 1081 New Centurion

Product Description

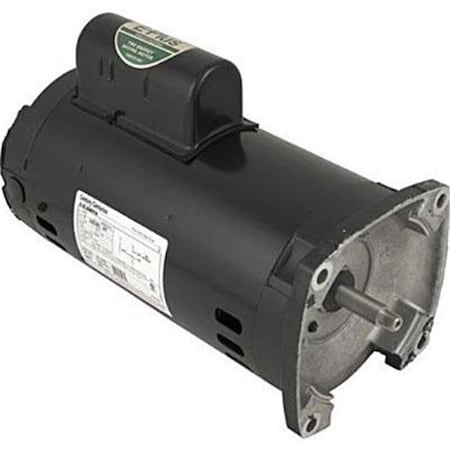

The Regal Beloit B2843 is a 2.0 HP E-Plus energy-efficient motor with a square mounting face for pump attachment, featuring four non-threaded bolt holes. Common in Sta-Rite Pac Fab PurexTrition and WhisperFlo Red Jacket American Products Sears and Challenger inground pool pumps. It operates at 230 Volts and 60 Hz with a 1.3 service factor. Designed for pool and spa applications.

• Capacitor start and capacitor run motor.
• 2 hp., 230 Volts
• 60 hz, 10.0 amps.

Product Highlights

Energy efficient 2.0 HP motor for pool and spa pumps. Features a threaded shaft and capacitor start/run design.

Product Information

Standard Information

• Brand: REGAL BELOIT
• Manufacturer Part Number: B2843
• Country of Origin: China

Technical Specifications

• Brand: Regal Beloit
• Manufacturer: REGAL BELOIT AMERICA - EPC
• Product Type: ELECTRIC_MOTOR
• Number of Items: 1.0
• Horsepower: 2 Horsepower
• Speed: 3450 rpm
• Voltage: 208-230 V
• Material: Stainless Steel
• Poolweb Item #: B2843
• Cross Reference #: 071316S, 355516
• VoltageRating: 208-230 V
• DutyCycle: Continuous
• MotorDesign: PSC
• Frame: 56Y
• FullLoadAmps: 11.0-10.2 A
• ServiceFactor: 1.30
• SubBrand: Century®
• StandardsApprovals: UL 1081 Approved, CSA Certified
• AmbientTemperature: 50 deg C
• RPM: 3450
• ShaftDesign: Threaded
• MotorShaftRotation: CCWPE
• Phase: 1-Phase
• FlangeMaterial: Aluminum
• ShaftMaterial: 303 Stainless Steel
• MountingType: C-Face, No Base
• InsulationClass: B
• EfficiencyGroup: Standard
• ThrustHorsepower: 2.6
• HP: 2
• Type: Full-Rated, CX
• ShaftDiameter: 5/8 Inch
• FrequencyRating: 60 Hz
• OverallLength: 14.40 Inch
• Diameter: 6-1/2 Inch
• Item: Pool and Spa Pump Motor
• ShaftLength: 7/16 Inch
• MotorThermalProtection: Auto
• Bearing Type: Sealed Ball
• EnclosureDesign: Open Dripproof
• FlangeType: Square
• Shaft Diameter: 0.625 inch
• Application: Above Ground,Pool,Spa
• Shaft Length: 0.4375 inch
• Motor Enclosure Type: Open Drip Proof
• Ambient temperature: 50 degrees Celsius
• Motor Rating: Full-Rated
• Motor Frame Size: 56Y
• Thrust HP: 2.6
• RPMs Min: 3450
• Green or Energy Efficient Product: True
• RPMs Max: 3450
• Frequency Rating (Hz): 60
• Motor Shaft Rotation: Counterclockwise Pulley End
• Motor Thermal Protection: Automatic Reset
• Output HP: 2.0 Hp
• Output KW: 1.5 kW
• Enclosure: Drip Proof
• Thermal Protection: Thermally Protected
• Frequency: 60 Hz
• Current: SF 11.0-10.2 A
• Poles: 2
• Rotation: Counterclockwise Pump End
• Mounting: Square Flange
• Motor Orientation: Horizontal
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Type: 1/2 THREADS
• Frame Length: 10.00 in
• Shaft Extension: 0.91 in
• Insulation Class: F
