Regal Beloit B2842 e-Plus Energy Efficient 1.5 HP 1081 New Centurion

Product Description

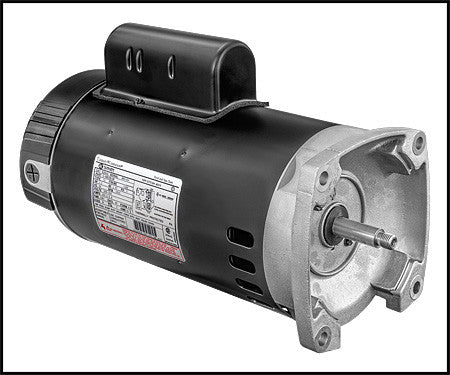

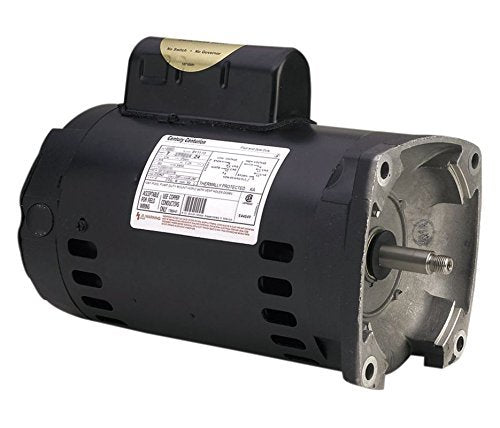

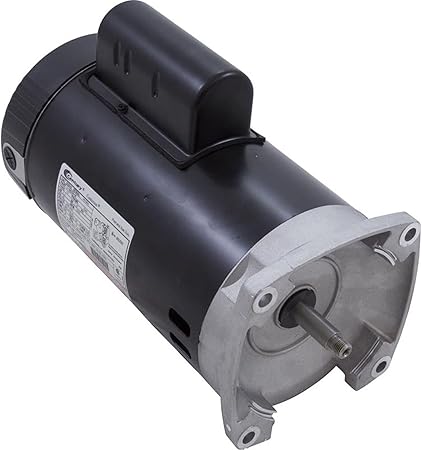

The Regal Beloit B2842 is a 1.5 HP E-Plus energy-efficient motor. Operating at 208-230V and 3450 RPM, it features automatic overload protection with a service factor of 1.47. Designed with an open drip-proof enclosure and ball bearings, this motor has a 56Y frame-square flange and CCW rotation facing the shaft. It is thermally protected and has a stainless steel shaft.

• Operates at 208-230V and 3450 RPM
• Features automatic overload protection with a 1.47 service factor
• Designed with open drip-proof enclosure and ball bearings

Product Highlights

This Regal Beloit motor is energy efficient and designed for durability and protection against corrosion, suitable for pool and spa applications.

Product Information

Standard Information

• Brand: REGAL BELOIT
• Manufacturer Part Number: B2842
• Country of Origin: China

Technical Specifications

• HP: 1.5
• RPM: 3450
• Amps: 9.6
• Voltage: 208-230V
• Frequency: 60hz
• Service Factor: 1.47
• Rotation: CCW rotation facing the shaft
• Enclosure: Open drip proof
• Bearings: Ball bearings
• Frame: 56Y Frame-square flange
• Flange Type: Y Flange
• Motor Frame: 56Y
• P/N: B2842
• Item: MOTOR 1 1/2 HP 3 450 RPM 56Y 208-230V
• OEM: Regal Beloit America, Inc. (Century Electric Motors)
• OEM #: B2842
• Ambient Temperature: 50 Degrees C
• Finish: Black
• Full Load Amps: 9.6-8.8
• Hz: 60
• Ins. Class: F
• Motor Application: Pump
• Motor Bearings: Ball
• Motor Design: Permanent Split Capacitor
• Motor Efficiency Group: Standard Efficient
• Motor Enclosure Design: Open Dripproof
• Motor Flange Material: Aluminum
• Motor Mounting Type: Face
• Motor Service Factor: 1.47
• Motor Shaft Rotation: CCWSE
• Motor Sub Application: Pool and Spa Pump
• Motor Thermal Protection: Auto
• Nameplate RPM: 3450
• Phase: 1
• RPM Range: 3001-3600
• Shaft: Threaded 1/2-20 UNF-2A RH
• Shaft Diameter: 5/8 in
• Shaft Length: 7/16 in
• Shaft Material: 303 Stainless Steel
• Standards: CSA Certified, UL Recognized
• Voltage Compatibility: 115/208-230, 208-230, 208-240
• Flange: Square
