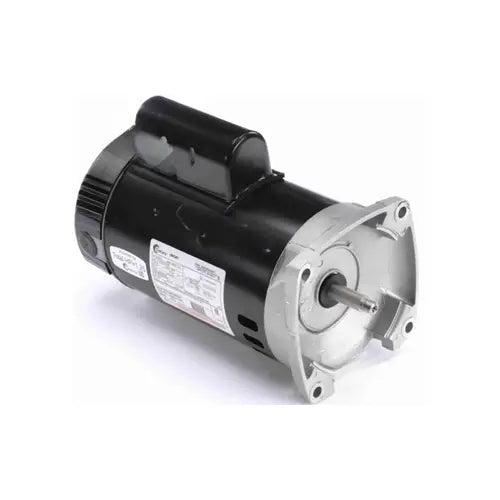

Regal Beloit B2661 Century Pool Pump Motor 3/4 HP 1 Ph 60 Hz 208-230/115 V 3600 RPM R56Y Frame DP

Product Description

The REGAL BELOIT B2661 Century Pool Pump Motor features 3/4 HP, single phase power, and a 60 Hz frequency. Operating at 208-230/115 V and 3600 RPM, it has an R56Y frame and a drip-proof enclosure. Designed for continuous duty, this motor includes thermal protection and sealed ball bearings for enhanced durability. It is UL Recognized and CSA certified.

• Open & Accessible Terminal Board & Wiring Compartment
• Voltage Change Device
• Sealed Ball Bearings

Product Highlights

3/4 HP, single-phase motor with drip-proof enclosure and thermal protection, suitable for pool pump applications.

Product Information

Standard Information

• Brand: REGAL BELOIT
• Manufacturer Part Number: B2661
• Country of Origin: China

Technical Specifications

• Phase: 1
• Output HP: 3/4 Hp
• Output KW: 0.56 kW
• Voltage: 208-230/115 V
• Speed: 3450 rpm
• Service Factor: 1.67
• Frame: R56Y
• Enclosure: Drip Proof
• Thermal Protection: Thermally Protected
• Ambient Temperature: 50 °C
• Frequency: 60 Hz
• Current: SF 6.0-5.6/11.2 A
• Duty: Continuous
• Insulation Class: F
• UL: Recognized
• CSA: Y
• Number of Speeds: 1
• Electrical Type: Permanent Split Capacitor, Single Or Dual Voltage
• Poles: 2
• Rotation: Counterclockwise Pump End
• Mounting: Round
• Motor Orientation: Horizontal
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Type: 1/2 Threaded
• Overall Length: 13.10 in
• Frame Length: 8.75 in
• Shaft Diameter: 0.625 in
• Shaft Extension: 0.91 in
• RPM: 3450
• Type: Full-Rated, CX
• Brand: Regal Beloit
• Bearing Type: Sealed Ball
• FinishColor: Black
• FullLoadAmps: 6.0-5.6/11.2 A
• Item: Pool and Spa Pump Motor
• MountingType: C-Face, No Base
• StandardsApprovals: UL 1081 Approved, CSA Certified
• SubBrand: Century®
• VoltageRating: 115/208-230 V
• EnclosureDesign: Open Dripproof
• FlangeMaterial: Aluminum
• ThrustHorsepower: 1.25
• ShaftDesign: Threaded
• MotorThermalProtection: Auto
• EfficiencyGroup: Standard
• MotorDesign: PSC
• FlangeType: Square
• MotorShaftRotation: CCWPE
• Application: Pool
• Horsepower: 0.75 horse power
• Shaft Length: 0.4375 inch
• Motor Enclosure Type: Open Drip Proof
• Motor Rating: Full-Rated
• Commercial, Residential, or Professional: Residential
• Motor Frame Size: 56Y
• Thrust HP: 1.25
• RPMs Min: 3450
• Green or Energy Efficient Product: True
• RPMs Max: 3450
• Frequency Rating (Hz): 60
• Motor Shaft Rotation: Counterclockwise Pulley End
