Product Description

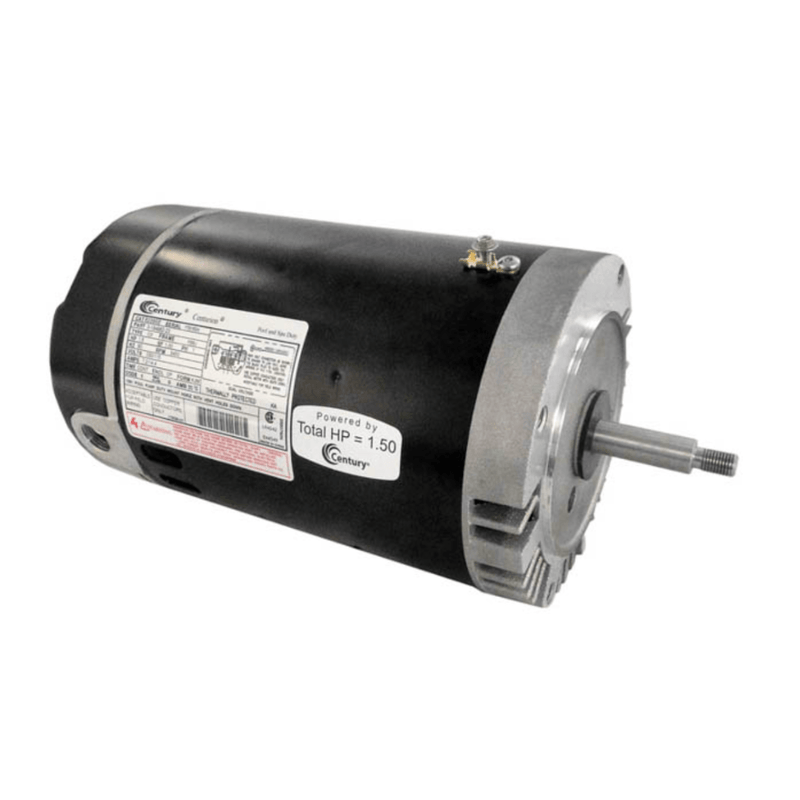

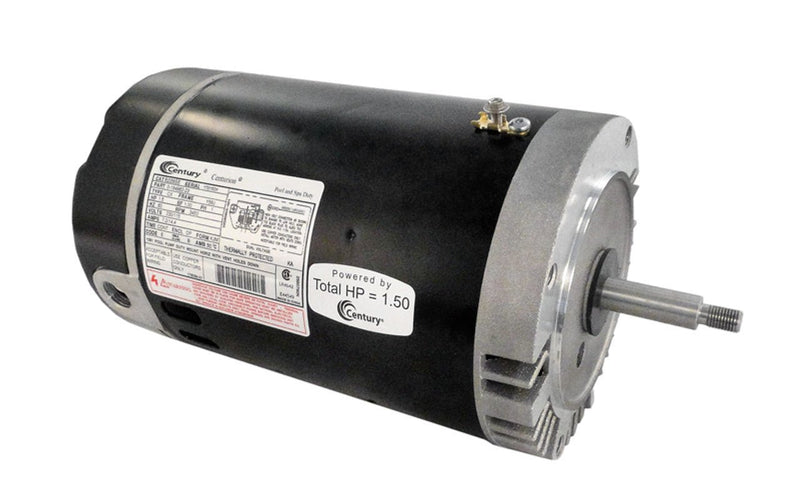

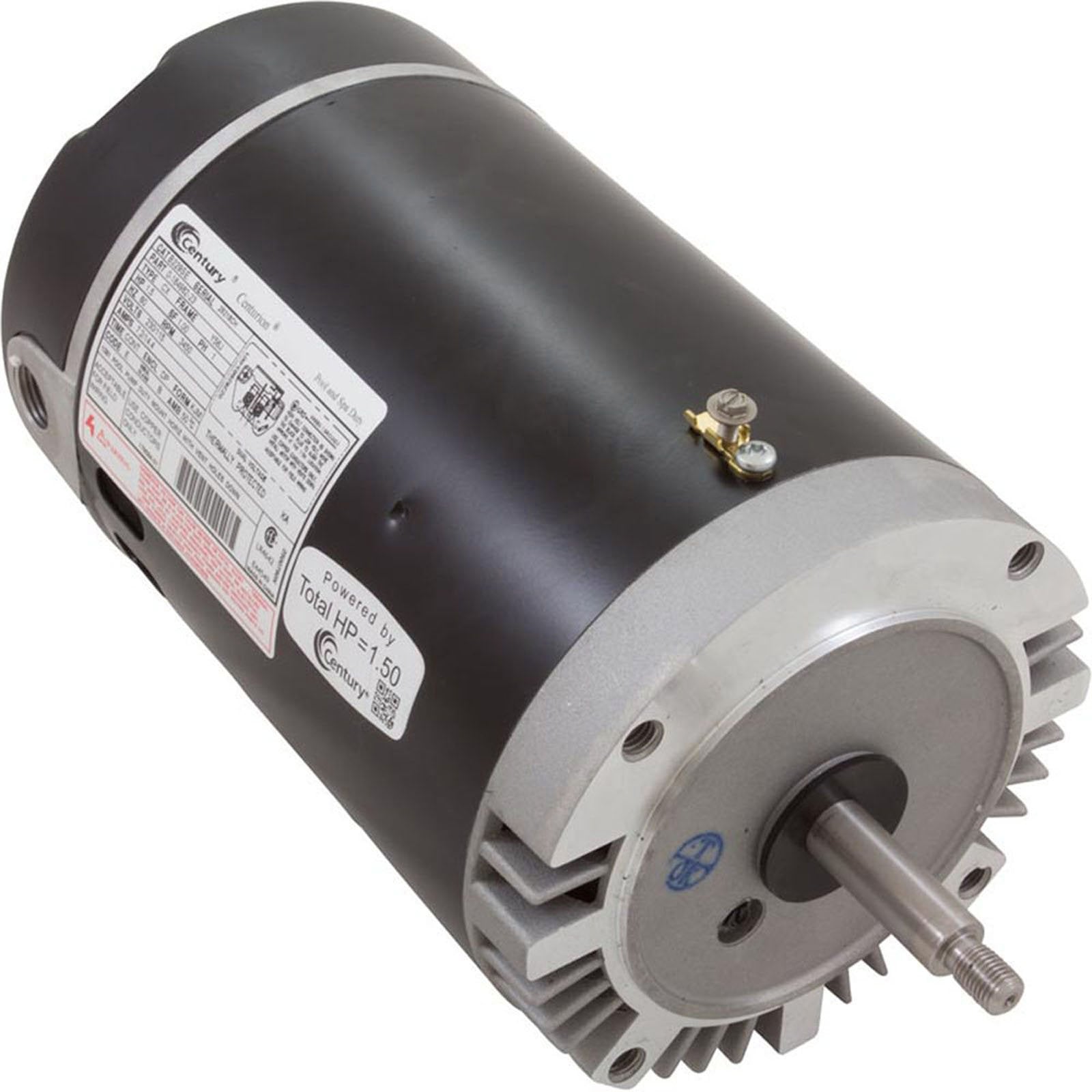

The REGAL BELOIT B229SE Century C-Face Pool and Spa Pump Motor is a single phase motor with a permanent split capacitor for enhanced running efficiency. It meets industry standards with its 1081 design while providing durability with its aluminum NEMA ?C? brackets. Equipped with an auto overload protector, a stainless steel shaft, and ball bearings.
- Aluminum NEMA ?C? brackets
- Stainless steel shaft
- Ball bearings
Product Highlights
The Century C-Face Pool and Spa Pump Motor provides long lasting operation and delivers high performance.
Product Information
Standard Information
-
Brand: REGAL BELOIT
-
Manufacturer Part Number: B229SE
Technical Specifications
-
Brand: REGAL BELOIT AMERICA INC
-
Model Name: B229SE
-
Voltage: 115/230 V
-
Horsepower: 1.5 horse power
-
Material: Stainless Steel
-
Motor Type: Pool
-
Motor Amperage: 14.4A/7.2A
-
Frame Type: 56J
-
Speed: 1 Speed (1-Spd)
-
Motor Shaft Type: Threaded
-
Motor Style: C-Face
-
Capacitor On Top: No
-
Manufacturer: AO Smith/Century/Regal Beloit
-
Diameter: 6-1/2 Inch
-
RPM: 3450
-
Type: Up-Rated, CX
-
OverallLength: 13.91 Inch
-
Phase: 1-Phase
-
Bearing Type: Ball
-
AmbientTemperature: 50 deg C
-
FrequencyRating: 60 Hz
-
FullLoadAmps: 7.2/14.4 A
-
Item: Pool and Spa Pump Motor
-
MountingType: C-Face, No Base
-
StandardsApprovals: UL 1081 Approved, UL Recognized (E14663), CSA Certified (LR4642)
-
SubBrand: Century®
-
VoltageRating: 115/230 V
-
EnclosureDesign: Open Dripproof
-
FlangeMaterial: Aluminum
-
ThrustHorsepower: 1.5
-
ShaftDesign: 7/16 Threaded
-
InsulationClass: B
-
ShaftLength: 2-9/16 Inch
-
ShaftMaterial: 303 Stainless Steel
-
ShaftDiameter: 5/8 Inch
-
DutyCycle: Continuous
-
MotorThermalProtection: Automatic Reset
-
EfficiencyGroup: Standard
-
NumberofSpeed: 1-Speed
-
MotorDesign: PSC
-
ServiceFactor: 1.00
-
MotorShaftRotation: Counterclockwise Pulley End
-
Application: Pool
-
Motor Enclosure Type: Open Drip Proof
-
Flange Type: Round
-
Motor Speed: 1-Speed
-
Motor Rating: Up-Rated
-
Commercial, Residential, or Professional: Residential
-
Motor Frame Size: 56J
-
RPMs Min: 3450
-
RPMs Max: 3450
