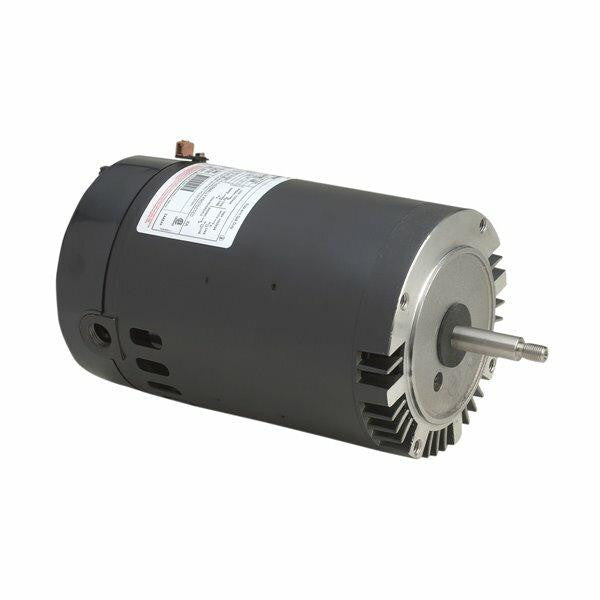

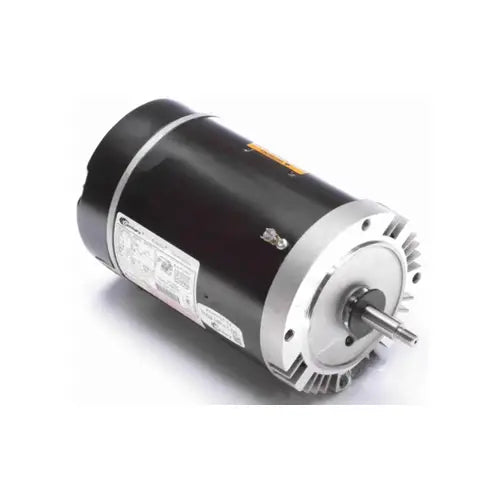

Regal Beloit B228SE Spa Pump Motor 1 HP REPLACEMENT B228SE

Product Description

The REGAL BELOIT B228SE is a 1 HP spa pump motor with a permanent split capacitor for enhanced running efficiency. It features aluminum NEMA-C brackets and is equipped with ball bearings. This single-phase motor operates at 115/230V and 3450 RPM, suitable for pool and spa pump applications. It has a C-face mount and open dripproof enclosure.

• Permanent Split Capacitor
• Ball Bearings
• Open Dripproof Enclosure

Product Highlights

Single-phase, 1 HP motor with durable construction and efficient operation for spa and pool pumps.

Product Information

Standard Information

• Brand: REGAL BELOIT
• Manufacturer Part Number: B228SE
• Country of Origin: China

Technical Specifications

• Rotation: CCW Pump End
• Hz: 60
• Bearing Shaft End: 304
• Ambient: 50 C
• Insulation: Class B
• Phase: 1
• Output HP: 1.0 Hp
• Output KW: 0.75 kW
• Voltage: 230/115 V
• Speed: 3450 rpm
• Service Factor: 1
• Frame: U56J
• Enclosure: Drip Proof
• Thermal Protection: Thermally Protected
• Ambient Temperature: 50 deg C
• Frequency: 60 Hz
• Current: 6.0/12.0 A
• Duty: Continuous
• UL: Recognized
• CSA: Y
• Number of Speeds: 1
• Electrical Type: Permanent Split Capacitor, Single Or Dual Voltage
• Poles: 2
• Mounting: C Face
• Motor Orientation: Horizontal
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Type: 7/16 THREADS
• Overall Length: 12.81 in
• Frame Length: 7.00 in
• Shaft Diameter: 0.625 in
• Shaft Extension: 2.57 in
• Model Name: B228SE
• Horsepower: 1 Horsepower
• Material: Aluminum
• VoltageRating: 115/230 V
• MotorDesign: PSC
• FullLoadAmps: 6.0/12.0 A
• RPM: 3450
• ShaftDesign: Threaded
• MotorShaftRotation: CCWPE
• FlangeMaterial: Aluminum
• ShaftMaterial: 303 Stainless Steel
• MountingType: C-Face, No Base
• InsulationClass: B
• EfficiencyGroup: Standard
• HP: 1
• Type: Up-Rated, CX
• FrequencyRating: 60 Hz
• MotorThermalProtection: Auto
• Bearing Type: Ball
• EnclosureDesign: Open Dripproof
• ShaftLength: 2-9/16 Inch
• Application: Pool
• Motor Enclosure Type: Open Drip Proof
• Flange Type: Round
• Motor Speed: 1-Speed
• Motor Frame Size: 56J
• Manufacturer: Century A.O. Smith
• MPN: B228SE
• Minimum Pump Power Requirement: 1 hp
• Amperage: 12 A
• Compatible With: Regal Beloit America - Epc
