Regal Beloit B227SE Century Motor 0.75 hp Single Speed 115-230V

Product Description

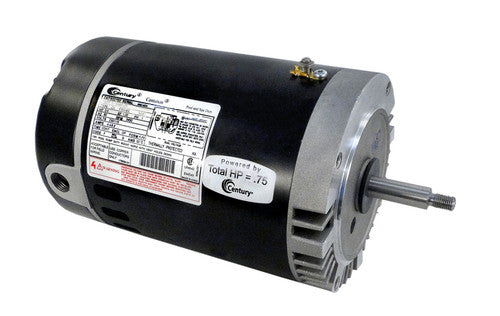

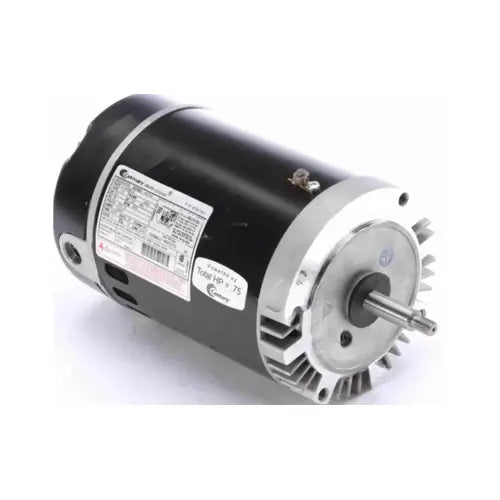

The Regal Beloit B227SE Century motor is a 0.75 HP single-speed motor designed for pool and spa pumps. It features a stainless steel shaft, open dripproof enclosure, and automatic thermal protection. This motor is a capacitor start, single-phase motor with a 56J frame and operates at 3450 RPM. It is designed for 115/230V applications.

• Single Phase motor with auto protector capacitor start
• Features a stainless steel shaft and open drip proof design
• Non-reversible rotation with CCW pump end

Product Highlights

The Regal Beloit B227SE is ideal for pool and spa pump applications requiring a reliable and efficient motor.

Product Information

Standard Information

• Brand: REGAL BELOIT
• Manufacturer Part Number: B227SE
• Country of Origin: China

Technical Specifications

• HP: 0.75
• RPM: 3450
• Voltage: 115/230
• Frequency Rating: 60 Hz
• Amps: 5. 5/11. 0
• Service Factor: 1. 0
• Mounting Type: Face Mount
• Frame: 56J
• Material: Stainless Steel
• Operating Voltage: 230 Volts
• Maximum Voltage: 230 Volts
• Upper Temperature Rating: 50 Degrees Celsius
• Item model number: B227SE
• Full Load Amps: 4.4/8.8 A
• Ambient Temperature: 50 deg C
• Finish: Black
• Ins. Class: B
• Motor Application: Pump
• Motor Bearings: Ball
• Motor Design: Permanent Split Capacitor
• Motor Efficiency Group: Standard Efficient
• Motor Enclosure Design: Open Dripproof
• Motor Flange Material: Aluminum
• Motor Service Factor: 1
• Motor Shaft Rotation: CCWSE
• Motor Sub Application: Pool and Spa Pump
• Motor Thermal Protection: Auto
• Nameplate RPM: 3450
• Phase: 1
• RPM Range: 3001-3600
• Shaft: Threaded 7/16-20 UNF-2A RH 11/16 in From End
• Shaft Diameter: 5/8 in
• Shaft Length: 2-9/16 in
• Shaft Material: 303 Stainless Steel
• Standards: CSA Certified (LR43341/LR94643), UL 1081 Approvable, UL Recognized (E44549/E25022)
• Voltage Compatibility: 115, 115/230, 120, 120/240, 230, 240
• Diameter: 6-1/2 Inch
• Type: Up-Rated, CX
• OverallLength: 12.56 Inch
• Bearing Type: Ball
• Frequency Rating (Hz): 60
• Item: Pool and Spa Pump Motor
• Standards Approvals: UL 1081 Approved, UL Recognized (E14663), CSA Certified (LR4642), Meets California Energy Commission Appliance Regulations 2008
• SubBrand: Century®
• Voltage Rating: 115/230 V
• ThrustHorsepower: 0.75
• ShaftDesign: Threaded
• DutyCycle: Continuous
• Efficiency Group: Standard
• NumberofSpeed: 1-Speed
• MotorShaftRotation: Counterclockwise Pulley End
• Application: Pool
• Horsepower: 0.75 horse power
• Motor Enclosure Type: Open Drip Proof
• Flange Type: Round
• Motor Speed: 1-Speed
• Motor Rating: Up-Rated
• Motor Frame Size: 56J
