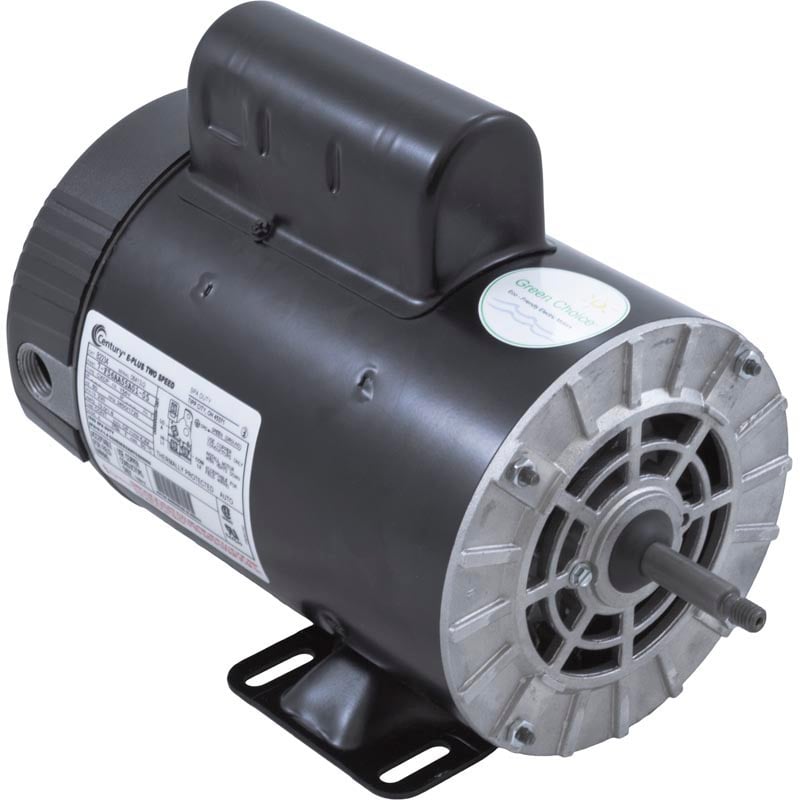

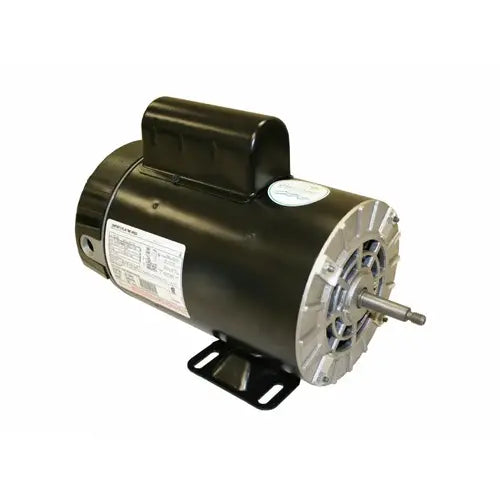

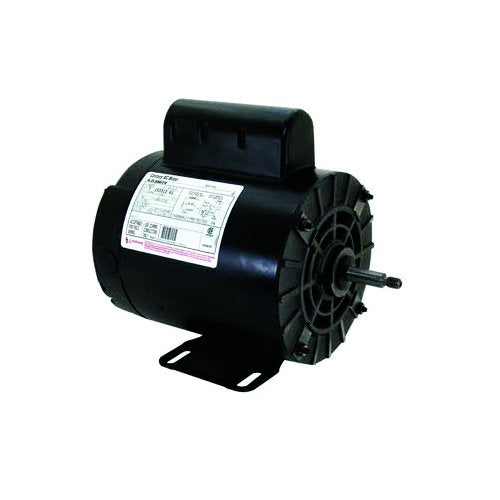

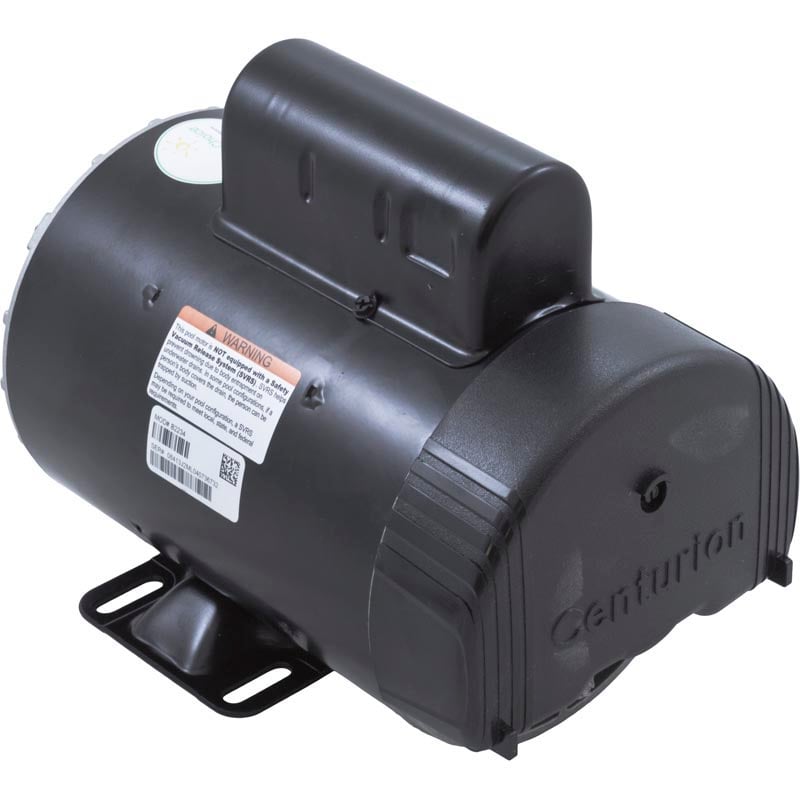

Regal Beloit B2234 AO Smith Motor 3HP 230V Dual Speed

Product Description

The Regal Beloit B2234 AO Smith Motor is a 3HP, 230V dual-speed motor suitable for various applications. It operates at 60 Hz and features a Y56Y frame, designed for continuous duty. The motor is thermally protected and has an open dripproof enclosure.

• Two Speed
• PSC on High Speed
• Cap Start/Cap Run on Low Speed
• Rigid Base

Product Highlights

This 3 HP motor is designed for spa and pool pump applications. It features a threaded shaft, open dripproof enclosure, and is dual speed.

Product Information

Standard Information

• Brand: REGAL BELOIT
• Manufacturer Part Number: B2234
• Country of Origin: China

Technical Specifications

• Manufacturer: Regal Beloit
• Brand: Regal Beloit
• Model / MPN: B2234
• Product Type: ELECTRIC_MOTOR
• Phase: 1
• Output HP: 3.0 / 0.38 SPL Hp
• Output KW: 2.2 kW
• Voltage: 230 V
• Speed: 3485/1745 rpm
• Service Factor: 1
• Frame: Y56Y
• Enclosure: Drip Proof
• Thermal Protection: Thermally Protected
• Ambient Temperature: 60 °C
• Frequency: 60 Hz
• Current: 10.0/1.8 A
• Duty: Continuous
• Insulation Class: F
• Number of Speeds: 2
• Electrical Type: Psc Low Speed, Cap Start/Cap Run High Speed
• Poles: 2/4
• Rotation: Counterclockwise Pump End
• Mounting: Thru Bolt
• Motor Orientation: Horizontal
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Type: 3/8 Threaded
• Overall Length: 12.74 in
• Frame Length: 8.00 in
• Shaft Diameter: 0.500 in
• Shaft Extension: 2.37 in
• UPC: 786674059994
• HTC: 8501.40.6040
• Motor Type: Spa
• Motor Amperage: 10.0A/1.8A
• Frame Type: 56Y
• Total Horsepower: 3.0thp
• Motor Shaft Type: Threaded
• Motor Style: Thru Bolt
• Capacitor On Top: Yes
• Bearing Type: Ball
• Efficiency Group: Standard
• Enclosure Design: Open Dripproof
• Flange Material: Aluminum
• Full Load Amps: 8.8/1.6 A
• HP: 3/0.38 SPL
• Item: Replacement Spa Motor
• Motor Design: Capacitor Start/Run on Low Speed, PSC on High Speed
• Motor Shaft Rotation: CCWPE
• Motor Thermal Protection: Auto
• Mounting Type: Thru-Bolt, Rigid Base
• Number of Speed: 2-Speed
• RPM: 3450/1725
• Shaft Design: Threaded
• Shaft Height: 3-1/2 Inch
• Shaft Length: 2-3/8 Inch
• Shaft Material: 303 Stainless Steel
• Sub Brand: Century®
• Type: Full-Rated, CXCP
• Voltage Rating: 230 V
• Diameter: 6-1/2 Inch
