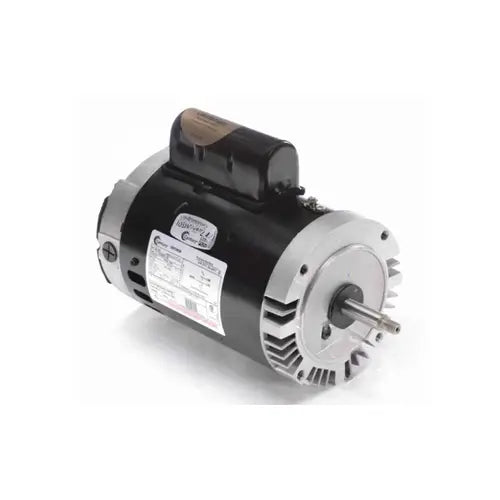

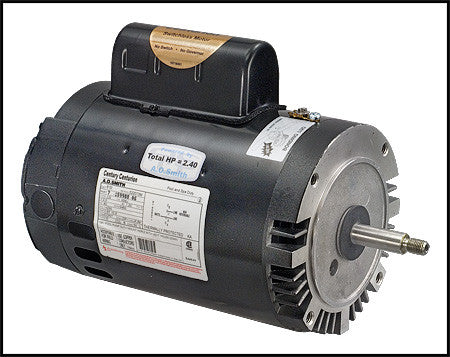

Regal Beloit B130 Pump Motor 2 HP Threaded Shaft

Product Description

The REGAL BELOIT B130 pump motor is a 2 HP motor with a threaded shaft, designed for pool and spa pump applications. It operates at 230V and 3450 RPM. This motor features an open dripproof enclosure and automatic thermal protection. It is UL 1081 approved and CSA certified.

• Switchless
• High service factor
• Aluminum NEMA "C" brackets
• 7/16-20 UNF-2A RH threaded shaft

Product Highlights

Full-rated pool and spa pump motor with a threaded shaft, ideal for various pool and spa applications.

Product Information

Standard Information

• Brand: REGAL BELOIT
• Manufacturer Part Number: B130
• Country of Origin: China

Technical Specifications

• Diameter: 6-1/2 Inch
• RPM: 3450
• Frame: 56J
• Type: Full-Rated, CX
• OverallLength: 13.10 Inch
• Phase: 1-Phase
• Bearing Type: Ball
• AmbientTemperature: 50 deg C
• FrequencyRating: 60 Hz
• FullLoadAmps: 10.5 A
• HP: 2
• Item: Pool and Spa Pump Motor
• MountingType: C-Face, No Base
• StandardsApprovals: UL 1081 Approved, CSA Certified
• SubBrand: Century®
• VoltageRating: 230 V
• EnclosureDesign: Open Dripproof
• FlangeMaterial: Aluminum
• ThrustHorsepower: 2.4
• ShaftDesign: Threaded
• InsulationClass: B
• ShaftLength: 2-1/16 Inch
• ShaftMaterial: 303 Stainless Steel
• ShaftDiameter: 5/8 Inch
• DutyCycle: Continuous
• MotorThermalProtection: Auto
• EfficiencyGroup: Standard
• NumberofSpeed: 1-Speed
• MotorDesign: PSC
• ServiceFactor: 1.20
• MotorShaftRotation: CCWPE
• Voltage: 230v
• Shaft Diameter: 0.625 inch
• Application: Above Ground,Pool,Spa
• Horsepower: 2 horse power
• Shaft Length: 2.0625 inch
• Motor Enclosure Type: Open Drip Proof
• Motor Speed: 1-Speed
• Ambient temperature: 50 degrees Celsius
• Motor Rating: Full-Rated
• Motor Frame Size: 56J
• RPMs Min: 3450
• RPMs Max: 3450
• Amps Low Speed: 10.5
• Frequency Rating (Hz): 60
• Motor Shaft Rotation: Counterclockwise Pulley End
• Amps High Speed: 10.5
• Motor Thermal Protection: Automatic Reset
