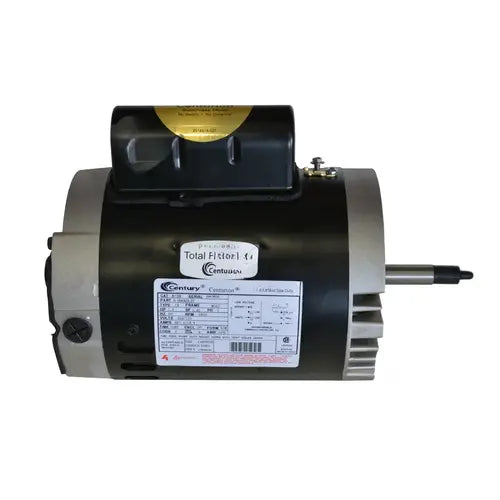

Regal Beloit B128 epc 1 hp threaded shaft motor

Product Description

The REGAL BELOIT B128 EPC is a 1 HP threaded shaft motor suitable for pool and spa pumps. It features a 304 stainless steel shaft and operates at 3450 RPM with voltage options of 230 & 115 Volts. The motor is designed with a 56J frame and open dripproof enclosure.

• Suitable for pool and spa pumps
• Features a 304 stainless steel shaft
• Operates at 3450 RPM

Product Highlights

This motor is ideal for pool and spa applications, offering a durable stainless steel shaft and efficient operation.

Product Information

Standard Information

• Brand: REGAL BELOIT
• Manufacturer Part Number: B128
• Country of Origin: China

Technical Specifications

• Brand: REGAL BELOIT AMERICA INC
• Item model number: B128
• RPM: 3450
• Frame: 56J
• Type: Full-Rated, CX
• OverallLength: 12.14 Inch
• Phase: 1-Phase
• Bearing Type: Ball
• AmbientTemperature: 50 deg C
• FrequencyRating: 60 Hz
• FullLoadAmps: 7.2/14.4 A
• HP: 1
• Item: Pool and Spa Pump Motor
• MountingType: C-Face, No Base
• SubBrand: Century®
• VoltageRating: 115/230 V
• EnclosureDesign: Open Dripproof
• FlangeMaterial: Aluminum
• ThrustHorsepower: 1.4
• ShaftDesign: Threaded
• InsulationClass: B
• ShaftLength: 2-9/16 Inch
• ShaftMaterial: 303 Stainless Steel
• ShaftDiameter: 5/8 Inch
• DutyCycle: Continuous
• MotorThermalProtection: Auto
• EfficiencyGroup: Standard
• NumberofSpeed: 1-Speed
• MotorDesign: PSC
• ServiceFactor: 1.40
• MotorShaftRotation: CCWPE
• Voltage: 115V,230V
• Application: Above Ground,Pool,Spa
• Horsepower: 1 horse power
• Motor Enclosure Type: Open Drip Proof
• Motor Speed: 1-Speed
• Ambient temperature: 50 degrees Celsius
• Insulation Class: B
• Flange Material: Aluminum
• Service Factor: 1.4
• Motor Rating: Full-Rated
• Motor Frame Size: 56J
• RPMs Min: 3450
• RPMs Max: 3450
• Amps Low Speed: 7.2
• Frequency Rating (Hz): 60
• Motor Shaft Rotation: Counterclockwise Pulley End
• Amps High Speed: 14.4
• Motor Thermal Protection: Automatic Reset
• Model: B128
• Height: 9.3 in
• MPN: B128
• StandardsApprovals: UL 1081 Approved, UL Recognized (E14663), CSA Certified (LR4642)
