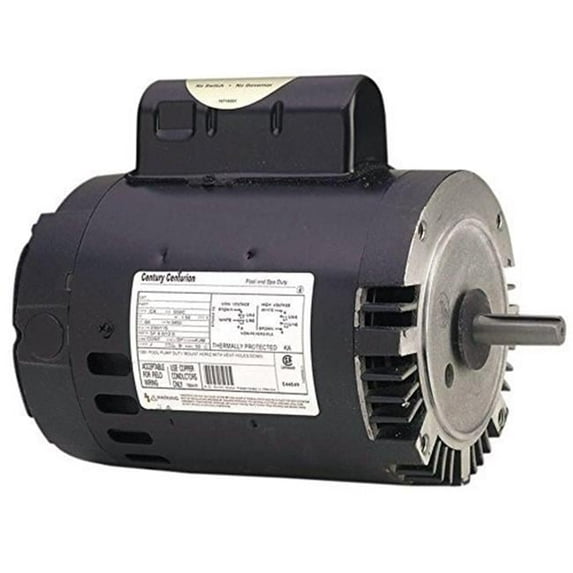

Regal Beloit B127 .75hp 115/230v 56j Odp Threaded Motor

Product Description

The REGAL BELOIT B127 is a full-rated pool and spa pump motor operating at 0.75 HP and 3450 RPM with a 115/230 V power supply. It features a 56J frame and a threaded shaft. Designed for continuous duty, this motor is thermally protected with automatic reset and has an open dripproof enclosure.

• High service factor of 1.50
• Aluminum NEMA "C" brackets for mounting
• 7/16-20 UNF-2A RH threaded shaft

Product Highlights

Ideal for pool and spa pumps, this motor ensures efficient performance with its robust design and reliable thermal protection.

Product Information

Standard Information

• Brand: REGAL BELOIT
• Manufacturer Part Number: B127
• Country of Origin: Thailand

Technical Specifications

• Diameter: 6-1/2 Inch
• RPM: 3450
• Frame: 56J
• Type: Full-Rated, CX
• OverallLength: 12.01 Inch
• Brand: Regal Beloit
• Phase: 1 Phase (1ph)
• Bearing Type: Ball
• AmbientTemperature: 50 deg C
• FinishColor: Black
• FrequencyRating: 60 Hz
• FullLoadAmps: 6.0/12.0 A
• HP: 0.75
• Item: Pool and Spa Pump Motor
• MountingType: C-Face, No Base
• StandardsApprovals: UL 1081 Approved, UL Recognized (E14663), CSA Certified (LR4642)
• SubBrand: Century®
• VoltageRating: 115/230 V
• EnclosureDesign: Open Dripproof
• FlangeMaterial: Aluminum
• ThrustHorsepower: 1.13
• ShaftDesign: Threaded
• InsulationClass: B
• ShaftLength: 2-9/16 Inch
• ShaftMaterial: 303 Stainless Steel
• ShaftDiameter: 5/8 Inch
• DutyCycle: Continuous
• MotorThermalProtection: Auto
• EfficiencyGroup: Standard
• NumberofSpeed: 1-Speed
• MotorDesign: PSC
• ServiceFactor: 1.50
• MotorShaftRotation: CCWPE
• Voltage: 115V,230V
• Application: Above Ground,Pool,Spa
• Horsepower: 0.75 horse power
• Shaft Length: 2.5625 inch
• Motor Enclosure Type: Open Drip Proof
• Motor Speed: 1-Speed
• Ambient temperature: 50 degrees Celsius
• Flange Material: Aluminum
• Motor Rating: Full-Rated
• Motor Frame Size: 56J
• RPMs Min: 3450
• Shaft Design: Threaded
• RPMs Max: 3450
• Amps Low Speed: 6
• Frequency Rating (Hz): 60
• Motor Shaft Rotation: Counterclockwise Pulley End
• Amps High Speed: 12
• Standards Approvals: CSA Certified
• Motor Thermal Protection: Automatic Reset
• Compatibility: Hayward
• Pool heater & heater pump part & accessory type: Pool Pump Motor
• Model: B127
• Flange Type: J Flange
• Motor Frame: 56J
• Horse Power: 0.75 HP
• Output KW: 0.56 kW
• Speed: 1 Speed (1-Spd)
• Enclosure: Drip Proof
• Thermal Protection: Thermally Protected
• Frequency: 60 Hz
• Current: SF 6.0/12.0 A
• UL: Recognized
• CSA: Y
• Number of Speeds: 1
• Electrical Type: Permanent Split Capacitor, Single Or Dual Voltage
• Poles: 2
• Rotation: Counterclockwise Pump End
• Mounting: C Face
• Motor Orientation: Horizontal
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Type: 7/16 THREADS
• Frame Length: 6.38 in
• Shaft Extension: 2.57 in
• Motor Type: Pool
• Motor Amperage: 12.0A/6.0A
• Total Horsepower: 1.1thp
• Motor Shaft Type: Threaded
• Motor Style: C-Face
• Capacitor On Top: Yes
• Manufacturer: Century
• Output HP: 3/4 Hp
