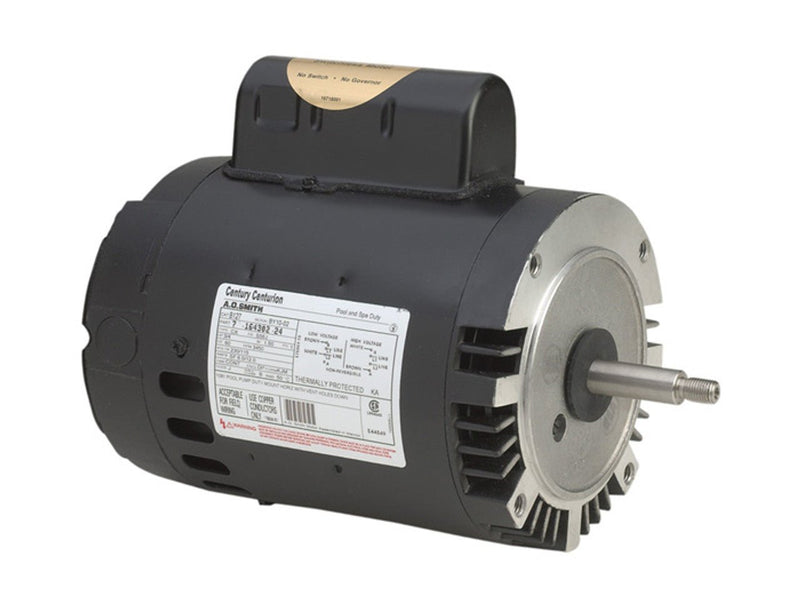

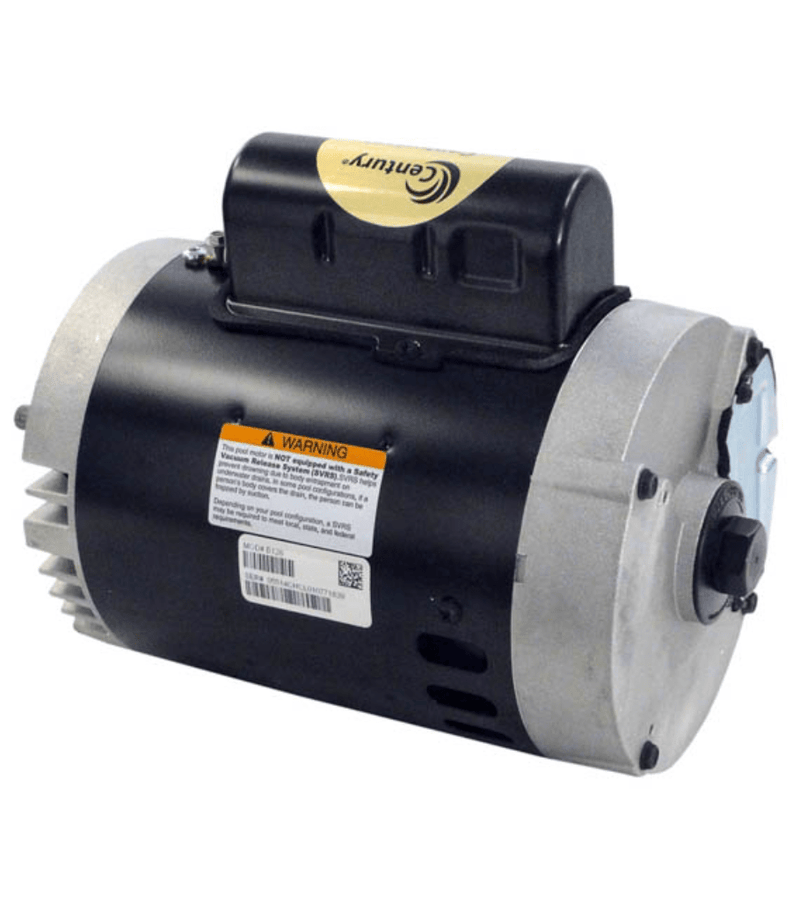

Regal Beloit B126 Motor 1/2 HP 3450 RPM 56J 115/230V REPLACEMENT 18330

Product Description

The REGAL BELOIT B126 is a 1/2 HP motor operating at 3450 RPM with a 56J frame and a voltage of 115/230V. Designed for pool and spa pump applications, it features a threaded shaft and an open dripproof enclosure. The motor is thermally protected and has a full load amps rating of 8.8/4.4.

• New OEM Original
• High service factor
• Aluminum NEMA "C" brackets

Product Highlights

This motor is suitable for pool and spa pump duty applications. It has a 56J frame with a 5/8 (in.) shaft diameter and ball bearings.

Product Information

Standard Information

• Brand: REGAL BELOIT
• Manufacturer Part Number: B126

Technical Specifications

• OEM: Regal Beloit America, Inc. (Century Electric Motors)
• OEM #: B126
• Ambient Temperature: 50 Degrees C
• Finish: Black
• Frame: 56J
• Full Load Amps: 8.8/4.4 A
• HP: 1/2
• Hz: 60
• Insulation Class: B
• Motor Application: Pump
• Motor Bearings: Ball
• Motor Design: Permanent Split Capacitor
• Motor Efficiency Group: Standard Efficient
• Motor Enclosure Design: Open Dripproof
• Motor Flange Material: Aluminum
• Motor Mounting Type: Face
• Motor Service Factor: 1.6
• Motor Shaft Rotation: CCWSE
• Motor Sub Application: Pool and Spa Pump
• Motor Thermal Protection: Auto
• Nameplate RPM: 3450
• Phase: 1
• RPM Range: 3001-3600
• Shaft: Threaded 7/16-20 UNF-2A RH 11/16 in From End
• Shaft Diameter: 5/8 Inch
• Shaft Length: 2-9/16 Inch
• Shaft Material: 303 Stainless Steel
• Standards: CSA Certified (LR43341/LR94643), UL 1081 Approvable, UL Recognized (E44549/E25022)
• Voltage: 115/230 V
• Voltage Compatibility: 115, 115/230, 120, 120/240, 230, 240
• RPM: 3450
• Type: Full-Rated, CX
• OverallLength: 11.94 Inch
• Brand: Regal Beloit
• FrequencyRating: 60 Hz
• ThrustHorsepower: 0.8
• DutyCycle: Continuous
• EfficiencyGroup: Standard
• NumberofSpeed: 1-Speed
• MotorRating: Full-Rated
• MotorSpeed: 1-Speed
• MotorShaftType: Threaded
• MotorStyle: C-Face
• MotorAmperage: 8.8A/4.4A
• Horsepower: 0.5 HP
