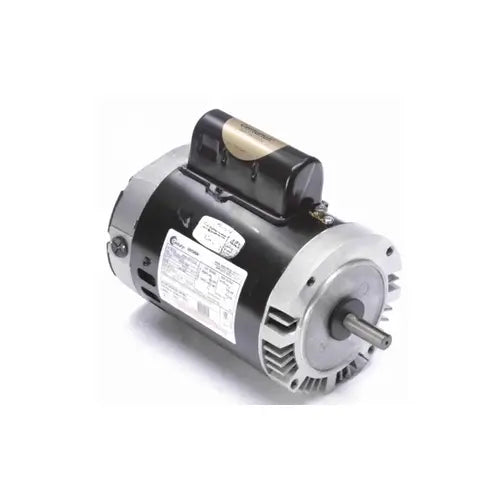

Regal Beloit B122 Motor 1 HP 3450 RPM 56C 115/230V

Product Description

The REGAL BELOIT B122 motor is a 1 HP, 115/230V motor with a speed of 3450 RPM and a 56C frame. This motor is designed for pump applications, specifically pool and spa pumps. It features an open dripproof enclosure and automatic thermal protection.

• Keyed shaft design
• Open dripproof enclosure
• Automatic thermal protection

Product Highlights

This REGAL BELOIT motor is ideal for pool and spa pump applications requiring a reliable and efficient motor.

Product Information

Standard Information

• Brand: REGAL BELOIT
• Manufacturer Part Number: B122

Technical Specifications

• Brand: REGAL BELOIT AMERICA INC
• Model Name: america
• Voltage: 115/230
• Horsepower: 1 Horsepower
• Item: Pool and Spa Pump Motor
• OEM: Regal Beloit America, Inc. (Century Electric Motors)
• OEM #: B122
• Ambient Temperature: 50 deg C
• Finish: Black
• Frame: 56C
• Full Load Amps: 14.4/7.2
• HP: 1
• Hz: 60
• Ins. Class: B
• Motor Application: Pump
• Motor Bearings: Ball
• Motor Design: Permanent Split Capacitor
• Motor Efficiency Group: Standard Efficient
• Motor Enclosure Design: Open Dripproof
• Motor Flange Material: Aluminum
• Motor Mounting Type: Face
• Motor Service Factor: 1.4
• Motor Shaft Rotation: CCWSE
• Motor Sub Application: Pool and Spa Pump
• Motor Thermal Protection: Automatic Reset
• Nameplate RPM: 3450
• Phase: 1-Phase
• RPM Range: 3001-3600
• Shaft: Keyed
• Shaft Diameter: 5/8 in
• Shaft Length: 2-1/16 in
• Shaft Material: AISI 1215 Steel
• Standards: CSA Certified (LR43341/LR94643), UL 1081 Approvable, UL Recognized (E44549/E25022)
• Voltage Compatibility: 115, 115/230, 120, 120/240, 230, 240
• VoltageRating: 115/230 V
• DutyCycle: Continuous
• Service Factor: 1.40
• SubBrand: Century®
• RPM: 3450
• MotorShaftRotation: CCWPE
• MountingType: C-Face, No Base
• InsulationClass: B
• EfficiencyGroup: Standard
• Type: Full-Rated, CX
• OverallLength: 11.89 Inch
• Diameter: 6-1/2 Inch
• Bearing Type: Sealed Ball
• Motor Enclosure Type: Open Drip Proof
• Motor Speed: 1-Speed
• Ambient temperature: 50 degrees Celsius
• Flange Material: Aluminum
• Motor Rating: Full-Rated
• Motor Frame Size: 56C
• Shaft Design: Keyed
• Frequency Rating (Hz): 60
• Application: Above Ground,Pool,Spa
• FrequencyRating: 60 Hz
