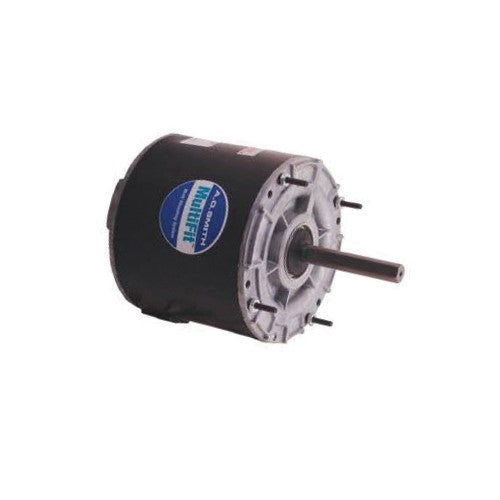

Regal Beloit 9724 Century Multifit Condenser Fan Motor 1/4, 1/5, 1/6 Hp

Product Description

The Regal Beloit 9724 Century Multifit Condenser Fan Motor is ideal for various condenser fan applications. This motor operates on 208-230 volts at a frequency of sixty hertz and can reach speeds of sixteen hundred twenty-five revolutions per minute. It has a totally enclosed air over design for enhanced durability and features automatic thermal protection. The ambient temperature capability extends up to seventy degrees Celsius.

• MultiFit design accommodates different fan applications.
• Extended studs for straightforward installation.
• Ball bearings ensure reliable and long-lasting performance.

Product Highlights

The motor is versatile and suitable for a wide range of condenser fan setups, ensuring efficient cooling operations.

Product Information

Standard Information

• Model: 9724
• Brand: Regal Beloit

Technical Specifications

• Phase: 1
• Output HP: 1/4, 1/5, 1/6 Hp
• Voltage: 208-230 V
• Speed: 1625 rpm
• Service Factor: 1
• Frame: 42
• Enclosure: Totally Enclosed
• Thermal Protection: Automatic
• Ambient Temperature: 70 °C
• Frequency: 60 Hz
• Current: 1.4 A
• Duty: Air Over
• Insulation Class: F
• UL Recognized: Yes
• CSA Certified: Yes
• Starting Method: Across The Line
• Poles: 4
• Rotation: Reversible
• Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Type: Flat
• Overall Length: 7.50 in
• Shaft Diameter: 0.500 in
• Shaft Extension: 3.0 in
• Country of Origin: IN, MX
• Shaft Size: 1/2 in Dia x 3 in L
