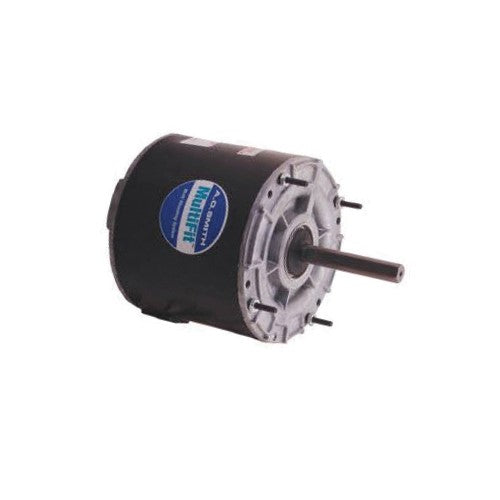

Regal Beloit 9724 Century MultiFit Condenser Fan AC Motor, 1/4 to 1/6 hp, 208 to 230 VAC, 60 Hz, 1 ph, NEMA 42

Product Description

The Regal Beloit 9724 Century MultiFit Condenser Fan AC Motor is designed for commercial and residential applications. This motor operates at one-quarter to one-sixth horsepower, with a voltage rating of two hundred eight to two hundred thirty volts AC at sixty hertz. It features a NEMA 42 frame and a speed of one thousand six hundred twenty-five rpm.

• Multi-application condenser fans
• Energy efficient PSC design
• Multi mounting system

Product Highlights

This AC motor is suitable for various condenser fan applications and is designed for continuous duty.

Product Information

Standard Information

• Brand: Regal Beloit
• MPN: 9724

Technical Specifications

• Amperage Rating: 1.6 A
• Application Type: Condenser Fan Motors
• Bearing Type: Ball
• Country of Origin: Mexico
• Dimensions: 5 in Dia
• Enclosure Type: Enclosed
• Frame: NEMA 42
• Frequency Rating: 60 Hz
• Horsepower: 1/4 to 1/6 hp
• Insulation Class: Class B
• Mfg Standards/Approvals: CSA Certified, UL Listed
• Number of Phases: 1 ph
• Number of Speeds: 1
• Package Weight: 12.0 lb
• Rotation: Reversible
• Service Factor: 1
• Shaft Size: 1/2 in Dia x 3 in L
• Speed: 1625 rpm
• Temperature Rating: 60 deg C
• Voltage Rating: 208 to 230 VAC
