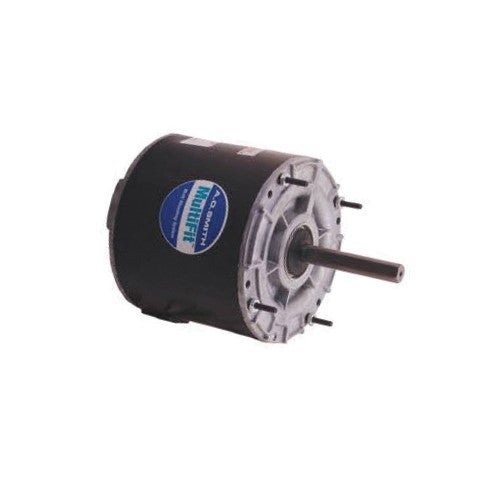

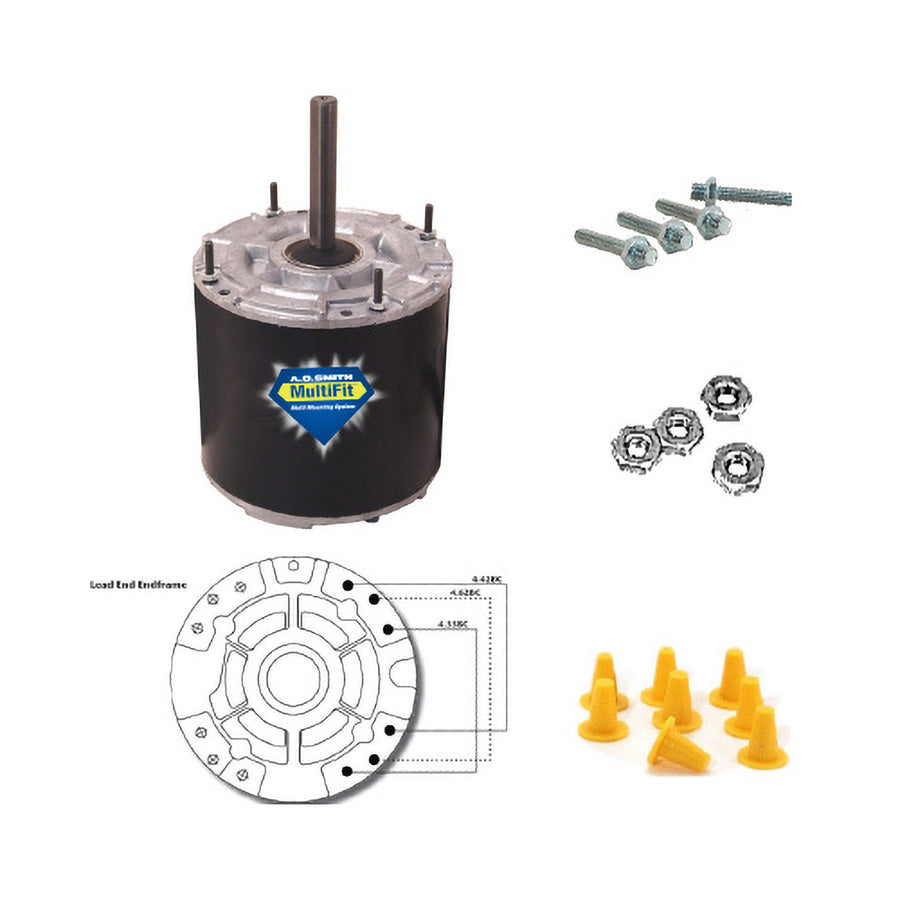

Regal Beloit 9723 Condenser Fan Motor, 1/4-1/6 hp 5 208-230 PSC Totally Enclosed Reversible

Product Description

The Regal Beloit 9723 is a condenser fan motor that provides reliable and efficient performance for HVAC applications. Designed with versatility in mind, this motor supports multiple horsepower settings, making it suitable for various condenser fan installations.

• Multi-horsepower design
• Reversible rotation feature
• Built to last with double sealed ball bearings

Product Highlights

This condenser fan motor is designed for tough conditions and is energy efficient, ensuring optimal performance in cooling systems.

Product Information

Standard Information

• Brand: Regal Beloit
• Part Number: 9723

Technical Specifications

• Horsepower: 1/4, 1/5, 1/6 hp
• Voltage Rating: 208 to 230 VAC
• Frequency Rating: 60 Hz
• Amperage Rating: 2 A
• Dimensions: 5 inches diameter
• Enclosure Type: Enclosed
• Frame: NEMA 42
• Speed: 1075 rpm
• Rotation: Reversible
• Temperature Rating: 60 °C
• Service Factor: 1
• Shaft Size: 1/2 inch diameter x 3 inches length
• Bearing Type: Ball
• Insulation Class: Class B
• Mfg Standards/Approvals: CSA LR43341, UL E46412
• Application Type: Condenser Fan Motors
• Number of Phases: 1
• Number of Speeds: 1
