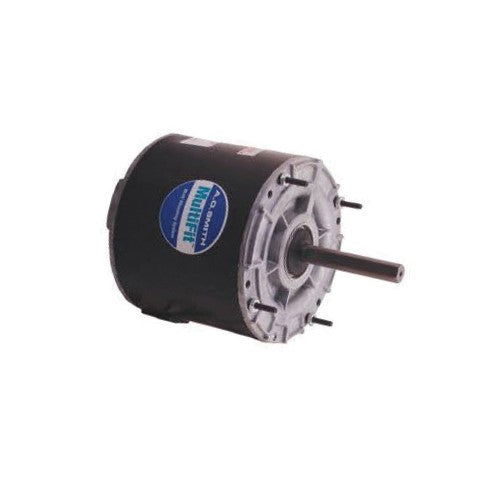

Regal Beloit 9722 Century MultiFit Condenser Fan AC Motor, 1/8 to 1/12 hp, 208 to 230 VAC

Product Description

The Regal Beloit 9722 is a Century MultiFit condenser fan AC motor. This motor operates at one eighth to one twelfth horsepower and works with a voltage range of two hundred eight to two hundred thirty VAC. It is a single-phase motor designed for continuous duty applications.

• Multi-application condenser fans
• Energy efficient PSC design
• Double sealed ball bearing for dependable long-life

Product Highlights

This motor features a multi-mounting system and is suitable for various condenser fan models. The unit is designed to meet high standards for energy efficiency.

Product Information

Standard Information

• Brand: Regal Beloit
• Part #: L6393

Technical Specifications

• Amperage Rating: 0.9 A
• Application Type: Condenser Fan Motors
• Bearing Type: Ball
• Dimensions: 5 inches in diameter
• Enclosure Type: Enclosed
• Frame: NEMA 42
• Frequency Rating: 60 Hz
• Horsepower: 1/8 to 1/12 hp
• Insulation Class: Class B
• Mfg Standards/Approvals: CSA Certified, UL Listed
• Number of Phases: 1 ph
• Number of Speeds: 1
• Package Weight: 9.8 lb
• Rotation: Reversible
• Service Factor: 1
• Shaft Size: 1/2 inches in diameter x 3 inches long
• Speed: 1075 rpm
• Temperature Rating: 60 degrees C
• Voltage Rating: 208 to 230 VAC
