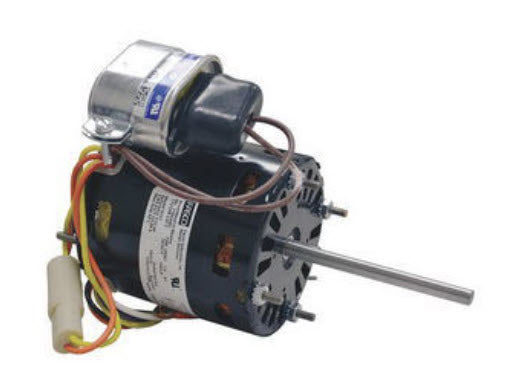

Regal Beloit 9721 Century 3-in-1 Evaporator Fan Motor, Open Enclosure, 1/12, 1/15, 1/20 hp, 115/208 to 230 VAC

Product Description

The Regal Beloit 9721 is a Century 3-in-1 evaporator fan motor designed for various applications. This motor operates at 1/12, 1/15, and 1/20 horsepower with a voltage range of 115/208 to 230 VAC. It features an open enclosure and operates at a speed of 1550 RPM. This versatile motor is suitable for both fan and blower applications.

• Multiple horsepower ratings for flexibility
• Energy-efficient PSC design
• Ball bearing construction for long operation life

Product Highlights

This evaporator fan motor improves efficiency and reduces downtime during motor replacements.

Product Information

Standard Information

• Brand: Regal Beloit
• Part Number: K6414

Technical Specifications

• Amperage Rating: 0.5 A
• Application Type: Fan & Blower Motors
• Bearing Type: Ball
• Dimensions: 3.3 inches diameter
• Enclosure Type: Open
• Frame: NEMA 3.3
• Frequency Rating: 50/60 Hz
• Horsepower: 1/12, 1/15, 1/20 hp
• Insulation Class: Class B
• Number of Speeds: 1
• Phase: 1 ph
• Rotation: Reversible
• Service Factor: 1
• Shaft Size: 5/16 inches diameter x 3-1/4 inches length
• Speed: 1550 RPM
• Temperature Rating: -40 degrees F
• Voltage Rating: 115/208 to 230 VAC
