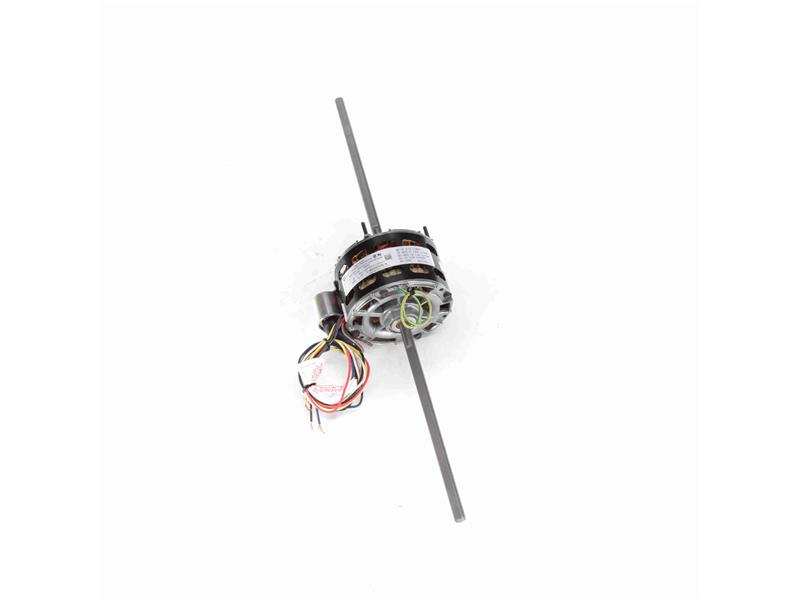

Regal Beloit 9408 Fan Coil Air Conditioner Blower Motor 115V 1550RPM 4-speed 42 Frame

Product Description

The Regal Beloit 9408 is a multi-horsepower fan coil and air conditioner blower motor built for residential and light commercial HVAC systems. This motor is rated at 115 volts, single phase, 60 Hz, and runs at 1550 RPM. It offers four selectable speed taps, giving technicians the flexibility to match airflow to a wide range of fan coil units and air handler configurations. The motor carries multiple horsepower ratings including 1/8, 1/10, 1/15, and 1/20 HP, making it compatible with a broad spectrum of equipment in the field. It is built on a 42 frame, a standard NEMA size widely used in HVAC blower motor applications. The open air-over (OAO) enclosure is designed to work in moving-air environments where the airstream provides the primary cooling for the motor windings. This makes it well suited for installation inside fan coil cabinets, air handlers, and packaged terminal air conditioners where continuous airflow is present during operation. HVAC technicians rely on motors like the 9408 when replacing failed or underperforming blower motors in fan coil units. The four-speed design allows the installer to select the correct tap for the required CFM output without sourcing a different motor. The 42 frame standardization means mounting dimensions are predictable and consistent across many OEM applications. At 9 pounds, this motor is straightforward to handle during installation. Regal Beloit, through its Century Motors line, is a recognized manufacturer of fractional horsepower motors used throughout the HVAC, refrigeration, and air handling industries. The 9408 is a direct replacement motor stocked by HVAC supply houses and used by service technicians for fan coil motor replacement, air conditioner blower motor swap-out, and air handler motor repair across a wide range of systems.

• Four-speed motor with selectable taps for flexible CFM matching in fan coil and air handler applications
• Multi-horsepower rated at 1/8, 1/10, 1/15, and 1/20 HP on a standard 42 NEMA frame for broad OEM compatibility
• Open air-over (OAO) enclosure designed for inside-cabinet installation where airstream cooling is available

Product Highlights

The Regal Beloit 9408 is a versatile 4-speed, multi-HP blower motor on a 42 frame, built for fan coil and air conditioner replacement applications requiring 115V single-phase power at 1550 RPM.

Product Information

Standard Information

• Brand: REGAL BELOIT
• Manufacturer Part Number: 9408

Technical Specifications

• Voltage: 115V
• Phase: Single Phase
• Frequency: 60 Hz
• Speed: 1550 RPM
• Number of Speeds: 4
• Horsepower Options: 1/8, 1/10, 1/15, 1/20 HP
• Frame: 42
• Enclosure Type: Open Air-Over (OAO)
• Application: Fan Coil, Air Conditioner
• Weight: 9 pounds
