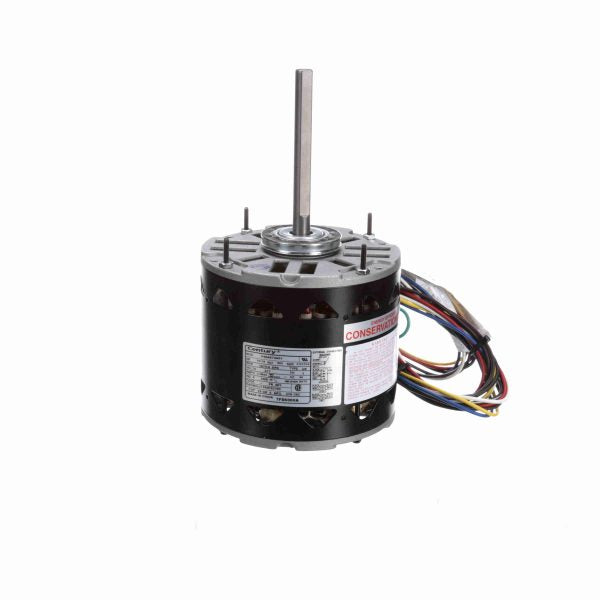

REGAL BELOIT 7FD6000A Century Masterfit Pro Fan and Blower Motor 1/2-1/6 HP

Product Description

The Regal Beloit 7FD6000A Century Masterfit Pro is a direct drive fan and blower motor designed for various HVAC applications. This motor operates at a power range of one-half to one-sixth horsepower. It features a durable construction with a five-point six inches diameter and 48 frame.

• Permanent split capacitor motor with thermal protection
• Open air over design suitable for continuous use
• Includes a capacitor for immediate use

Product Highlights

This motor is equipped with a flat shaft and quick connect terminals, simplifying installation and reducing setup time.

Product Information

Standard Information

• Brand: Regal Beloit
• MPN: 7FD6000A

Technical Specifications

• Phase: 1
• Output HP: 1/2-1/6 HP
• Output KW: 0.37 kW
• Voltage: 277 V
• Speed: 1075 rpm
• Service Factor: 1.0
• Frame: 48Y
• Enclosure: Open Air Over
• Thermal Protection: Automatic
• Ambient Temperature: 40 degrees Celsius
• Frequency: 60 Hz
• Current: 3.8 A
• Duty: Air Over
• Insulation Class: B
• UL: Recognized
• CSA: Y
• CE: N
• Number of Speeds: 4
• Electrical Type: Permanent Split Capacitor
• Starting Method: Across The Line
• Poles: 6
• Rotation: Reversible
• Mounting: Resilient Ring/Extended Studs
• Motor Orientation: Horizontal
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Type: Flat
• Overall Length: 10.36 inches
• Frame Length: 4.25 inches
• Shaft Diameter: 0.500 inches
• Shaft Extension: 5.0 inches
