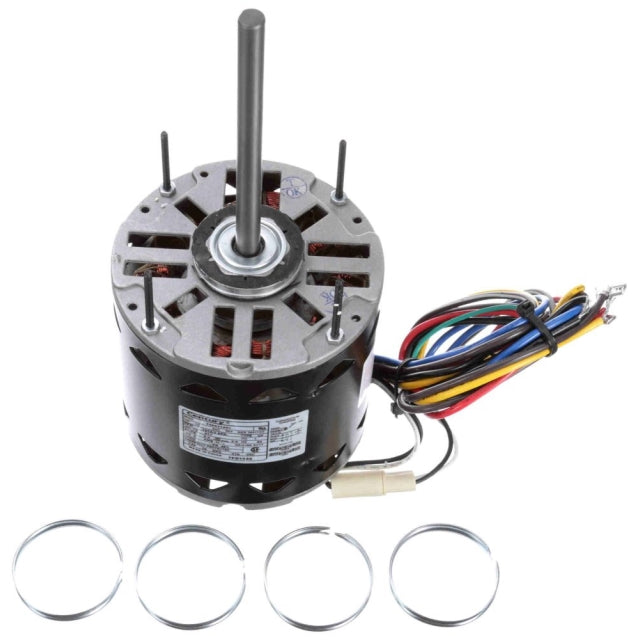

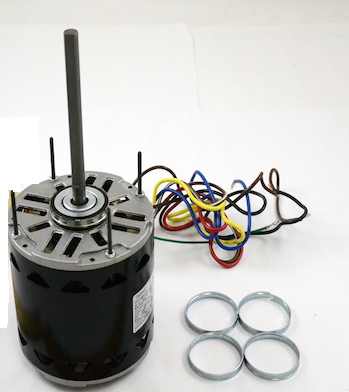

REGAL BELOIT 7FD1056 Century Fan and Blower Motor 1/2 HP 1 Ph 60 Hz 277 V

Product Description

The Regal Beloit 7FD1056 Century Fan and Blower Motor is a direct drive motor suitable for various HVAC applications. This motor features a 5.6 inch diameter and a 48 frame size. It operates on a voltage of two hundred seventy-seven volts and has a power output of half a horsepower.

• Requires a 10 Mfd-370 Volts capacitor (not included)
• Thermally protected with class B insulation
• Upgraded from sleeve bearing to ball bearing design

Product Highlights

This model is designed for reliable performance, easy installation, and durability in demanding environments.

Product Information

Standard Information

• Phase: 1
• Output HP: 1/2 HP

Technical Specifications

• Voltage: 277 V
• Speed: 1075 RPM
• Frame Size: 48Y
• Enclosure Type: Open
• Thermal Protection: Automatic
• Amb Temp: 50 °C
• Frequency: 60 Hz
• Current: 2.2 A
• Insulation Class: B
• Number of Speeds: 3
• Starting Method: Across The Line
• Rotation: Reversible
• Drive End Bearing: Ball
• Shaft Diameter: 0.500 in
