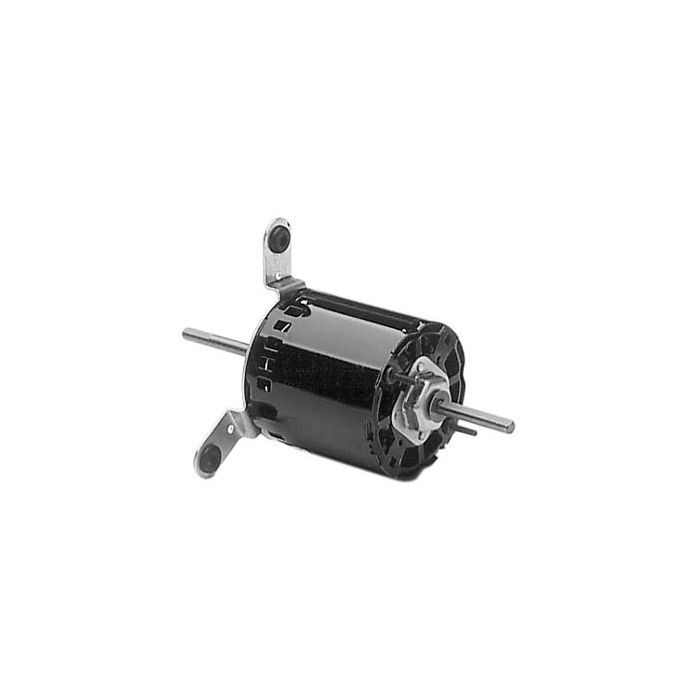

Regal Beloit 659 Double Shaft Motor 1/18 Hp 1330 Rpm 115V 3.4A 5/16 Inch Shaft

Product Description

The Regal Beloit 659 is a double shaft electric motor built for HVAC and light-duty mechanical applications where a compact, reliable drive unit is required. With a rated output of 1/18 horsepower, this motor operates at 1330 RPM and draws 3.4 amps at 115 volts. The double shaft design allows the motor to drive loads from both ends simultaneously, making it a practical choice for damper actuators, blower assemblies, draft inducers, and other equipment where dual-end mechanical output is needed. HVAC technicians and equipment service professionals rely on double shaft motors like the 659 when performing direct replacements on residential and light commercial units. The 5/16 inch shaft diameter is a standard size that fits a wide range of drive couplings, pulleys, and fan hubs used throughout the industry. Operating on standard 115 volt single phase power, this motor integrates easily into existing electrical systems without the need for special wiring configurations. The compact design and modest current draw make it suitable for applications where space and power availability are limited. Regal Beloit is a well-established manufacturer in the motor and drive industry, producing components trusted by technicians in HVAC, refrigeration, and related mechanical trades. The 659 is sold as a single unit and is intended for direct installation or use as a drop-in replacement for compatible OEM applications. When sourcing a replacement motor, matching shaft diameter, voltage, amperage, RPM, and shaft configuration to the original unit is essential for correct operation and long service life.

• Double shaft design allows mechanical output from both ends of the motor
• Rated at 1/18 HP, 1330 RPM, 3.4 amps on 115 volt single phase power
• 5/16 inch shaft diameter fits standard HVAC and mechanical drive components

Product Highlights

The Regal Beloit 659 double shaft motor delivers reliable low-horsepower drive performance for HVAC and mechanical applications, combining a standard 115 volt input with a dual-end 5/16 inch shaft for versatile installation.

Product Information

Standard Information

• Brand: REGAL BELOIT
• Manufacturer Part Number: 659

Technical Specifications

• Motor Type: Double Shaft
• Horsepower: 1/18 HP
• Speed: 1330 RPM
• Voltage: 115V
• Amperage: 3.4 A
• Shaft Diameter: 5/16 inches
• Unit of Measure: Each
