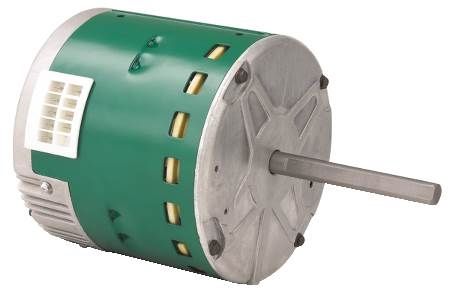

Regal Beloit 6203E Genteq by Diversitech Evergreen Blower Motor 1/3 hp 208 to 230 VAC

Product Description

The Regal Beloit 6203E Genteq by Diversitech Evergreen Blower Motor is designed for use in residential and light commercial applications. This motor operates at one-third horsepower and is compatible with voltage ratings between two hundred eight to two hundred thirty VAC. With a speed of one thousand seventy-five revolutions per minute, this motor meets various installation needs effectively.

• Multi-speed, efficient operation
• Reversible motor direction
• Standard replacement for ECM motors

Product Highlights

This motor features a soft start and off ramp for quiet operation. It is ideal for upgrading or retrofitting packaged heat pump systems and VAV boxes.

Product Information

Standard Information

• Brand: Regal Beloit
• MPN: 6203E

Technical Specifications

• Horsepower: 1/3 hp
• Speed: 1075 rpm
• Voltage Rating: 208 to 230 VAC
• Amperage Rating: 2.8 FLA
• Frequency Rating: 50/60 Hz
• Frame: NEMA 48
• Rotation: Reversible
• Mounting Style: Belly Band
• Dimensions: 5.58 in Dia x 10.17 in L
• Warranty: 2 Years
• Certifications: CSA Certified, UL Listed
