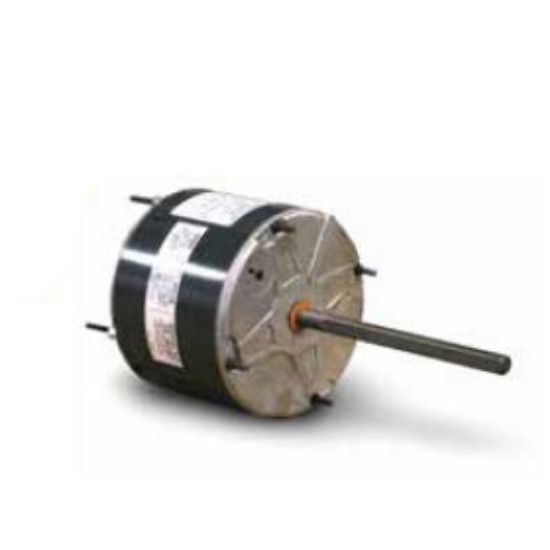

Regal Beloit 3459 Standard Condenser Fan Motor 1/3 to 1/8 Hp 825 Rpm 208-230V 5.5 Inches 48Y Frame

Product Description

The Regal Beloit 3459 is a standard condenser fan motor built for reliable performance in residential and light commercial HVAC applications. This single-speed motor operates at 825 RPM and runs on 208V or 230V power, making it compatible with a wide range of condensing units commonly found in the field. It delivers a horsepower range of 1/3 to 1/8 HP, giving HVAC technicians flexibility when replacing motors in various condenser configurations. The 3459 features a 48Y frame size and measures 5.5 inches in diameter, fitting standard condenser fan motor mounting brackets without modification. The motor draws 1.9 amps and uses a permanent split capacitor design, which provides smooth startup and efficient operation under sustained load. A totally enclosed, air-over motor enclosure protects internal components from dust, debris, and moisture that are common in outdoor condenser environments. Ball bearings support the shaft for long service life and reduced friction during continuous operation. Automatic thermal overload protection shuts the motor down if it overheats, preventing damage and extending motor life in demanding conditions. The motor includes 36-inch leads, providing enough wire length to reach terminal blocks and connection points in most standard condenser cabinets. Reversible rotation allows the technician to configure shaft direction to match the specific unit being serviced. A removable drain plug helps prevent moisture buildup inside the enclosure. HVAC service professionals, mechanical contractors, and equipment installers rely on motors like the Regal Beloit 3459 for direct replacement work on residential condensers, rooftop units, and split system air conditioners. This motor is a go-to stock item for HVAC supply houses and service fleets.

• Permanent split capacitor design for smooth, efficient single-speed operation at 825 RPM
• Totally enclosed, air-over enclosure with ball bearings and automatic thermal overload protection
• Reversible rotation and 36-inch leads for flexible field installation

Product Highlights

The Regal Beloit 3459 condenser fan motor offers a practical combination of thermal protection, reversible rotation, and a totally enclosed enclosure, making it a dependable direct replacement for 48Y frame condenser fan applications running on 208V or 230V systems.

Product Information

Standard Information

• Brand: REGAL BELOIT
• Manufacturer Part Number: 3459

Technical Specifications

• Horsepower: 1/3 to 1/8 HP
• Speed: 1-Speed
• RPM: 825
• Voltage: 208V/230V
• Amperage: 1.9 A
• Frame Size: 48Y
• Diameter: 5.5 inches
• Motor Enclosure: Totally Enclosed, Air Over
• Bearing Type: Ball Bearing
• Lead Length: 36 inches
• Rotation: Reversible
• Motor Type: Permanent Split Capacitor
• Overload Protection: Automatic Thermal Overload
• Product Type: Condenser Fan Motor
