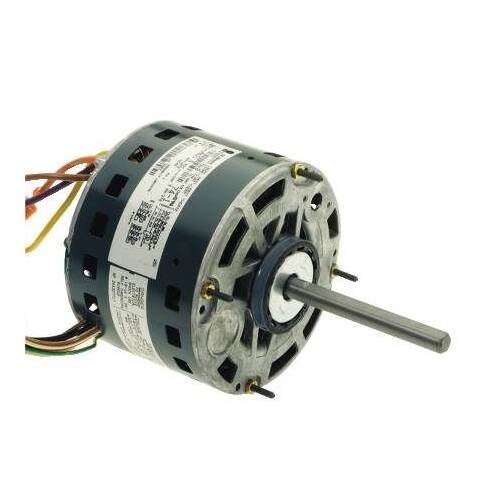

Regal Beloit 3383 Psc Fan Motor 1/4 Hp 115V 1075 Rpm

Product Description

The REGAL BELOIT 3383 is a permanent split capacitor (PSC) condenser fan motor rated at 1/4 horsepower and 115 volts, operating at 1075 RPM. This motor is factory-configured for reversible rotation, allowing field selection of shaft direction to match the required airflow orientation. It is designed for use in HVAC condensing units and air handler applications where a reliable, single-phase induction motor is required. Licensed HVAC technicians and refrigeration mechanics install this motor as a direct replacement or upgrade in condenser fan assemblies on residential and light commercial equipment.

This motor is suited for outdoor condenser fan applications and indoor fan coil assemblies where 115-volt single-phase power is available. The reversible rotation feature makes it adaptable to a range of equipment configurations without requiring a separate CCW or CW motor stock. It fits typical condenser and evaporator fan applications found in residential split systems and packaged units.

Key Features

• 1/4 HP output for standard condenser fan duty
• 115-volt single-phase PSC design for common residential power supply
• 1075 RPM operating speed suited to condenser fan airflow requirements
• Reversible rotation — field-selectable shaft direction without rewiring the motor windings
• PSC design provides reliable starting and running torque without a start relay or start capacitor

Compatibility

Designed as an OEM-style replacement PSC condenser fan motor for residential and light commercial HVAC condensing units and air handler fan assemblies requiring a 1/4 HP, 115-volt, 1075 RPM motor with reversible rotation.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect and lock out all power to the unit before removing the existing motor. Verify run capacitor rating matches the replacement motor specification before energizing. Set rotation direction per the equipment manufacturer's wiring diagram prior to final assembly.

Technical Specifications

• Horsepower: 1/4 HP
• Voltage: 115 volts
• Speed: 1075 RPM
• Rotation: Reversible
• Motor Type: PSC (Permanent Split Capacitor)

Standard Information

• Brand: REGAL BELOIT
• Manufacturer Part Number: 3383
