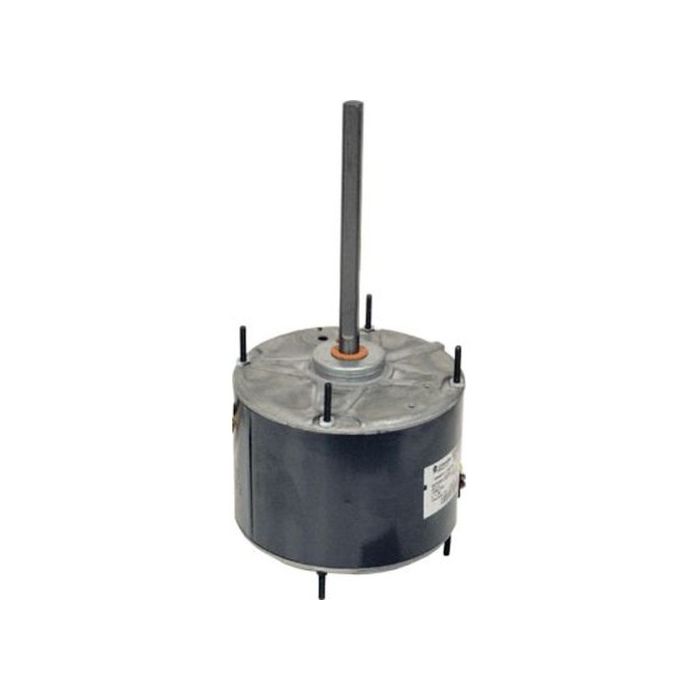

Regal Beloit 03729hs Condenser Fan Motor 1/3 Hp 230V

Product Description

The REGAL BELOIT 03729hs is a 1/3 horsepower condenser fan motor designed for outdoor HVAC condensing unit applications. It operates at 1075 RPM on 230 volts with a reverse rotation configuration and a totally enclosed (TE) construction that protects internal components from outdoor contaminants, moisture, and debris. The motor is built for use in condenser fan assemblies where reliable, continuous-duty airflow across the condenser coil is required. Licensed HVAC technicians are the primary installers of this motor in residential and light commercial refrigeration and air conditioning systems.

This motor is suited for condenser fan applications in split-system air conditioners and heat pumps where a 1/3 HP, 1075 RPM, 230-volt motor with reverse rotation is specified. The totally enclosed housing makes it appropriate for installations exposed to outdoor conditions, including units in coastal or high-humidity environments. Always verify shaft size, mounting configuration, and rotation direction against the equipment nameplate before installation.

Key Features

• 1/3 HP output for standard residential and light commercial condenser fan duty
• 1075 RPM operating speed matched to typical condenser fan blade requirements
• 230-volt single-phase operation
• Reverse rotation configuration for correct condenser fan airflow direction
• Totally enclosed construction resists moisture, dust, and outdoor debris
• 5.5-inch frame diameter for compatibility with standard condenser fan mounting brackets

Compatibility

Designed as an OEM-style replacement condenser fan motor for residential and light commercial split-system air conditioning and heat pump condensing units requiring a 1/3 HP, 1075 RPM, 230-volt, reverse-rotation, totally enclosed motor.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect and lock out all power to the condensing unit before removing the existing motor or handling wiring. Confirm shaft diameter, shaft length, mounting configuration, and rotation direction match the original motor specifications before installation. Follow NEC requirements for disconnect and overcurrent protection on the equipment circuit.

Technical Specifications

• Horsepower: 1/3 HP
• Speed: 1075 RPM
• Voltage: 230 volts
• Rotation: Reverse
• Frame Diameter: 5.5 inches
• Enclosure Type: Totally Enclosed (TE)
• Application: Condenser Fan

Standard Information

• Brand: REGAL BELOIT
• Manufacturer Part Number: 03729hs
