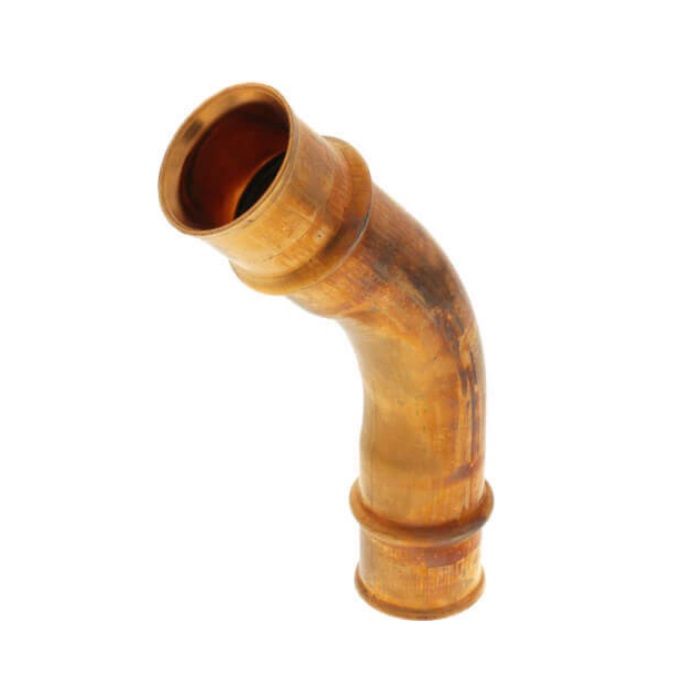

Refrigeration Press Fittings 3081060600111 Elbow 45 Degree Press Refrigeration Fitting 3/8

Product Description

The Refrigeration Press Fittings 3081060600111 elbow is a reliable solution for connecting copper piping without the need for brazing. This fitting allows for quick and easy installations, saving both time and labor. Ideal applications include heat pumps, air conditioning units, and refrigeration systems. This elbow features a 45-degree angle with a 3/8 inch copper press connection.

• Braze-free installation for simplicity
• Provides secure, leak-proof connections
• Offers significant time and labor savings compared to traditional methods

Product Highlights

Durable construction in refrigerant-grade copper ensures a flame-free and reliable seal without soldering or brazing.

Product Information

Standard Information

• Brand: Refrigeration Press Fittings
• Application: Flame-Free Refrigerant Fittings

Technical Specifications

• MPN: 3081060600111
• UPC / GTIN: 810027940049
• Diameter: 3/8 inch
• Material: Copper
• End Style: Press End
• Fitting Type: 45 Degree Elbow
• Pressure Rating: 700 Psi
• Temperature Rating: 250 °F
• Body Material: Refrigerant Grade Copper
• O-Ring Material: HNBR
• Maximum Rated Pressure: 700 Psi
• Continuous Operating Temperature: 250 °F
• End Connection: Press x Press
• Bend Angle: 45 degrees
• A: 0.39 inches
• B: 0.56 inches
• C: 0.59 inches
• D: 2.94 inches
• E: 1.21 inches
