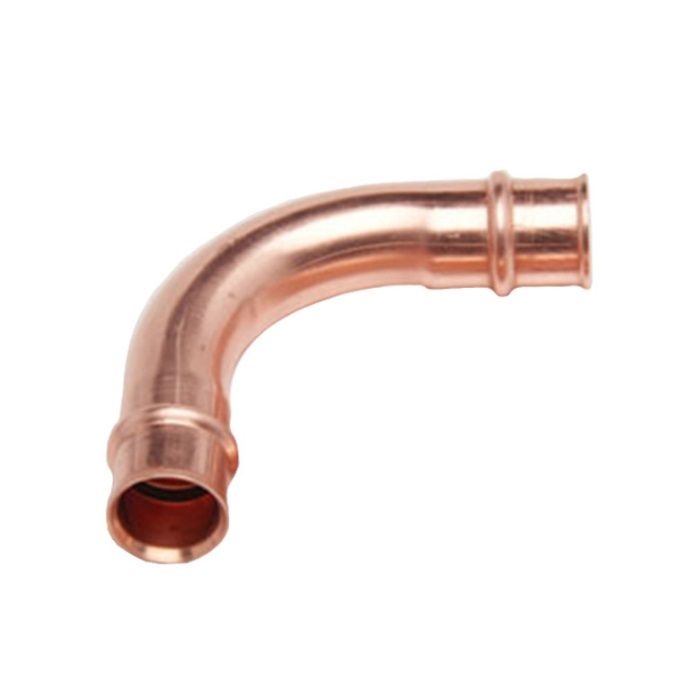

Refrigeration Press Fittings 3.03112E+12 Elbow 90 Degree 3/4 Inch

Product Description

The Refrigeration Press Fittings 3.03112E+12 is a refrigerant copper press fitting designed to connect copper pipes without brazing. This one-piece fitting provides a secure, leak-proof connection. Users report saving 40% to 60% in time and labor compared to traditional brazing methods. This elbow fitting features a three-quarter inch copper press x press connection and a 90-degree bend angle.

• Suitable for flame-free refrigerant fitting applications.
• Connects with a three-quarter inch copper press x press connection.
• Designed with a 90-degree long-radius bend angle.

Product Highlights

This elbow fitting is optimal for heat pumps, air conditioning, refrigeration, and transportation uses. The copper material ensures high corrosion resistance and durability.

Product Information

Standard Information

• MPN: 3031121200111
• UPC: 810027940230

Technical Specifications

• Diameter: 3/4 inch
• Material: Copper
• Application: Flame-Free Refrigerant Fittings
• Bend Angle: 90 degrees
• End Connection: Press x Press
• Product Type: Long-Radius
• Size: 3/4 inch
• Item Name: Long Radius Elbow
• Model: 3031
• Type: Refrigerant-Grade
• Nominal Size: 3/4 inch
• Connection Type: Press
• Temperature Range: 250 degrees F
• Pressure Rating: 700 psi
• Standards/Approvals: ASTM B75, ASTM B743
