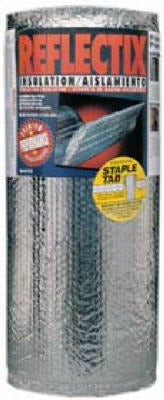

Reflectix Inc ST24025 Staple Tab Insulation Roll 24x25

Product Description

The REFLECTIX INC ST24025 is a double-bubble foil reflective insulation roll designed for use in residential and light commercial construction and mechanical applications. Measuring 24 inches wide by 25 feet long, it features foil facing on both sides with integrated staple tabs running along each edge. Those tabs allow direct attachment to wood framing members without requiring additional fasteners or adhesive. Insulation contractors, HVAC technicians, and general contractors install this product in wall cavities, crawl spaces, attic bays, and around ductwork where a lightweight, reflective thermal barrier is needed.

The ST24025 is suited for installation between floor joists, wall studs, and roof rafters in residential new construction and retrofit projects. It is also used as a radiant barrier wrap for exposed ductwork in unconditioned spaces such as attics, garages, and basements. The 24-inch width aligns with standard 24-inch on-center framing layouts, reducing cut waste. Each roll covers 50 square feet and ships in a package quantity of 8 rolls per unit of measure.

Key Features

• Double-bubble core with foil facing on both sides for radiant heat reflection
• Integrated staple tabs on both edges allow direct attachment to joists or studs without specialty tools
• 24-inch width matches standard 24-inch on-center framing for minimal trimming
• Lightweight construction simplifies handling and overhead installation
• 50 square feet per roll provides efficient coverage for smaller bays and duct runs

Compatibility

Designed as an OEM-style reflective insulation solution for use with standard wood-framed wall, floor, and roof assemblies where staple-tab attachment to joists or studs is required.

Installation Notes

This product is typically installed by insulation contractors, HVAC technicians, or general construction tradespeople. Staple tabs should be secured to framing using a standard staple gun; no cutting of the foil face is required at attachment points. When used around ductwork or in enclosed assemblies, verify that local building codes and energy codes allow reflective insulation as the primary or supplemental thermal barrier for the application. Always wear appropriate PPE, including gloves and eye protection, when cutting or handling foil-faced materials.

Technical Specifications

• Width: 24 inches
• Length: 25 feet
• Coverage: 50 square feet per roll
• Construction: Double bubble, foil both sides
• Attachment Method: Integrated staple tabs, both edges
• Weight: 26 pounds
• Package Quantity: 8 rolls per unit of measure

Standard Information

• Brand: REFLECTIX INC
• Manufacturer Part Number: ST24025
