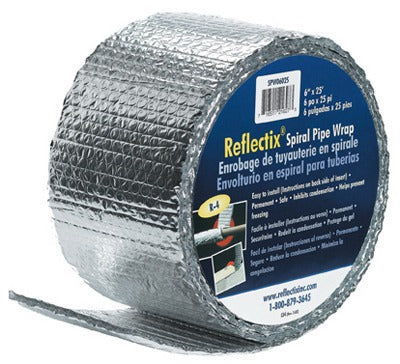

Reflectix Inc SPW0602508 Spiral Pipe Wrap 6x25 Ft

Product Description

The REFLECTIX INC SPW0602508 is a spiral pipe wrap insulation product designed to protect pipes from freezing temperatures and eliminate condensation-related moisture damage. Constructed with aluminum foil on both sides, this wrap provides an R-value of 2.0 and covers a 6-inch pipe width over a 25-foot roll length. HVAC technicians, plumbers, and mechanical contractors install this wrap on exposed supply and drain piping in unconditioned spaces such as crawlspaces, attics, basements, and mechanical rooms. The standard-edge design allows for clean, consistent application with a recommended 0.5-inch overlap on each pass.

This pipe wrap is suited for residential and light commercial applications where condensation control and freeze protection are required. Typical installation scenarios include chilled water lines, domestic cold water supply piping, and HVAC condensate drain lines routed through unconditioned areas. The reflective aluminum foil facing addresses radiant heat gain and loss while the wrap construction conforms to round pipe profiles during application.

Key Features

• Aluminum foil facing on both sides for reflective thermal performance
• R-value of 2.0 provides measurable resistance to heat transfer
• Protects pipes from freezing in unconditioned or exposed environments
• Eliminates condensation and moisture drip damage on cold piping
• Standard edge with 0.5-inch overlap installation method for consistent coverage
• Roll format — 6 inches wide by 25 feet long — suitable for a range of pipe diameters

Compatibility

Designed as a general-purpose spiral pipe wrap for round pipe insulation applications in residential and commercial mechanical systems.

Installation Notes

Licensed plumbers and HVAC technicians typically install spiral pipe wrap as part of new construction or retrofit insulation work. Shut off water supply or system flow before working on active piping where practical. Wrap the pipe using the spiral method, maintaining the 0.5-inch overlap on each pass to ensure consistent coverage without gaps. Secure ends with compatible foil tape to prevent unraveling; local mechanical codes may specify minimum insulation R-values for pipe insulation in conditioned versus unconditioned spaces.

Technical Specifications

• Width: 6 inches
• Roll Length: 25 feet
• R-Value: 2.0
• Facing Material: Aluminum Foil Both Sides
• Edge Type: Standard Edge
• Recommended Overlap: 0.5 inches
• Weight: 8 pounds
• Unit of Measure: EA
• Package Quantity: 8

Standard Information

• Brand: REFLECTIX INC
• Manufacturer Part Number: SPW0602508
