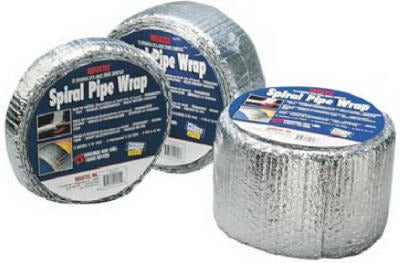

Reflectix Inc SPW0402512 Spiral Pipe Wrap 4x25 Ft

Product Description

The REFLECTIX INC SPW0402512 is a foil-faced spiral pipe wrap insulation designed to protect pipes from freezing and condensation in residential and light commercial applications. The wrap measures 4 inches wide by 25 feet long and carries an R-value of 2.0. Both exterior faces are foil-laminated, providing a radiant barrier that reflects heat back toward the pipe surface. Plumbers, HVAC technicians, and mechanical contractors use this product to insulate exposed piping runs where temperature differentials cause condensation drips or freeze risk. Installation follows a simple spiral-wrap method with a 1/2-inch overlap between passes.

This pipe wrap is suited for cold-water supply lines, chilled-water piping, refrigerant suction lines, and other pipe runs exposed to unconditioned spaces such as crawlspaces, attics, basements, and exterior wall chases. The spiral application technique allows the wrap to conform to straight runs and gentle bends without cutting or notching. It is sold as an individual roll; the product is packaged 12 rolls per case when ordering by the case unit.

Key Features

• R-value of 2.0 provides thermal resistance for freeze protection and condensation control
• Foil facing on both sides creates a radiant barrier that reflects heat toward the pipe
• 4-inch width with 25-foot length covers a substantial run in a single roll
• Spiral-wrap installation with 1/2-inch overlap requires no special tools
• Eliminates condensation drip damage on chilled-water and cold-water lines
• Flexible construction conforms to straight pipe runs and gradual bends

Compatibility

Designed as a general-purpose spiral pipe wrap for standard residential and light commercial pipe insulation applications where a foil-faced, R-2.0 wrap is specified.

Installation Notes

Shut off flow and allow the pipe surface to dry before applying the wrap to ensure adhesion and eliminate trapped moisture. Begin at one end of the pipe run and spiral the wrap with each pass overlapping the previous pass by 1/2 inch. Secure the ends with foil tape rated for mechanical insulation use. This work is typically performed by licensed plumbers or HVAC mechanics and should comply with applicable local mechanical codes governing pipe insulation requirements.

Technical Specifications

• Width: 4 inches
• Length: 25 feet
• R-Value: 2.0
• Facing: Foil both sides
• Weight: 8.5 pounds
• Package Quantity: 12 rolls per case
• Unit of Measure: EA

Standard Information

• Brand: REFLECTIX INC
• Manufacturer Part Number: SPW0402512
