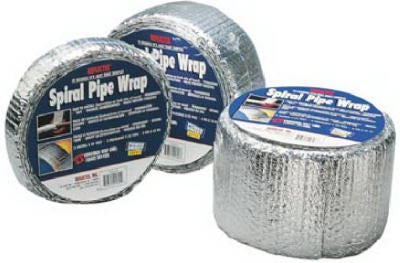

Reflectix Inc SPW0202506 Pipe Wrap Insulation 2x25ft

Product Description

The REFLECTIX INC SPW0202506 is a foil-faced pipe wrap insulation designed to protect exposed pipes from freezing temperatures and condensation-related moisture damage. The roll measures 2 inches wide by 25 feet long and features a reflective foil surface on both sides, providing an R-value of 2.0. Installation requires no special tools or adhesives — the wrap is applied directly over the pipe with a half-inch overlap at each pass to maintain continuous coverage. Plumbers, HVAC technicians, and mechanical contractors use this product in both new construction and retrofit applications where exposed piping needs thermal and moisture protection.

This pipe wrap insulation is suited for residential and light commercial applications where cold-water supply lines, drain lines, or refrigerant-adjacent piping is exposed to ambient conditions that promote sweating or freezing. Typical install locations include unconditioned crawl spaces, attics, garages, and exterior wall chases. The foil construction reflects heat loss and resists vapor drive, making it effective in both heating and cooling climates. Each roll covers 25 linear feet at a 2-inch wrap width, and units are sold individually.

Key Features

• Foil reflective surface on both sides provides thermal resistance with an R-value of 2.0
• 2-inch width and 25-foot roll length suit standard residential pipe diameters
• Wrap-and-overlap installation — apply with a half-inch overlap, no adhesive required
• Helps prevent pipe freezing in unconditioned spaces during cold weather
• Eliminates condensation drip damage caused by sweating cold-water lines
• Lightweight at 2 pounds per roll for easy handling on the job

Compatibility

Designed as a standard-edge pipe wrap for use on exposed pipes in residential and light commercial mechanical systems where thermal insulation and condensation control are required.

Installation Notes

Installation is performed by plumbers or HVAC technicians during rough-in or service work. Shut off water supply and relieve line pressure before working on active pipe runs where applicable. Begin wrapping at one end of the pipe section, maintaining a consistent half-inch overlap throughout the length of the run to ensure uninterrupted insulation coverage. Secure the terminal end with compatible foil tape to prevent unraveling; follow local mechanical codes for insulation requirements in conditioned versus unconditioned spaces.

Technical Specifications

• Width: 2 inches
• Length: 25 feet
• R-Value: 2.0
• Facing: Foil both sides
• Weight: 2 pounds
• Unit of Measure: EA
• Package Quantity: 6

Standard Information

• Brand: REFLECTIX INC
• Manufacturer Part Number: SPW0202506
