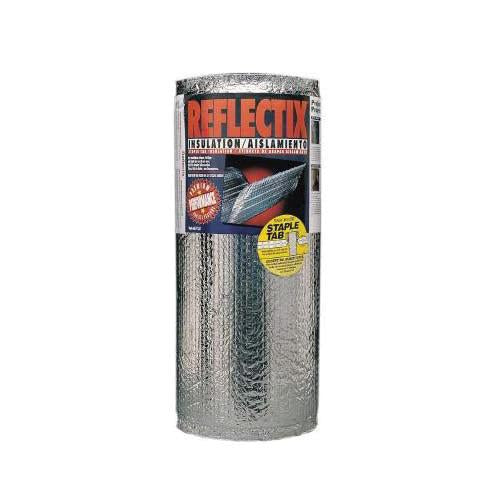

Reflectix hvst1610003 Double Reflective Staple Tab Insulation

Product Description

The REFLECTIX hvst1610003 is a double reflective staple tab insulation roll designed for thermal control in residential and light commercial construction and retrofit applications. The roll measures 100 feet in length and 16 inches in width, with a thickness of 5/16 inches. It achieves R-values of R4.2, R6, or R8 depending on installation method and airspace configuration, making it a versatile option for wall, ceiling, and crawl space applications. Rated for temperatures up to 250 degrees F, this material handles the demands of attic and mechanical space environments without degradation. HVAC technicians, insulation contractors, and general contractors commonly install this product.

This staple tab insulation is suited for residential new construction and retrofit projects where flexible, lightweight insulation is needed. The staple tab design speeds up installation along framing members in walls, floors, and attic spaces. It works well in areas where rigid board insulation is impractical and where a reflective barrier is needed to reduce radiant heat gain or loss. The roll format covers large areas efficiently, reducing material handling time on the job site.

Key Features

• Double reflective surface construction for radiant heat control
• Staple tab edges allow direct fastening to wood framing without additional hardware
• R-values of R4.2, R6, or R8 achievable depending on airspace and installation configuration
• Rated to 250 degrees F for use in high-temperature environments such as attics and mechanical rooms
• 100-foot roll length provides continuous coverage with fewer seams
• 5/16-inch thickness keeps the product low-profile in tight framing cavities

Compatibility

Designed as a general-purpose double reflective staple tab insulation suitable for residential and light commercial wall, floor, ceiling, and crawl space framing applications.

Installation Notes

Insulation contractors and general contractors typically install this product. Cut the roll to length using a utility knife and straightedge, and fasten the staple tabs directly to wood studs or joists with a staple gun. An airspace on one or both sides of the reflective surface is required to achieve the rated R-value performance. Follow local building codes and manufacturer installation guidelines to ensure the appropriate airspace dimensions and vapor barrier requirements are met.

Technical Specifications

• Length: 100 ft
• Width: 16 inches
• Thickness: 5/16 inches
• R-Value: R4.2, R6, R8 (installation-dependent)
• Temperature Rating: 250 degrees F

Standard Information

• Brand: REFLECTIX
• Manufacturer Part Number: hvst1610003
