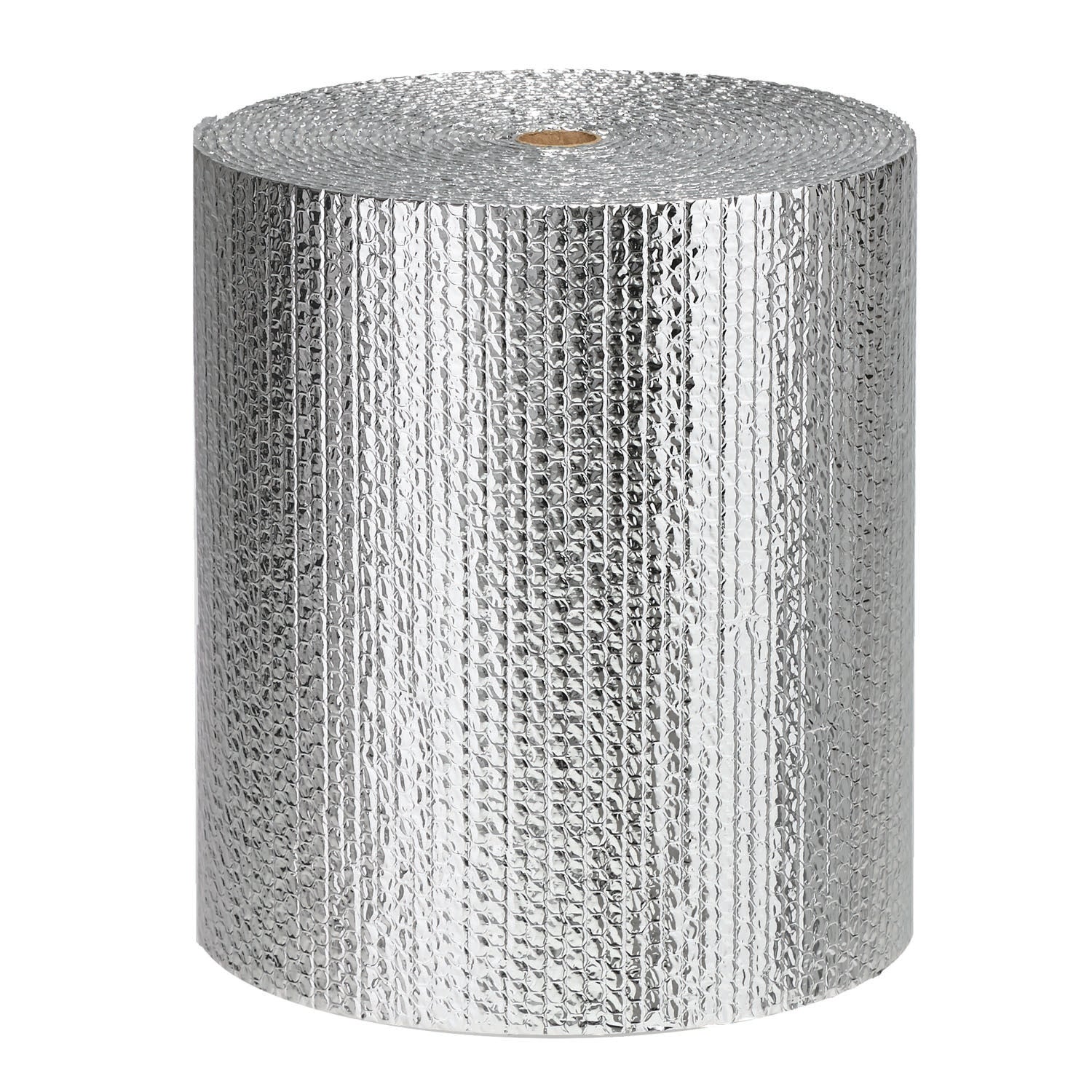

Reflectix hvst1605003 Reflective Staple Tab Insulation Roll

Product Description

The REFLECTIX hvst1605003 is a double reflective staple tab insulation roll designed for thermal management in HVAC and building envelope applications. The roll measures 16 inches wide by 50 feet long and 5/16 inch thick, covering approximately 66.66 square feet per roll. Constructed from polyethylene, this product features a double reflective design with pre-formed staple tabs for straightforward mechanical fastening. It carries a temperature rating of -60 to 180 degrees F, making it suitable for a wide range of installation environments encountered by HVAC technicians and insulation contractors.

This insulation roll is used in residential and light commercial construction and retrofit applications. Typical uses include wrapping ductwork, insulating crawl spaces, rim joists, and attic areas where a flexible, reflective insulation product is required. The staple tab design is intended to simplify attachment to wood framing and other structural members without requiring additional adhesives. Installers working on HVAC duct systems or building envelope projects will find the roll format convenient for cutting to length in the field.

Key Features

• Double reflective construction for thermal resistance in HVAC and building applications
• Staple tab design enables mechanical fastening to framing without additional adhesives
• Polyethylene construction resists moisture and maintains flexibility during installation
• Temperature rated from -60 to 180 degrees F for use in attics, crawl spaces, and mechanical rooms
• 50-foot roll covers 66.66 square feet, reducing material handling on larger jobs

Compatibility

Designed as a flexible reflective insulation for use in residential and light commercial HVAC duct wrap, framing cavities, and building envelope applications where staple tab attachment is appropriate.

Installation Notes

Installation is typically performed by HVAC technicians or insulation contractors following local building codes and energy codes applicable to the project type. Ensure all surfaces are clean and dry before applying the insulation, and use a utility knife and straightedge for clean field cuts. Staple tabs should be fastened securely to framing members to maintain continuous coverage and minimize thermal bridging. Consult local energy codes for required R-values and vapor retarder requirements before specifying this product for a given application.

Technical Specifications

• Width: 16 inches
• Length: 50 feet
• Thickness: 5/16 inch
• Coverage: 66.66 square feet per roll
• Temperature Rating: -60 to 180 degrees F
• Material: Polyethylene
• Series: HVST
• Country of Origin: Domestic

Standard Information

• Brand: REFLECTIX
• Manufacturer Part Number: hvst1605003
