Reflectix hvrc1648025 Return Air Panning 16x47.5 in

Product Description

The REFLECTIX hvrc1648025 is a Reflecto-Pan return air panning panel designed for use in forced-air HVAC duct systems. This panel forms the bottom closure of a return air plenum or joist-bay return, channeling conditioned-space air back to the air handler or furnace. It carries a Class 1 / Class A fire and smoke rating under UL 723, making it code-compliant for residential and light commercial applications. HVAC installers use it where a sheet metal pan is not practical or where a lightweight, reflective panning solution is preferred. Each panel measures 16 inches wide by 47.5 inches long and is sold individually, with 25 panels per box.

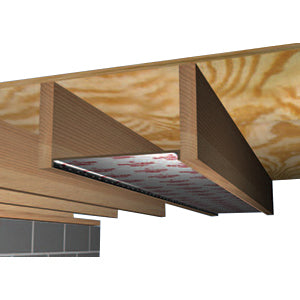

This panel is suited for residential forced-air systems where floor joists or framing cavities serve as return air passages. It is typically installed between framing members to enclose the return air pathway leading to the air handler. The 16-inch width fits standard joist bays, and the 47.5-inch length spans a typical joist spacing run. HVAC technicians and mechanical contractors install this product during new construction or retrofit return-air duct work.

Key Features

• Class 1 / Class A fire and smoke rating per UL 723 for code-compliant installations
• 16 inches wide by 47.5 inches long — sized for standard joist-bay return air applications
• Lightweight reflective construction reduces handling fatigue during overhead installation
• Sold individually, available in cases of 25 panels for larger jobs
• Designed as a low-profile alternative to sheet metal return air panning

Compatibility

Designed as a return air panning panel for residential and light commercial forced-air HVAC systems where joist-bay or framing-cavity return pathways are used. No specific system model compatibility data was provided by the manufacturer for this SKU.

Installation Notes

Installation is performed by licensed HVAC technicians or mechanical contractors in accordance with local mechanical codes and SMACNA duct construction standards. Power down the air handler and ensure the system is de-energized before working inside the return air pathway. Panels should be secured to framing members using appropriate fasteners or HVAC tape to maintain an airtight return air seal. Verify local code acceptance of non-metallic return air panning materials before installation.

Technical Specifications

• Width: 16 inches
• Length: 47.5 inches
• Fire and Smoke Rating: Class 1 / Class A
• Certification: UL 723
• Sold As: Each (25 per box)
• UPC: 16511705804

Standard Information

• Brand: REFLECTIX
• Manufacturer Part Number: hvrc1648025
