Refco VAMP-X Universal Voltage Condensate Removal Pump w/ External Optical Sensor (100-240V)

Product Description

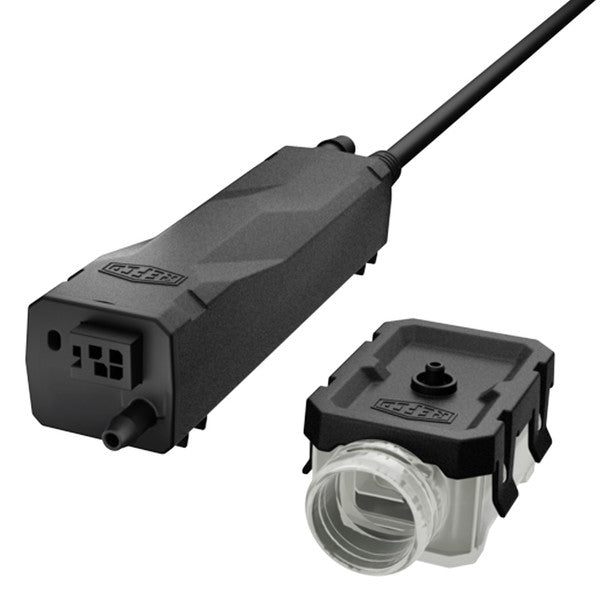

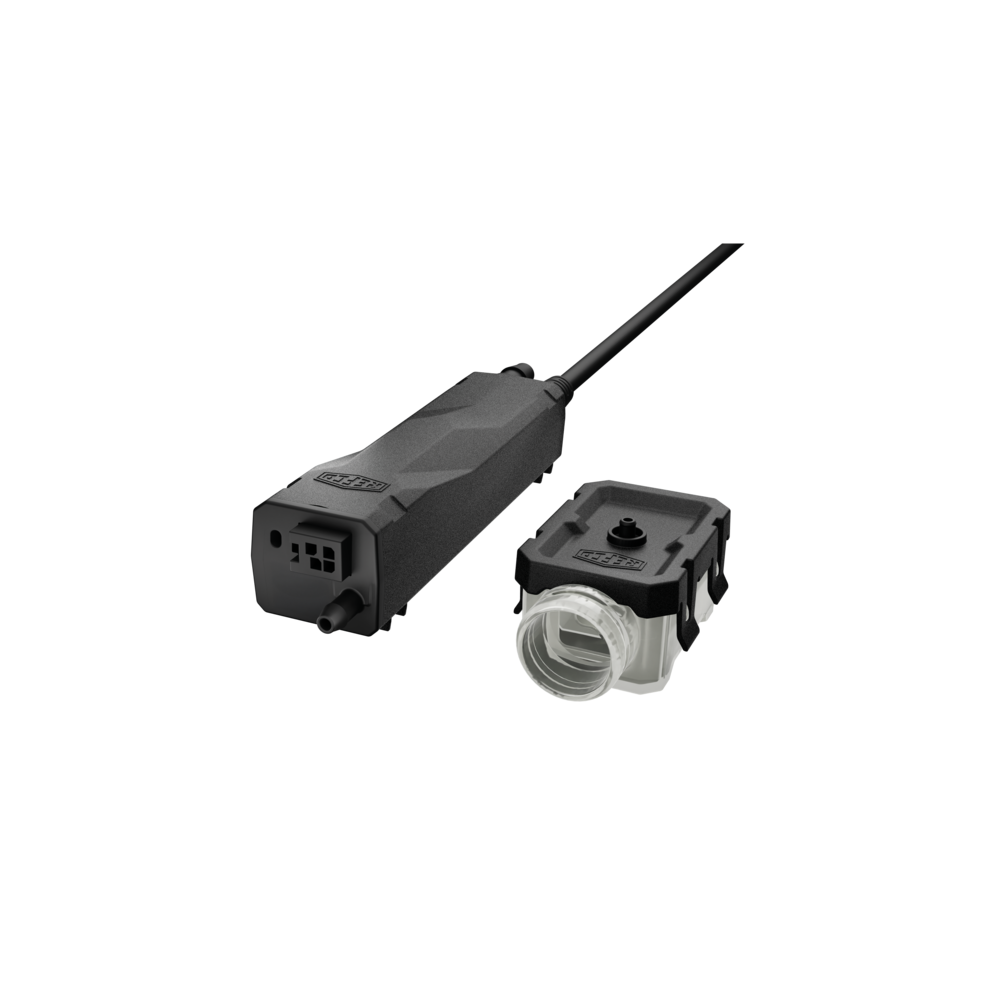

The REFCO VAMP-X is a condensate pump with an external optical sensor for flexible installations. It is quick and easy to install, highly versatile, exceptionally quiet, and the smallest of its kind. The sensor is located in an external reservoir, giving the user maximum flexibility. The adapter plug enables seamless integration into existing installations.

• Minimal space requirement, standing at just 26 mm tall
• Operates at less than 20 dB(A)
• Handles up to 22 liters per hour

Product Highlights

This condensate pump combines innovative technology with practical benefits, making it an ideal replacement for other condensate pumps.

Product Information

Standard Information

• Brand: REFCO
• Manufacturer Part Number: VAMP-X
• Country of Origin: Switzerland

Technical Specifications

• Voltage: 100 - 240 VAC
• Product Type: Pump
• Max. Flow Rate: 6 GPH
• Max. Discharge Head: 50 ft
• Max. Suction Lift: 15 ft
• Max. Horizontal Run: 246 ft at 0 ft head and 0 ft suction
• Noise Level: 18 dB(A)
• Type: Diaphragm type
• Tube Diameter: 1/4 "
• Frequency: 50 / 60 Hz
• Energy Consumption: 6 W
• Power Consumption Idle: 0.6 W
• Protection Class: II
• Alarm Relay: Normally-closed, failsafe 250 VAC, 5 A or 30 VDC, 5 A
• Ingression Protection: IP44
• Operating Temperature Range: 37 °F – 104 °F
• Water Temperature Range: 37 °F – 104 °F
• Storage Temperature Range: -4 °F – 158 °F
• Material: Polyamide | FR-4
• Standards: IEC 60335-1, IEC 60335-2-41, UL 778, CSA C22.2 #108
• RoHS Conformity: Yes
