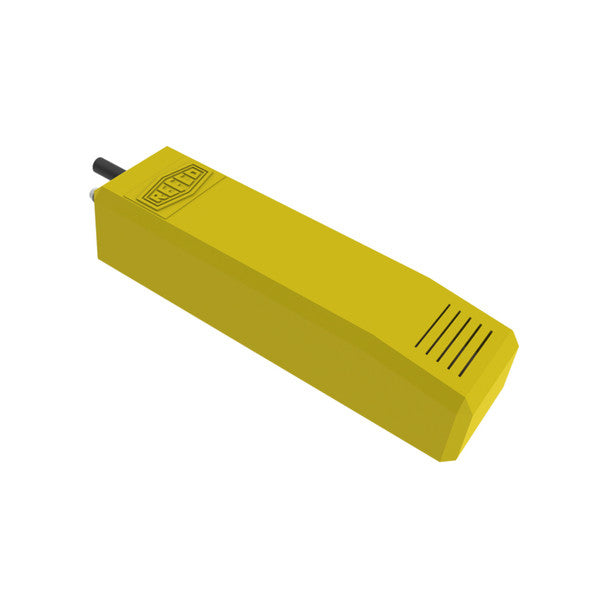

Refco KAROO Condensate Removal Drain Pan Pump 120/240V

Product Description

The REFCO KAROO drain pan pump is a submersible condensate removal pump designed to automatically remove condensate water from refrigerated cases, dehumidifiers, fan coils and air conditioning systems. It is intended to be installed within a collection tray inside the equipment. The water level is measured by an Electronic Energy Control System (EECS).

• Power supply: 120/240 V, 50/60 Hz Auto sensing
• Capacity: 3.17 US gal/h
• Discharge head: 65 ft vertical, >328 ft horizontal, 3.28 ft suction

Product Highlights

The KAROO drain pan pump is a submersible pump for use in condensate trays for commercial, industrial and domestic installations.

Product Information

Standard Information

• Brand: REFCO
• Manufacturer Part Number: KAROO

Technical Specifications

• Power Supply: 120/240 V, 50/60 Hz Auto sensing
• Power Consumption: 16 W max., 0.25 when idle
• Alarm Relay: 5 A, 30 VDC, 250 VAC Break on fault
• Capacity: 3.17 US gal/h
• Discharge Head: 65 ft vertical, >328 ft horizontal 3.28 ft suction
• Ambient Temperature: 32° F to 104° F
• Material: Flame retardant ABS - UL94 5 VA
• Discharge Tube: 1/4" ID
• Shutoff Head (ft.): 65'
• Product Type: Condensate Pump
• Voltage: 120v 240v
• Hertz: 50 60
• Max Ambient Temp (°F): 104°F
• Max. Flow Rate: 3.17 GPH
• Max. Suction Lift: 3.28 ft
• Type: Piston pump
• Tube Diameter: 6 mm
• Energy Consumption: 16 W
• Protection Class: I
• Ingression Protection: IP68
• Cable Length: 5 ft
• Operating Temperature Range: 32 - 104 °F
• Water Temperature Range: 37 - 77 °F
• Standards: EN 55014-1 EN 55014-2 EN 61000-3-2 EN 61000-3-3 IEC-EN 60335-1 IEC-EN 60335-2-41 IEC-EN 62321-1
• RoHS Conformity: Yes
