Reelcraft TW84100 OLPT Twin Line Welding Hose Reel 1/4 in x 100 ft TW84100 OLPT

Product Description

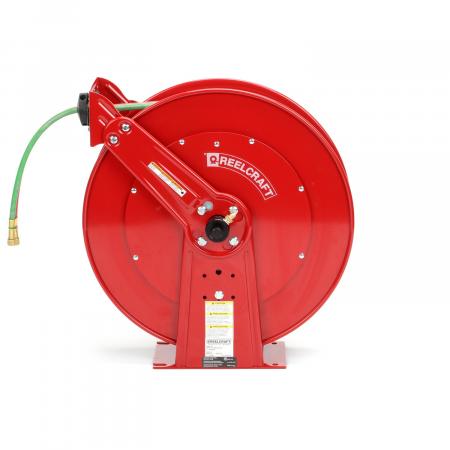

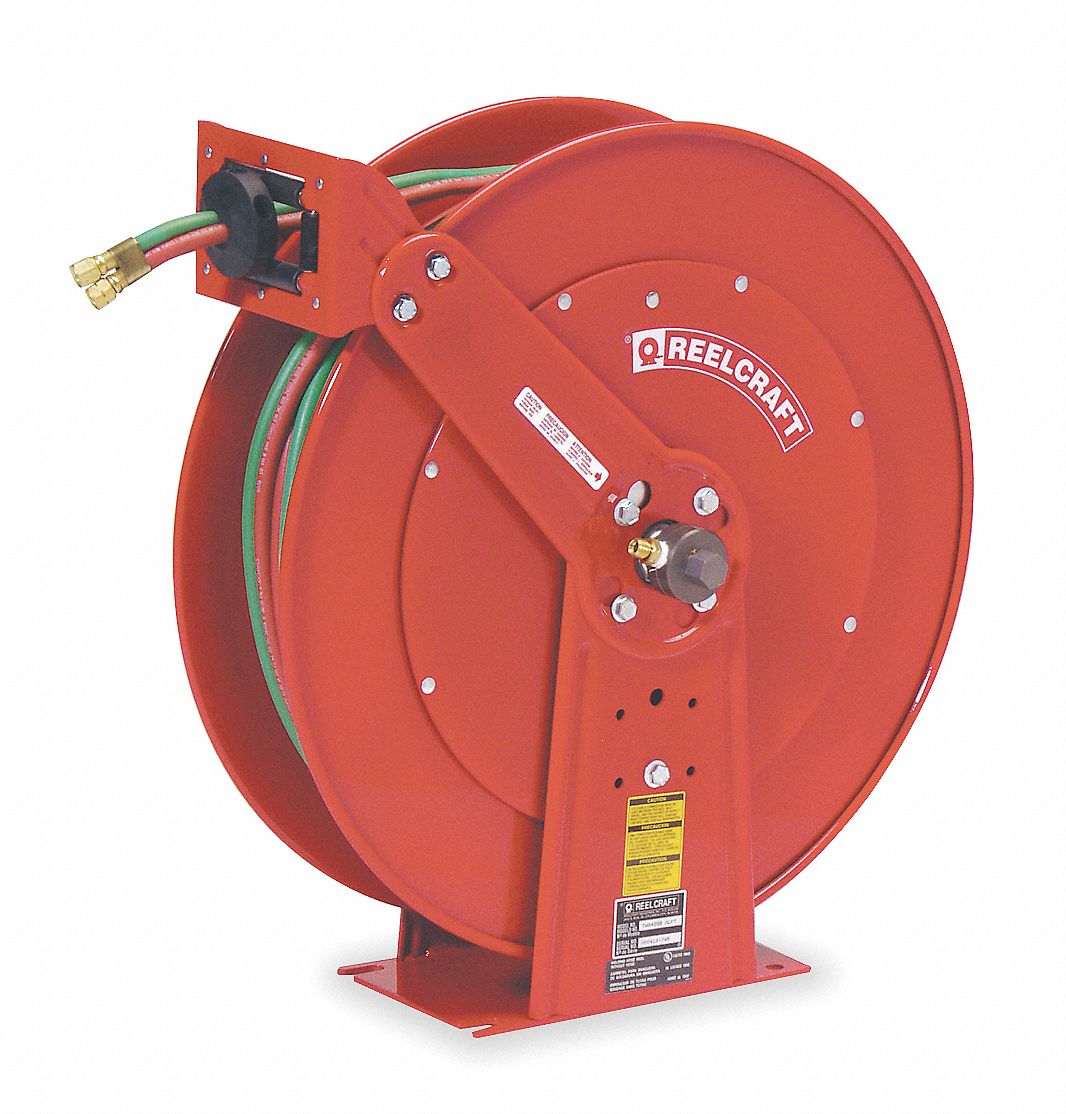

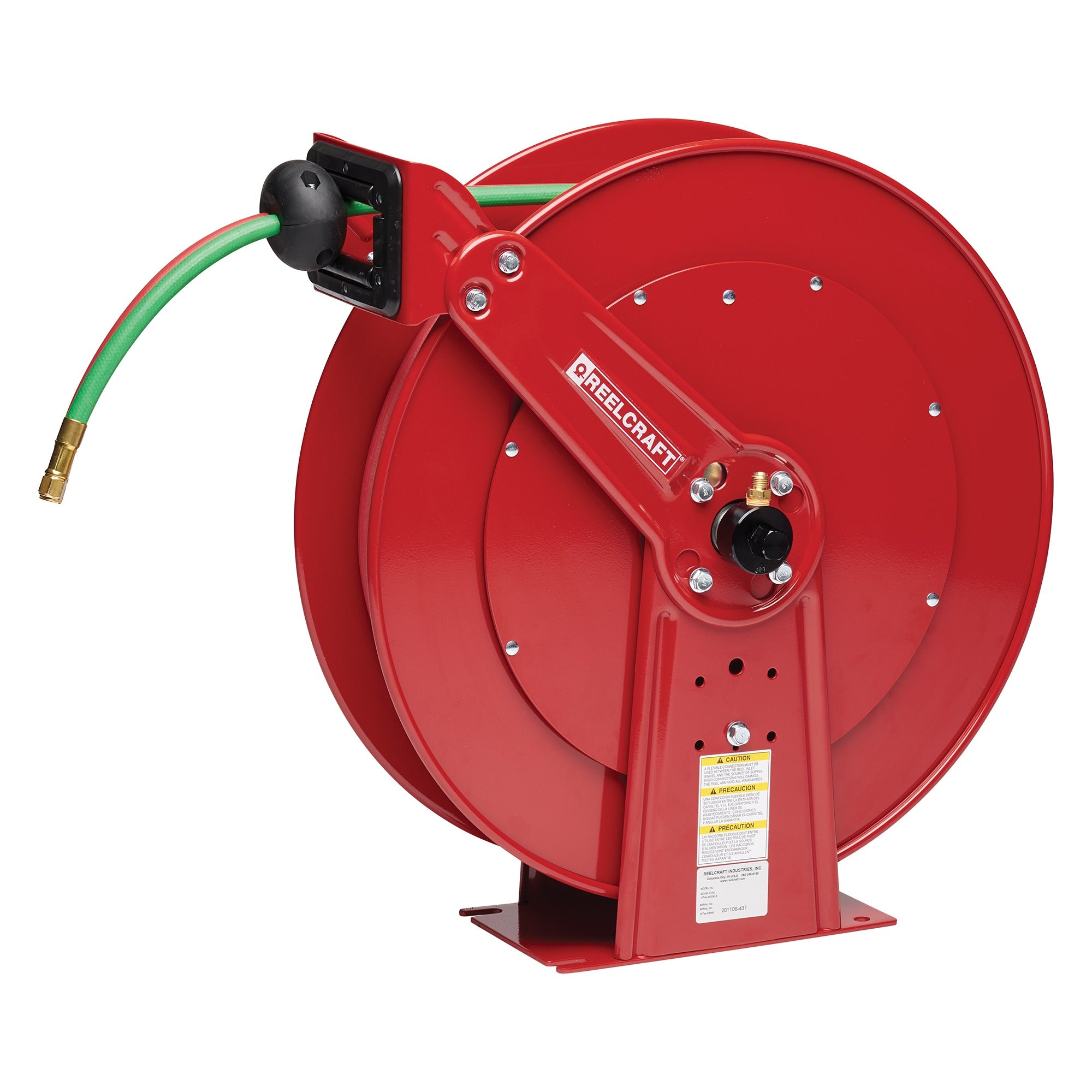

The Reelcraft TW84100 OLPT is a spring retractable twin-line gas welding hose reel that includes a 1/4 in x 100 ft T-grade hose rated to 200 psi. It features an independent dual-swivel aluminum body with hard coating, double-sealed molded O-rings to prevent leakage, and machined grooves to identify the acetylene side. The reel has a heavy-gauge steel frame and baked-on powder coat finish and is suitable for oxygen/acetylene and fuel gas welding service.

• Spring retractable twin-line design with independent dual-swivel aluminum fluid path and hard coating
• Includes 1/4 in ID x 100 ft T-grade hose rated to 200 psi; T-grade seals suitable for MAPP, propane, natural and fuel gases
• Double-sealed molded O-rings, machined acetylene-side grooves, 9/16-18 fittings, maximum operating temperature 150 F

Product Highlights

Twin-line spring retractable welding reel with 1/4 in x 100 ft T-grade hose, 200 psi rating, and dual-swivel design

Product Information

Standard Information

• Brand: REELCRAFT
• Manufacturer Part Number: TW84100 OLPT
• Country of Origin: United States

Technical Specifications

• Brand: Reelcraft
• MPN: TW84100 OLPT
• Series: 80000
• Product Type: Twin line welding hose reel
• Hose Inside Diameter: 1/4 in
• Hose Outer Diameter: 0.53 in
• Hose Length: 100 ft
• Hose Grade: T-Grade
• Hose Included: Yes
• Maximum Operating Pressure: 200 psi
• Maximum Operating Temperature: 150 F
• Drive Type: Spring retractable
• Swivel Inlet: (2) B-size 9/16-18 (M) LH/RH
• Swivel Outlet: (2) B-size 9/16-18 (F) LH/RH
• Swivel Material: Aluminum
• Swivel Assembly: Aluminum / Brass
• Internal Fluid Path: Aluminum
• Swivel Seal: Double-sealed molded O-rings (Buna)
• Reel Material: Heavy-gauge steel frame, spool, and drum
• Reel Finish: Baked-on powder coat
• Weight: 101 lb
• Overall Dimensions: 24 in L x 12.25 in W x 25.375 in H
• Reel Diameter: 15 in
• Reel Width: 8.375 in
• Bearing Construction: Permanently lubricated bearings (ball)
• Latch Type: Locking
• Mounting Type: Bench, floor, wall, ceiling, truck
• Standards: UL Listed (reel without hose)
• Country of Origin: United States
• Primary Application: Welding
• Fluid Compatibility: Oxygen/acetylene, MAPP, propane, natural gas, fuel gases
• Series Notes: Heavy-duty Series 80000 construction
