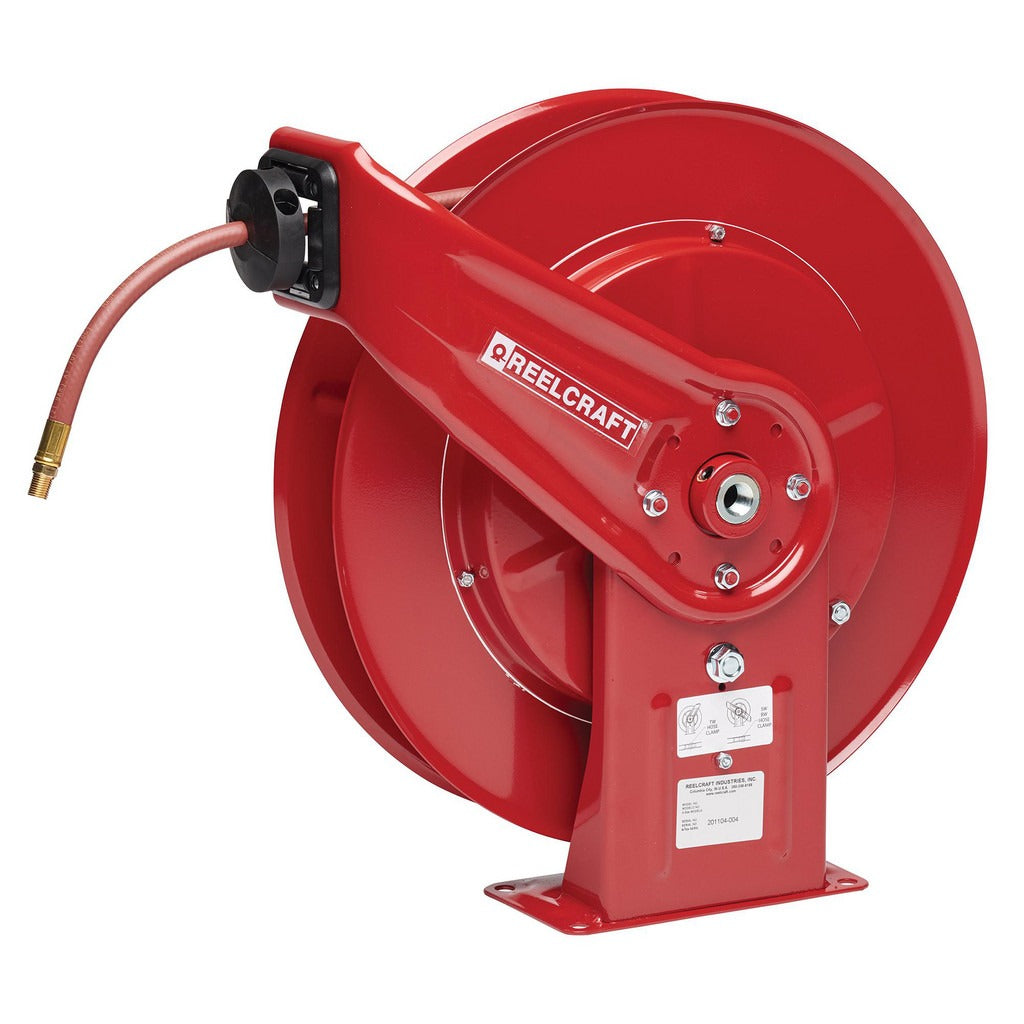

Reelcraft HD78050 Olp Spring Retractable Hose Reel 50 Ft

Product Description

The REELCRAFT HD78050 OLP is a heavy-duty, spring-retractable hose reel that ships complete with a 50-foot polyvinylchloride hose. Rated for a maximum working pressure of 300 psi, it is built for demanding air and water service in professional shop, industrial, and trade environments. The reel body and frame are constructed of steel with a red finish, giving it the structural rigidity needed to handle daily use under load. The 1/2-inch FNPT inlet and 3/8-inch MNPT outlet provide standard connections that integrate directly into existing air lines or water supply plumbing without adapters in most setups. Licensed plumbers, HVAC technicians, and industrial maintenance crews are the primary installers of this unit.

The HD78050 OLP is suited for workbench or wall-mount installations in automotive shops, HVAC service bays, plumbing supply rooms, and light manufacturing facilities. Its spring-retractable drive automatically retracts the hose after use, reducing trip hazards and keeping the work area organized. The unit is rated for both air and water applications, making it a versatile single-reel solution where multiple fluid types are serviced from one station. The 50-foot hose length provides adequate reach for most bay or service-room layouts without requiring hose extensions.

Key Features

• Spring-retractable drive for automatic hose retrieval after each use
• 300 psi maximum working pressure rated for air and water service
• Hose included: 50 feet of polyvinylchloride hose with 1/2-inch inside diameter
• Steel reel construction with red finish for heavy-duty durability
• 1/2-inch FNPT inlet and 3/8-inch MNPT outlet for standard plumbing connections
• Workbench or wall mounting supported for flexible installation positioning

Compatibility

Designed for air and water service applications; part of the REELCRAFT HD70000 series, compatible with standard 1/2-inch FNPT air and water supply lines in workbench and wall-mount configurations.

Installation Notes

Installation should be performed by a qualified technician familiar with compressed air or plumbing system requirements. Shut off the air supply or water supply and depressurize the line before making any connections. Mount the reel to a structurally sound surface capable of supporting the unit weight plus the loaded hose under tension. Verify all threaded NPT connections are sealed with appropriate thread sealant and pressure-tested before returning the system to service.
