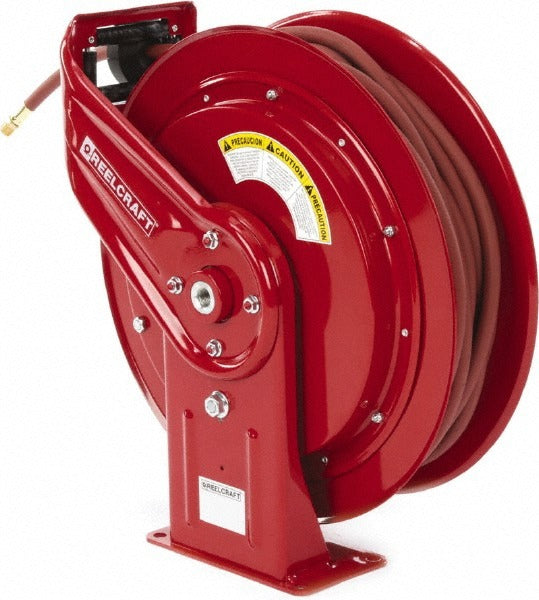

Reelcraft HD76100 Olp Spring Retractable Hose Reel 100 Ft

Product Description

The REELCRAFT HD76100 OLP is a heavy-duty, spring-retractable hose reel supplied complete with 100 feet of 3/8-inch ID hose. Built on the HD70000 series platform, it is engineered for demanding air and water service in industrial and commercial environments. The reel body is constructed from steel and finished in red for easy identification. It accepts a 1/2-inch FNPT inlet connection and delivers through a 1/4-inch MNPT outlet, with a maximum working pressure of 300 psi. At 75 pounds, this unit is sized for permanent or semi-permanent wall, ceiling, or floor mounting where reliable hose management is required by maintenance crews, contractors, and service technicians.

The HD76100 OLP suits air-tool supply lines, washdown stations, and general water service in automotive shops, manufacturing facilities, agricultural operations, and industrial maintenance bays. The spring-retract mechanism keeps hose off the floor and returns the line automatically after each use. The 100-foot hose length supports work across large floor areas or down from elevated mounting positions without requiring a separate hose purchase.

Key Features

• Spring-retractable drive returns hose automatically after each use
• 100 feet of 3/8-inch ID hose included — no separate hose purchase required
• 300 psi maximum working pressure rated for air and water service
• Steel reel construction for heavy-duty industrial use
• 1/2-inch FNPT inlet and 1/4-inch MNPT outlet for standard plumbing connections
• HD70000 series heavy-duty platform designed for high-cycle applications

Compatibility

Designed for air and water service applications. Suitable for use with standard compressed-air systems and low-pressure water supply lines operating at or below 300 psi. Consult REELCRAFT HD70000 series documentation for approved hose and fitting specifications.

Installation Notes

Installation is typically performed by a qualified maintenance technician or plumber. Shut off the compressed air or water supply and bleed all line pressure before making inlet or outlet connections. The unit supports wall, ceiling, or floor mounting — verify that the mounting surface and hardware are rated for the combined weight of the reel, hose, and working load before installation. Follow applicable OSHA and local facility safety codes for pressurized hose reel installations.
