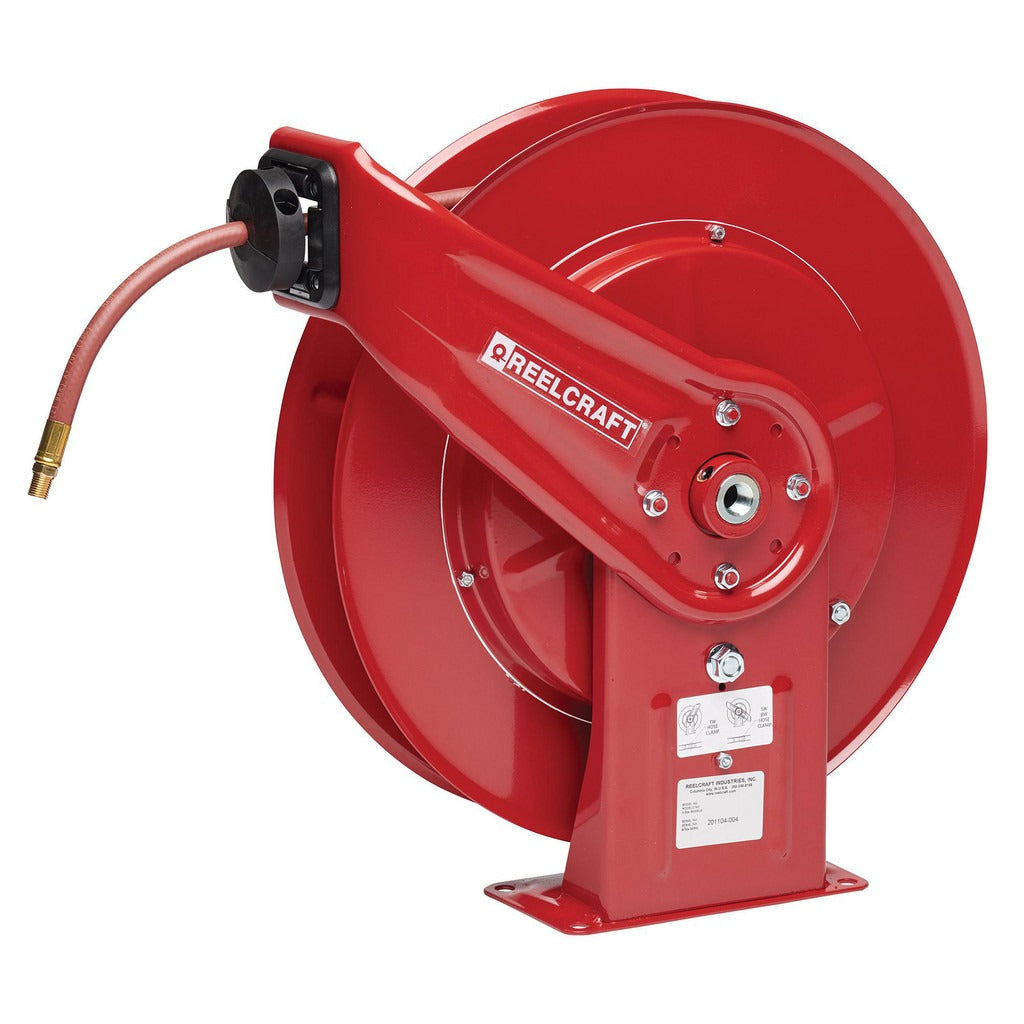

Reelcraft 7850 Olp Spring Retractable Hose Reel 50 Ft

Product Description

The REELCRAFT 7850 OLP is a spring-retractable hose reel that ships complete with a 50-foot hose. It is designed for air and water service in demanding trade and light industrial environments. The reel draws on a spring-drive retraction mechanism that automatically rewinds the hose after each use, reducing trip hazards and extending hose life. The inlet is 1/2 inch FNPTF, and the hose has a 1/2 inch inside diameter rated to 300 psi maximum working pressure. At 51 pounds, it is a solid, shop-grade unit suited for permanent wall or ceiling mounting. HVAC technicians, plumbers, and general contractors are the primary installers.

This reel is well-suited for compressed air drops in mechanical rooms, service bays, and job-site shops, as well as water supply lines in wash-down or equipment-cooling applications. The 7850 OLP belongs to the REELCRAFT 7000 Series, a line built for continuous-duty air and water service. The 50-foot hose length gives adequate reach for most single-bay or single-room layouts without requiring a hose extension.

Key Features

• Spring-retractable drive automatically rewinds hose after use
• 50-foot hose included — no separate hose purchase required
• 1/2 inch inside diameter hose rated to 300 psi maximum working pressure
• 1/2 inch FNPTF inlet for direct connection to standard air or water supply lines
• Dual-service rating for both air and water applications
• 7000 Series construction sized for permanent shop or facility installation

Compatibility

Designed for air and water service lines with a 1/2 inch FNPTF supply connection. Suitable for use in any facility where the supply pressure does not exceed 300 psi.

Installation Notes

Installation is typically performed by a licensed plumber, pipefitter, or qualified mechanical contractor. Shut off the compressed air or water supply and depressurize the line before making any connections. Use thread sealant rated for the intended service medium on all NPTF connections. Mount the reel to a structural wall or ceiling member capable of supporting the combined weight of the unit and a fully loaded hose under dynamic retraction loads.
